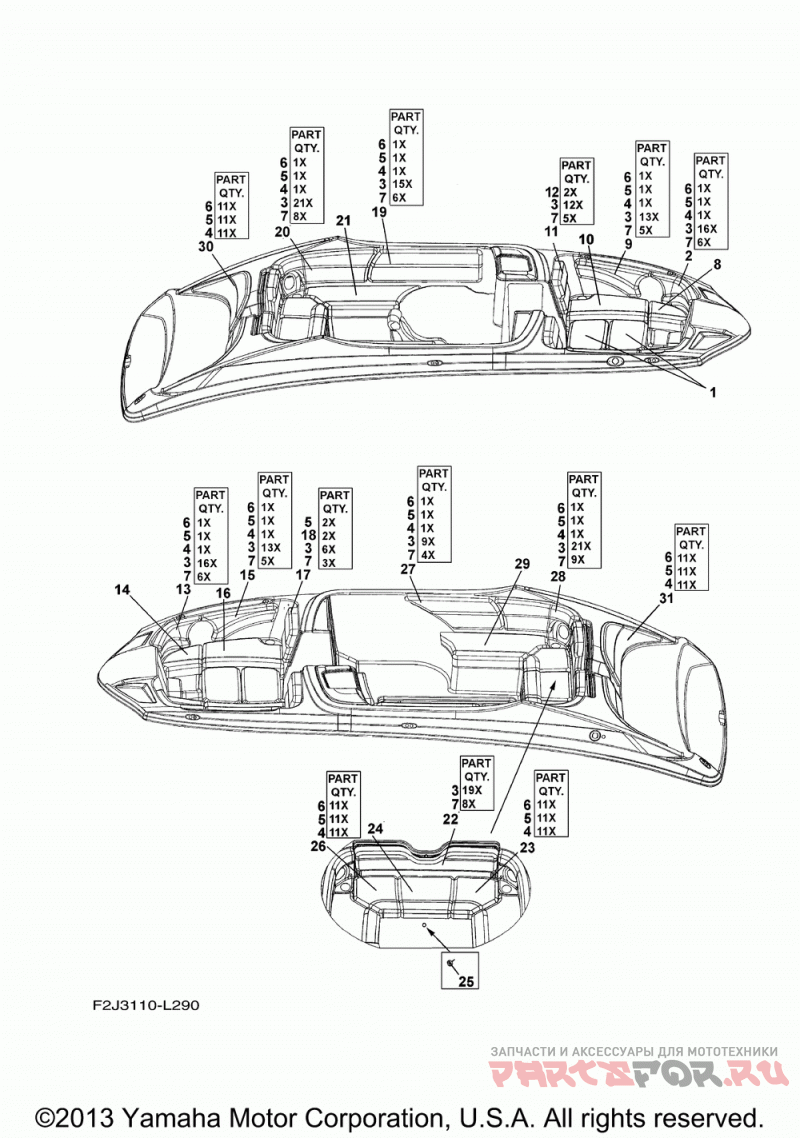

Сидения

Yamaha 212SS XAT1800CL

Yamaha
#oem кодцена
1
F2J-U372F-01-00
Cushion 5
2
F2J-U35B3-00-00
Backrest, Fore 3
3
90167-08S10-00
Screw, #8 X 5/8" Un
4
90204-14S00-00
Washer, 1/4" Lock Un
5
90209-14SA3-00
Washer, Fender Un
6
90170-14S00-00
Nut, 1/4-20 Un
7
F1C-U5195-00-00
Clip, 1 Un
8
F2J-U35A3-01-00
Cushion, Fore 3
9
F2J-U35B1-00-00
Backrest Front, Po
10
F2J-U35A1-01-00
Cushion, Fore 1
11
F2J-U3796-00-00
Back Rest 3
12
90167-08SA8-00
Шуруп
13
F2J-U35B4-00-00
Back Rest, Fore 4
14
F2J-U35A4-01-00
Cushion, Fore 4
15
F2J-U35B2-00-00
Backrest Front, St
16
F2J-U35A2-01-00
Cushion Seat, Front
17
F2J-U3798-00-00
Back Rest, 4
18
90175-14SA2-00
Гайка
19
F2J-U36A1-00-00
Мягкая набивка
20
F2J-U3791-00-00
Back Rest 1
21
F2J-U371D-11-00
Cushion 1
22
F2J-U3766-00-00
Backrest 1
23
F2J-U372D-01-00
Cushion, 3
24
F2J-U3724-00-00
Cushion Seat, Rear
25
F1C-U5192-00-00
Snap , Carpet
26
F2J-U372E-01-00
Cushion 4
27
F2J-U36A2-00-00
Площадка
28
F2J-U3795-00-00
Backrest 2
29
F2J-U371E-01-00
Cushion 2
30
F2J-U521C-00-00
Мягкая набивка
31
F2J-U521D-00-00
Площадка
