Крепежные элементы

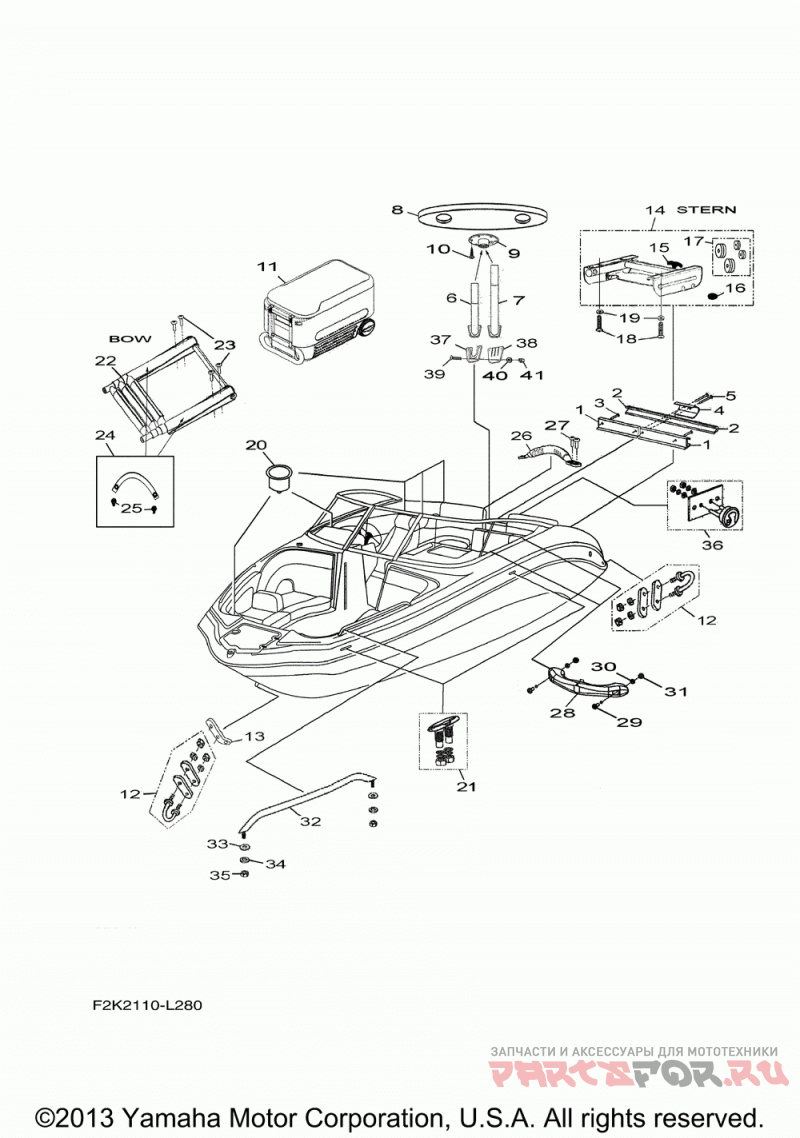

Yamaha 212SS XAT1800CL

Yamaha
#oem кодцена
1
F1C-U2557-10-00
Gunwale (black 18.33
2
F2J-U2519-00-00
Inner, Gunwale (blac
3
90161-10S20-00
Screw, #10x1 1/4 Un
4
F0R-U2518-00-00
Cover R Rail Joint
5
90162-10S32-00
Screw, #10 X 2"
6
F2D-U4814-00-00
Stanchion, Table 1
7
F2D-U4814-10-00
Stanchion, Table 1
8
F1U-U4811-00-00
Table
9
F2D-U4826-00-00
Brkt., Table 2
10
90169-10SA1-00
Screw, #10 X 3/4"
11
F2D-U4360-00-00
Ice Box Comp.
12
GP1-U1624-00-00
Boweye 1
13
F1C-U1794-00-00
Anchor Rope Retainer
14
F2D-U2425-00-00
Ladder, Transom
15
F1C-U5191-00-00
Band, Boarding Ladde
16
F1C-U3768-00-00
Cushion, Rubber
17
F1C-U2155-00-00
Cap, Ladder
18
90101-08802-00
Болт
19
9299R-08600-00
Washer, Plate (10 Per Pack)
20
F2A-U5633-10-00
Holder, Drink (black
21
F1T-U1616-11-00
Кляммер
22
F2D-U278A-00-00
Ladder, Step Assy
23
90157-14S20-00
Screw, 1/4-20 X 1-1/4
24
F2D-U1543-00-00
Eye Strap
25
F1C-U5192-00-00
Snap , Carpet
26
F1C-U1552-01-00
Руль
27
90167-08S12-00
Screw, #8 X 3/4" (5 Per Pack)
28
F0R-U271B-00-00
Grip, Hand
29
90157-14S20-00
Screw, 1/4-20 X 1-1/4
30
90209-14SA2-00
Washer, Fender (1/4"
31
90185-14S00-00
Nut, 1/4-20
32
F3H-U2767-00-00
Hand Rail
33
90201-099U1-00
Шайба
34
90204-15S00-00
Washer, 5/16" Splitlo
35
90170-15S00-00
Гайка
36
F1T-U1629-00-00
Ski Tows
37
F2D-U4825-00-00
Brckt Tbl, Brush Fini
38
F2D-U471E-10-00
Распорная втулка 1
39
90151-14S24-00
Шуруп
40
90201-14S00-00
Washer, 1/4" Flat
41
90185-14S00-00
Nut, 1/4-20
