Сидения

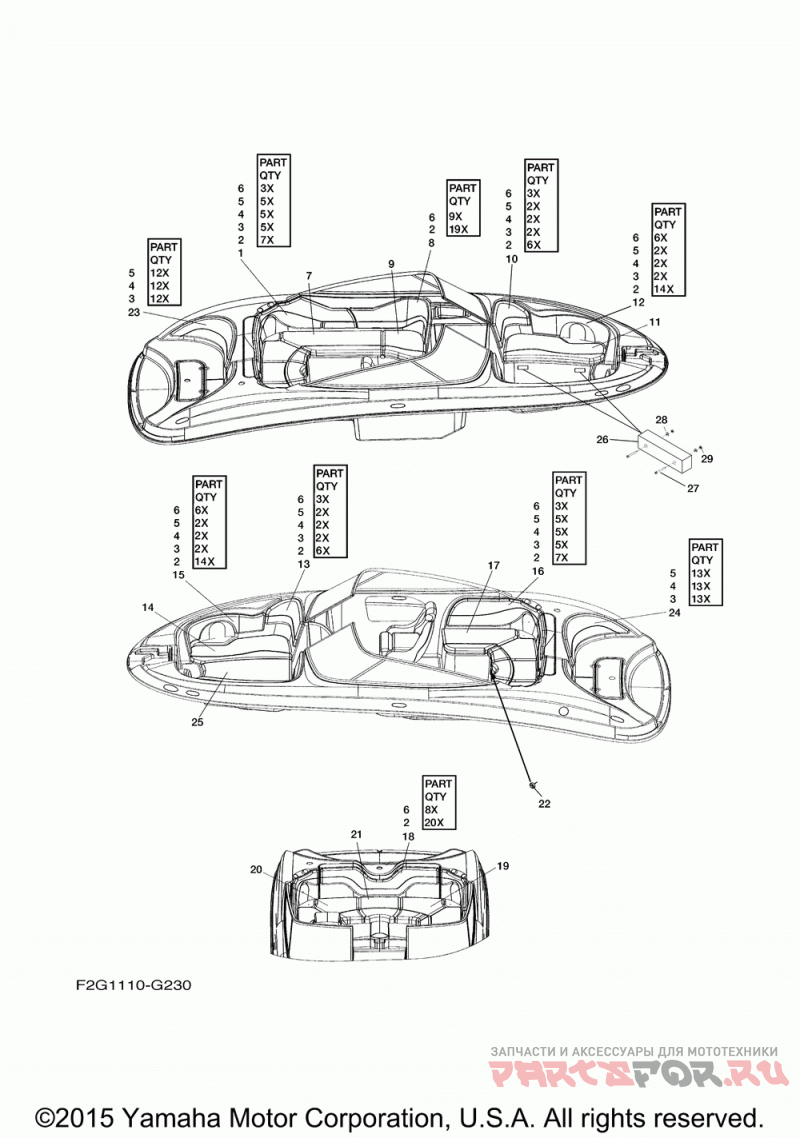

Yamaha 212X FAT1100BLJ/FAT1100ALJ

Yamaha
#oem кодцена
1
F2G-U3796-20-00
Back Rest 3
2
90167-08S10-00
Screw, #8 X 5/8"
3
90209-14SA3-00
Washer, Fender
4
90204-14S00-00
Washer, 1/4" Lock
5
90170-14S00-00
Nut, 1/4-20
6
F1C-U5195-00-00
Clip, 1
7
F2G-U372D-20-00
Cushion, 3
8
F2G-U3798-20-00
Back Rest, 4
9
F2G-U375F-20-00
Cushion 4
10
F2G-U35B1-20-00
Backrest Front, Po
11
F2G-U35A1-20-00
Cushion, Fore 1
12
F2G-U35B3-20-00
Backrest, Fore 3
13
F2G-U35B2-20-00
Backrest Front, St
14
F2G-U35A2-20-00
Cushion Seat, Fron
15
F2G-U35B4-20-00
Back Rest, Fore 4
16
F2G-U3795-20-00
Backrest 2
17
F2G-U371E-20-00
Cushion 2
18
F2G-U3766-20-00
Backrest 1
19
F2G-U372E-20-00
Cushion 4
20
F2G-U372F-20-00
Cushion 5
21
F2G-U3724-20-00
Cushion Seat, Rear
22
F1C-U5192-00-00
Snap , Carpet
23
F2G-U521E-20-00
Pad 3
24
F2G-U521F-20-00
Pad 4
25
F2G-U35A3-00-00
Cushion, Fore 3
26
F1C-U3748-11-00
Кронштейн
27
90152-10S28-00
Шуруп
28
90201-10S00-00
Washer, #10 Flat (5 Per Pack)
29
90185-10S00-00
Гайка
