Электрика 3 для катеров Yamaha 212X FAT1100BJ/FAT1100AJ (2010)

Москва и регионы России

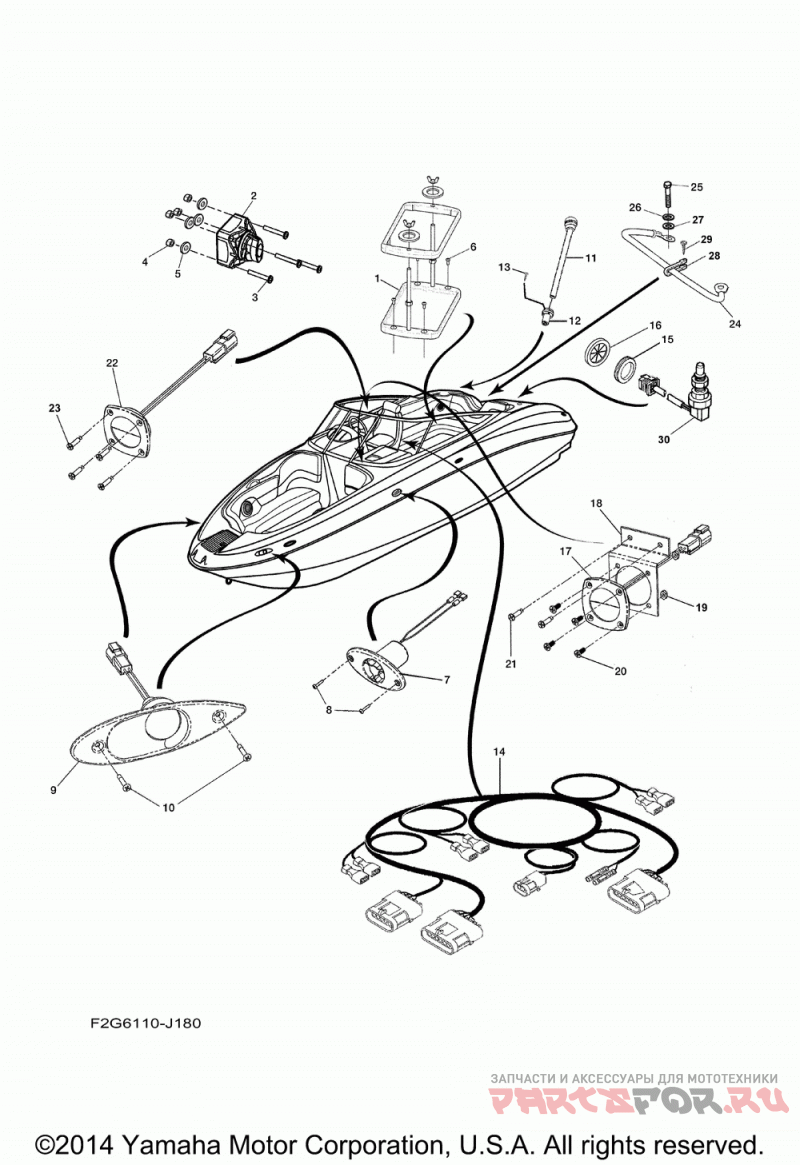

Электрика 3

Yamaha 212X FAT1100BJ/FAT1100AJ

Электрика 3

#

oem код

название

цена

1

F2D-U8210-00-00

Battery Case Assy

Battery Case Assy

2

F2G-U8314-00-00

Switch, Battery

Switch, Battery

3

Винт

Винт

4

Nut, 8-32 Nylox

Nut, 8-32 Nylox

5

Washer, #8 Flat (10 Per Pack)

Washer, #8 Flat (10 Per Pack)

6

Screw, #10 X 3/4"

Screw, #10 X 3/4"

7

F1T-U8304-10-00

Single Horn Assy (wh

Single Horn Assy (wh

8

Шуруп

Шуруп

9

F1T-U813A-00-00

Bow Light Set

Bow Light Set

10

Screw, #8x3/4

Screw, #8x3/4

11

F0R-U8150-10-00

Stern Light Assy

Stern Light Assy

12

F1C-U8147-10-00

Патрон

Патрон

13

Screw, #8 X 3/4" (5 Per Pack)

Screw, #8 X 3/4" (5 Per Pack)

14

F2G-U827L-10-00

Wire Harness 9

Wire Harness 9

15

F1C-U136D-10-00

Уплотнитель резиновый

Уплотнитель резиновый

16

F1C-U1365-00-00

Уплотнитель резиновый

Уплотнитель резиновый

17

F1C-U8124-10-00

Light, Room 1

Light, Room 1

18

F1T-U8571-00-00

Кронштейн

Кронштейн

19

Nut, 8-32 Nylox

Nut, 8-32 Nylox

20

Винт

Винт

21

Screw, Bracket

Screw, Bracket

22

F1C-U8124-10-00

Light, Room 1

Light, Room 1

23

Screw, #6 X 3/4 Pfh

Screw, #6 X 3/4 Pfh

24

F0R-U827J-00-00

Wire Harness 7

Wire Harness 7

25

Болт

Болт

26

Гровер

Гровер

27

Washer, Plate (10 Per Pack)

Washer, Plate (10 Per Pack)

28

Зажим

Зажим

29

Screw, #8 X 3/4" (5 Per Pack)

Screw, #8 X 3/4" (5 Per Pack)

30

F1C-6834B-00-00

Реле

Реле
