Электрика 4

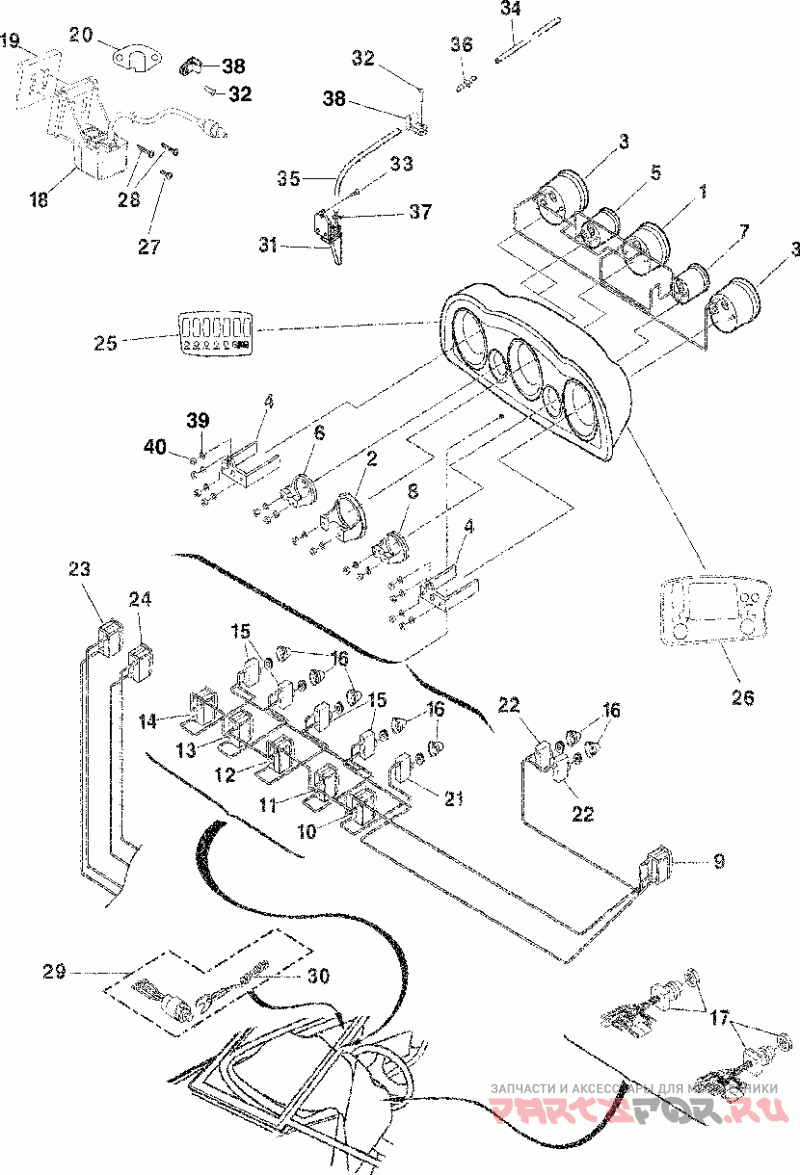

Yamaha SX230-SRT1000AE

Yamaha
#oem кодцена
1
F1C-U822N-00-00
Speedometer
2
F0R-U8238-00-00
Крепление
3
F1C-U8245-30-00
Tachometer
5
F1C-U8241-20-00
Обратный клапан
6
GU1-U8238-10-00
Крепление
7
F1C-U8K12-12-00
Depth Finder Gauge
9
F1C-U8022-00-00
Switch Assy, Blowe
10
F1C-U8012-00-00
Bilge Pump Switch As
11
F1C-U8353-00-00
Switch, Control
12
F1C-U8026-00-00
R.light Sw.assy 00
13
F1C-U8029-00-00
B.stern Light Sw.
14
F1C-U8011-00-00
Horn Switch Assy
15
F1C-U8348-00-00
Breaker (5 Amp)
16
F0R-U8188-10-00
Circuit Breaker Cove
17
F1C-U8036-00-00
Key Switch Assy (mat
18
F1C-U8K1W-10-00
Датчик
19
F1C-U1525-10-00
Shim, Transducer
20
F1C-U826D-00-00
Cover, Transducer
21
F1C-U8348-10-00
Breaker (3 Amp)
22
F1C-U8348-20-00
Breaker (4 Amp)
23
F1C-U8311-01-00
Switch, Push (no Wak Stbd
24
F1C-U8311-11-00
Switch, Push (no Wak Port
25
F1C-U8322-20-00
Panel, Switch(sheffie Sheffield Gray
26
F1C-U8347-20-00
Panel, Breaker(sheffi Sheffield Gray
27
90167-10S14-00
Шуруп
28
90161-10S20-00
Screw, #10x1 1/4
29
F1C-6834C-00-00
Lanyard, Stop Switch
30
682-82556-00-00
Шнур аварийного выключения двигателя
31
GP1-U8K31-00-00
Sensor, Speedo
32
90167-08S10-00
Screw, #8 X 5/8"
33
90167-08S12-00
Screw, #8 X 3/4"
34
F1C-U773D-00-00
Tube, Speedo
35
F1C-U773D-10-00
Tube, Speedo Extensi
36
GP1-U7857-01-00
Тройник
37
90601-200U1-00
Band Hose 50 Ymus
38
GP1-U8368-00-00
Зажим
39
90204-08S00-00
Washer, Lock (#8)
40
90170-08SA1-00
Nut (8-32)
