Сидения

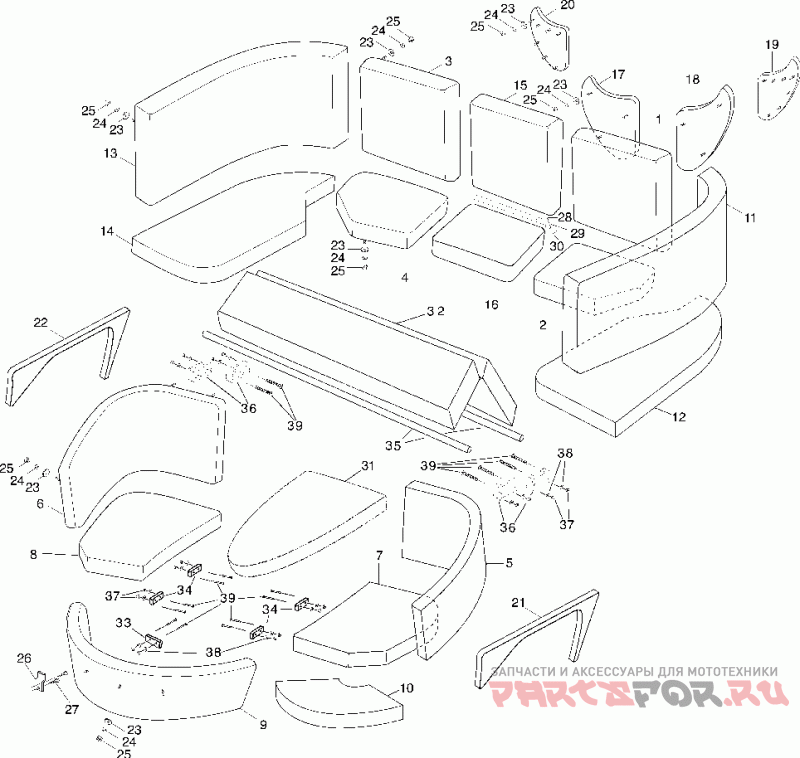

Yamaha SX230 High Output-SRT1100D

Yamaha
#oem кодцена
1
F1U-U3796-00-00
Back Rest 3
2
F1U-U372D-01-00
Cushion, 3
3
F1U-U3798-00-00
Back Rest, 4
4
F1U-U372E-01-00
Cushion 4
5
F1U-U35B1-00-00
Backrest Front, Ri
6
F1U-U35B2-00-00
Backrest Front, Po
7
F1U-U35A1-01-00
Cushion, Fore 1
8
F1U-U35A2-00-00
Cushion Seat, Fron
10
F1U-U35A3-10-00
Cushion Fore 3
11
F1U-U3791-01-00
Back Rest 1
12
F1U-U371D-01-00
Cushion 1
13
F1U-U3795-01-00
Back Rest 2
14
F1U-U371E-01-00
Cushion 2
15
F1U-U3766-00-00
Backrest 1
16
F1U-U3724-00-00
Cushion Seat, Rear
17
F1U-U521C-00-00
Pad, 1
18
F1U-U521D-00-00
Pad, 2
19
F1U-U521E-01-00
Pad 3
20
F1U-U521F-01-00
Pad 4
21
F1C-U36A1-30-00
Мягкая набивка
22
F1C-U36A2-30-00
Площадка
23
90209-14SA3-00
Washer, Fender
25
90204-14S00-00
Washer, 1/4" Lo
26
F1C-U5195-00-00
Clip, 1
27
90167-08S10-00
Screw, #8 X 5/8"
28
90149-10SD5-00
Винт
29
90209-10SB1-00
Шайба
30
90185-10S00-00
Гайка
31
F1C-U375F-02-00
Cushion 4, Bow Fille
32
F1C-U372F-10-00
Cushion 5
33
F1C-U3748-20-00
Bracket, Seat Fitt
34
F1C-U3748-10-00
Bracket, Seat Fitt
35
F1C-U491F-00-00
Pipe Pole
36
F1C-U3748-30-00
Bracket, Seat Fitt
38
90201-10S00-00
Washer, #10 Flat
39
90152-10S28-00
Шуруп
40
F1C-U5987-00-00
Bag Not Shown
