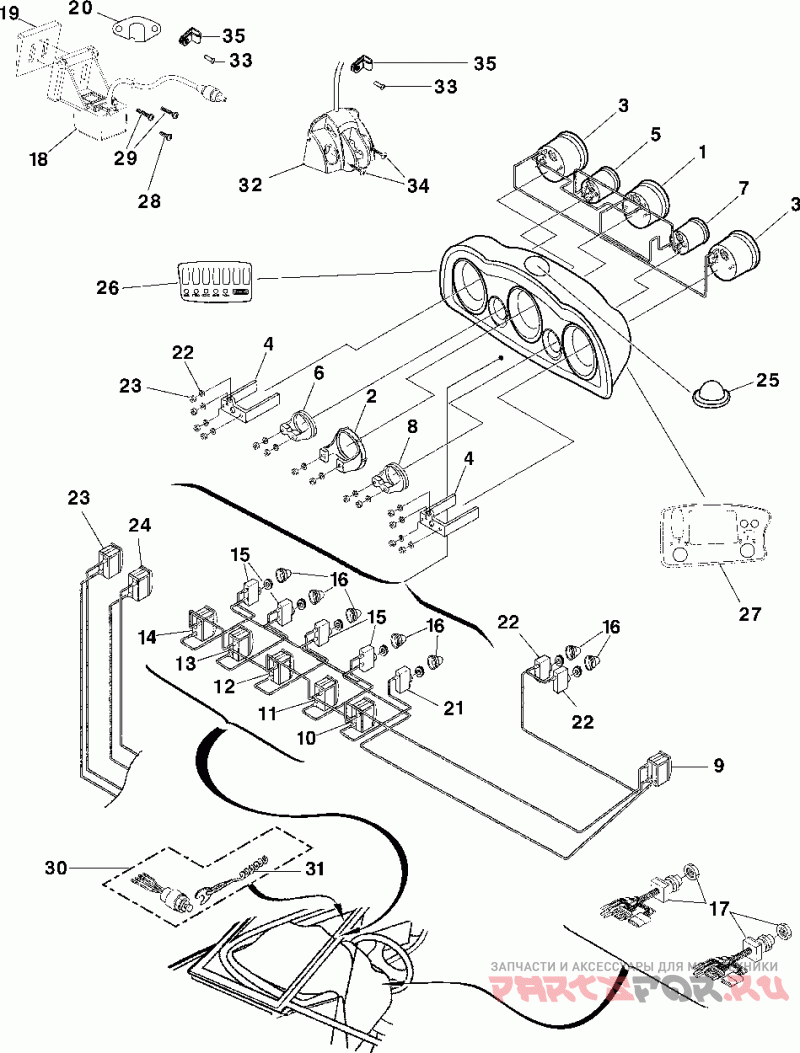

Электрика 4

Yamaha AR230 High Output-SRT1000AD

Yamaha
#oem кодцена
1
F1C-U822N-00-00
Speedometer
2
F0R-U8238-00-00
Крепление
3
F1C-U8245-20-00
Tachometer
5
F1C-U8241-10-00
Guage, Fuel
6
GU1-U8238-10-00
Крепление
7
F1C-U8K12-12-00
Depth Finder Gauge
9
F1C-U8022-00-00
Switch Assy, Blowe
10
F1C-U8012-00-00
Bilge Pump Switch As
11
F1C-U8353-00-00
Switch, Control Stereo
12
F1C-U8026-00-00
R.light Sw.assy 00
13
F1C-U8029-00-00
B.stern Light Sw.
14
F1C-U8011-00-00
Horn Switch Assy
15
F1C-U8348-00-00
Breaker (5 Amp) 5 Amp
16
F0R-U8188-10-00
Circuit Breaker Cove
17
F1C-U8036-00-00
Key Switch Assy (mat For Same Key
18
F1C-U8348-10-00
Breaker (3 Amp) 3 Amp
19
F1C-U8348-20-00
Breaker (4 Amp) 4 Amp
20
F1C-U8311-01-00
Switch, Push (no Wak Stbd No Wake
21
F1C-U8311-11-00
Switch, Push (no Wak Port No Wake
22
90204-08S00-00
Washer, Lock (#8)
23
90170-08SA1-00
Nut (8-32)
24
6K1-82575-00-00
Emergency Safetysw
25
682-82556-00-00
Шнур аварийного выключения двигателя
26
GP1-U8K31-00-00
Sensor, Speedo
27
90601-200U1-00
Band Hose 50
28
90167-08S12-00
Screw, #8 X 3/4"
29
GP1-U773D-00-00
Патрубок
30
GP1-U8368-00-00
Зажим
31
90167-08S10-00
Screw, #8 X 5/8"
32
F1C-U8K1W-00-00
Датчик
33
90167-10S14-00
Шуруп
34
90161-10S20-00
Screw, #10x1 1/4
