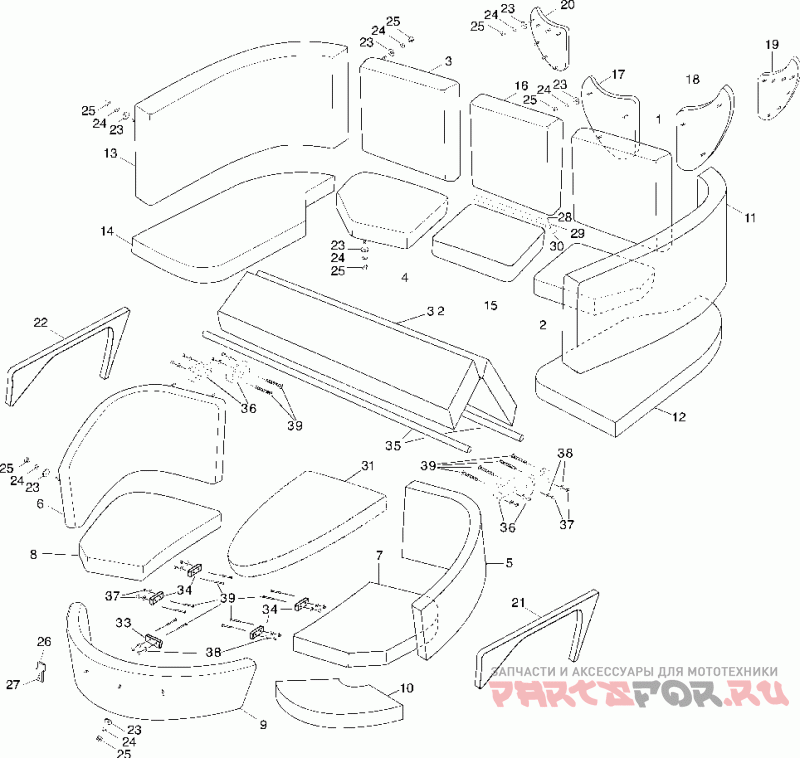

Сидения

Yamaha AR230-SRT1000B-C/SRT1000BC-

Yamaha
#oem кодцена
1
F1C-U3796-20-00
Back Rest 3
2
F1C-U372D-01-00
Cushion, 3
3
F1C-U3798-20-00
Back Rest, 4
4
F1C-U372E-01-00
Cushion, 4
5
F1C-U35B1-20-00
Backrest Front, Ri
6
F1C-U35B2-20-00
Backrest Front, Po
7
F1C-U35A1-01-00
Cushion 1
8
F1C-U35A2-01-00
Cushion 2
9
F1C-U35B3-20-00
Backrest, Fore 3
10
F1C-U35A3-01-00
Cushion, Bow Filler
11
F1C-U3791-20-00
Back Rest 1
12
F1C-U371D-01-00
Cushion 1
13
F1C-U3795-20-00
Backrest 2
14
F1C-U371E-01-00
Cushion 2
15
F1C-U3724-01-00
Cushion, Aft Back Ct
16
F1C-U3766-20-00
Cushion, Ctr Aft Back
17
F1C-U521C-20-00
Pad 1 (left)
18
F1C-U521D-20-00
Pad 2 (right)
19
F1C-U521E-20-00
Pad 3
20
F1C-U521F-20-00
Pad 4
21
F1C-U36A1-21-00
Мягкая набивка
22
F1C-U36A2-21-00
Площадка
23
90209-14SA3-00
Washer, Fender
25
90204-14S00-00
Washer, 1/4" Lo
26
F1C-U5195-00-00
Clip, 1
27
90167-08S10-00
Screw, #8 X 5/8"
28
90149-10SD5-00
Винт
29
90209-10SB1-00
Шайба
30
90185-10S00-00
Гайка
31
F1C-U375F-02-00
Cushion 4, Bow Fille
32
F1C-U372F-10-00
Cushion 5
33
F1C-U3748-20-00
Bracket, Seat Fitt
34
F1C-U3748-10-00
Bracket, Seat Fitt
35
F1C-U491F-00-00
Pipe Pole
36
F1C-U3748-30-00
Bracket, Seat Fitt
38
90201-10S00-00
Washer, #10 Flat
39
90152-10S28-00
Шуруп
40
F1C-U5987-00-00
Bag Not Shown
