Сидения

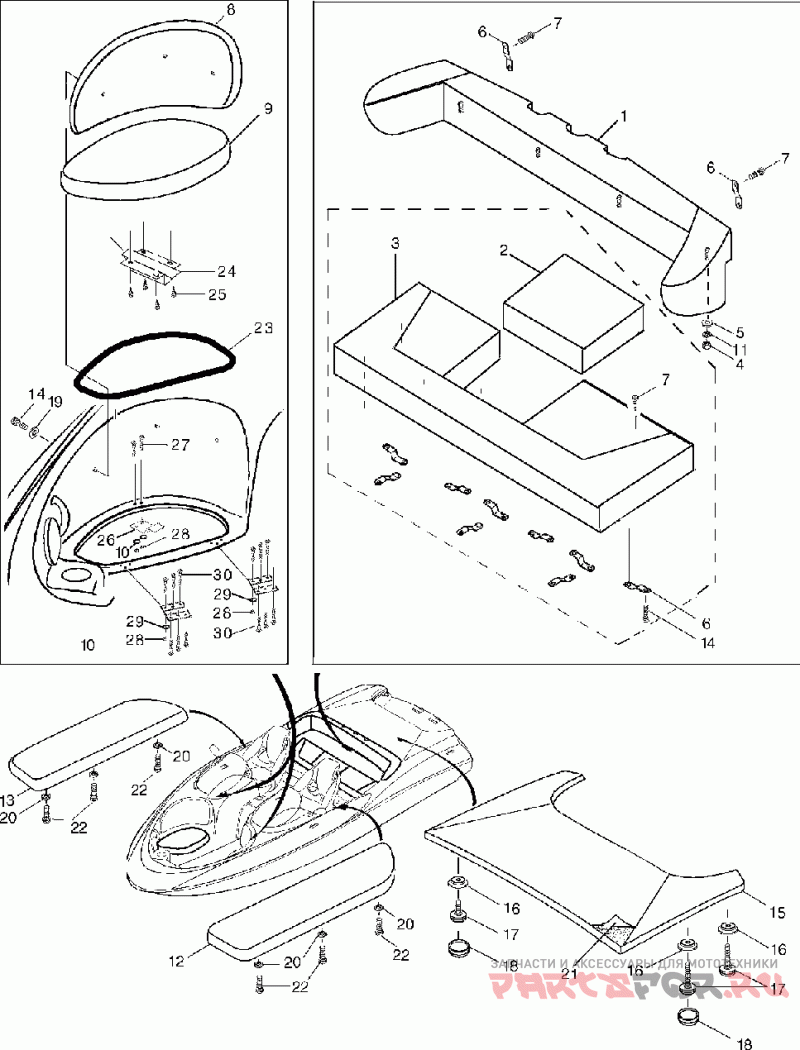

Yamaha AR210-LST1200D-C

Yamaha
#oem кодцена
1
F0R-U3766-70-00
Backrest 1 Electric Red
2
F0R-U3724-40-00
Cushion, Back Seat
3
F0R-U3765-70-00
Seat Base Electric Red
4
90170-14S00-00
Nut, 1/4-20
5
90209-14SA3-00
Washer, Fender
6
GP1-U3748-00-00
Bracket, Seat (9114)
7
90169-10SA1-00
Screw, #10 X 3/4&quo
8
F0R-U35B1-70-00
Backrest Front, Ri Electric Red
8
F0R-U35B2-70-00
Backrest Front, Po Electric Red
9
F0R-U35A1-70-00
Cushion, Fore 1 Electric Red
9
F0R-U35A2-70-00
Cushion Seat, Fron Electric Red
11
90204-14S00-00
Washer, 1/4" Lo
12
F0R-U36A1-70-00
Pad 1 Electric Red Port
13
F0R-U36A2-70-00
Pad 2 Electric Red Stbd
14
90149-14SA5-00
Screw, 1/4-20 X 1
15
F0R-U521C-70-00
Pad, Sundeck (red) Electric Red
16
F0C-U5248-00-00
Шайба
17
90149-14SA3-00
Screw 1/4-20x1 1/2
17
90149-14SA7-00
Screw, 1/4-20 X 3
18
F0R-U514F-00-00
Cap (white)
20
90209-14SA2-00
Washer, Fender (1/4&
22
90149-14SB3-00
Screw, 1/4-20 X 3/4
23
F0R-U266J-10-00
Packing 10
24
F0R-U284D-00-00
Lock, Hatch
25
90157-08S12-00
Винт
26
F0R-U3714-01-00
Крепеж
27
90157-10S12-00
Screw, 10-24x3/4&quo
28
90185-10S00-00
Гайка
29
90201-10S00-00
Washer, #10 Flat
30
90151-10S16-00
Screw, 10-24 X 1
