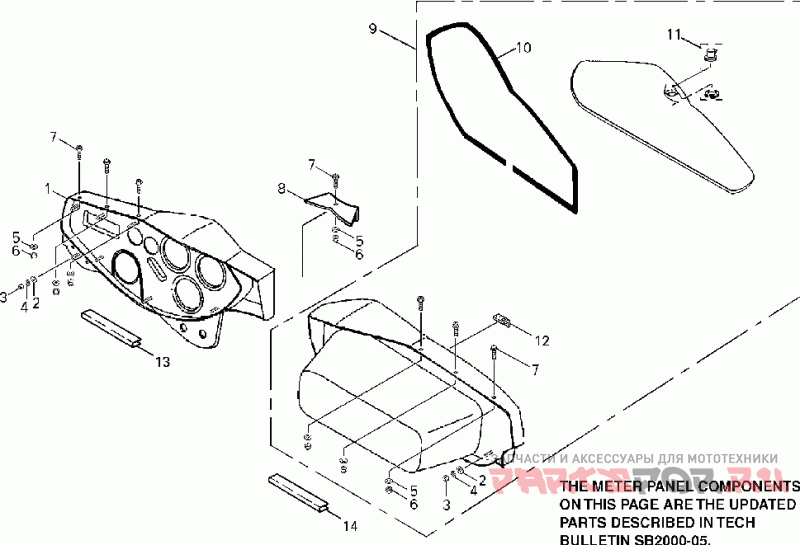

Рулевой отсек
Yamaha XR1800-XRT1200Y
| # | oem код | название | цена |
|---|---|---|---|
1 | F0C-U8223-01-00 Panel Meter, Twin | Panel Meter, Twin | |
2 | 90209-10SB1-00 Шайба | Шайба | |
3 | 90204-10S00-00 Washer, Lock (#10) | Washer, Lock (#10) | |
4 | 90170-10S00-00 Гайка | Гайка | |
5 | 90201-14S00-00 Шайба | Шайба | |
6 | 90185-10S00-00 Гайка | Гайка | |
8 | F0C-U5554-01-00 Cover, Center | Cover, Center | |
9 | F0C-U1708-01-00 Gl0ve Box Hatch Assy | Gl0ve Box Hatch Assy | |
10 | F0C-U266C-00-00 Packing 4, Glove Box | Packing 4, Glove Box | |
13 | F0C-U5162-00-00 Trim (exhaust Hose) Not Shown | Trim (exhaust Hose) Not Shown | |
14 | F0C-U2713-31-00 Trim (4.0") Not Shown (under Glove Box) | Trim (4.0") Not Shown (under Glove Box) |
