Сидения

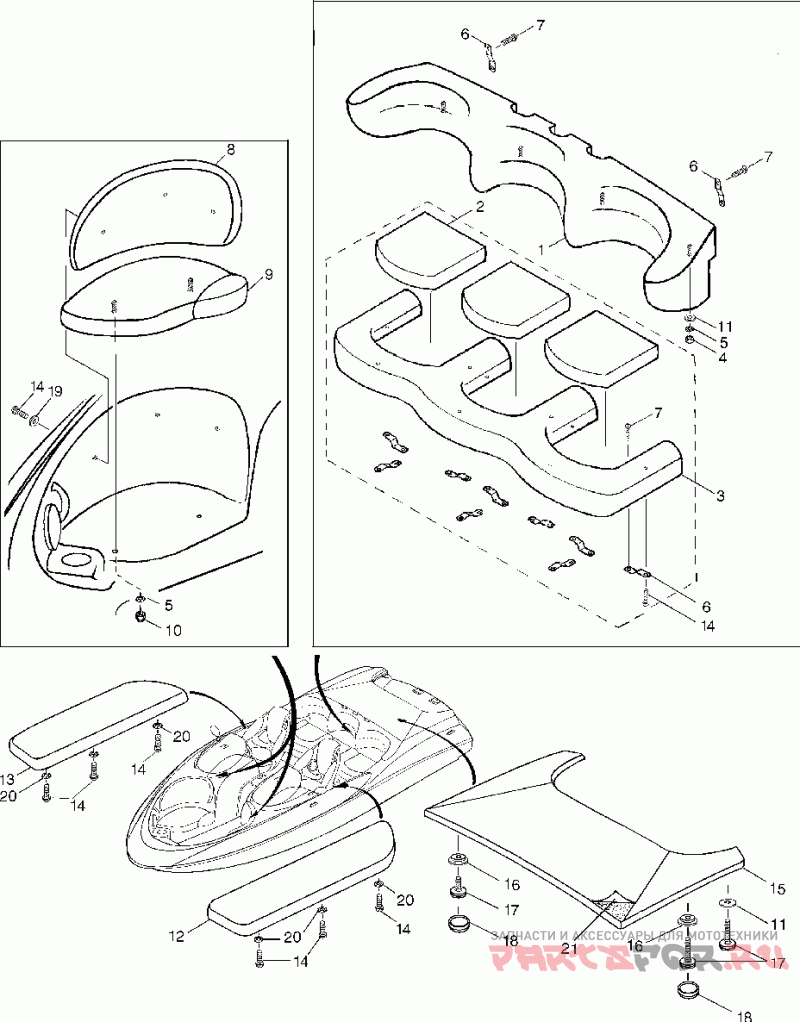

Yamaha LS2000-LST1200Y

Yamaha
#oem кодцена
1
F0R-U3766-10-00
Деталь Backrest 1 River Rock
2
F0K-U3724-01-00
Деталь Cushion, Back Seat
3
F0R-U3765-10-00
Деталь Seat, Base
4
90170-14S00-00
Деталь Nut, 1/4-20
5
90209-14SA3-00
Деталь Washer, Fender
6
GP1-U3748-00-00
Деталь Bracket, Seat (9114)
7
90169-10SA1-00
Деталь Screw, #10 X 3/4&quo
8
F0R-U35B2-10-00
Деталь Backrest Front, Star River Rock
8
F0R-U35B1-10-00
Деталь Backrest Front, Port River Rock
9
F0R-U35A1-10-00
Деталь Cushion Seat, Front River Rock
9
F0R-U35A2-10-00
Деталь Cushion Seat, Front River Rock
11
90204-14S00-00
Деталь Washer, 1/4" Lo
12
F0R-U36A1-10-00
Деталь Pad, Port Port River Rock
13
F0R-U36A2-10-00
Деталь Pad, Starboard Stbd River Rock
14
90149-14SA5-00
Деталь Screw, 1/4-20 X 1
15
F0R-U521C-10-00
Деталь Pad, Sundeck (river River Rock
16
F0C-U5248-00-00
Шайба
17
90149-14SA3-00
Деталь Screw 1/4-20x1 1/2
17
90149-14SA7-00
Деталь Screw, 1/4-20 X 3
18
F0R-U514F-00-00
Деталь Cap (white)
20
90209-14SA2-00
Деталь Washer, Fender (1/4&
