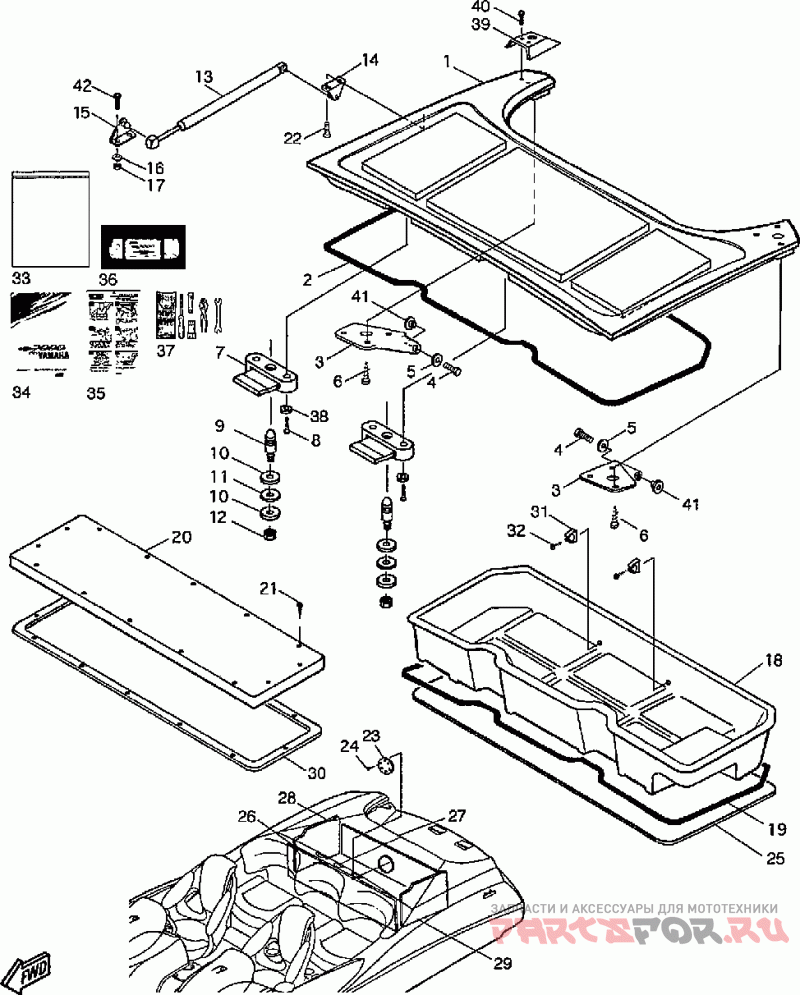

Deck hatch 1

Yamaha LS2000-LST1200X

Yamaha
#oem кодцена
1
F0R-U516B-00-00
Engine Hatch W/o Cushions
2
F0R-U266B-11-00
Packing 3 (172"
3
F0R-U2819-05-00
Hinge, 2 (stbd) Stbd
3
F0R-U2816-05-00
Hinge, 1 (port) Port
4
90101-16S24-00
Bolt, 3/8-16x1 1/2
5
90201-19SA1-00
Шайба
6
90152-14S16-00
Screw, 1/4-20x1
7
GJ3-63850-03-00
Seat, Lock Assy
8
90157-14S28-00
Screw 1/4-20x1 3/4
9
GP1-U3774-01-00
Штифт
10
90209-17SA5-00
Washer, 7/16x1 1/2
11
GP1-U5194-01-00
Шайба
12
95680-10100-00
Nut, M10-1.5 Nylox
13
F0R-U2896-00-00
Support, Hatch
14
F0R-U2899-00-00
Bracket, Top
15
F0R-U2884-00-00
Bracket, Shock "
16
90201-10S00-00
Washer, #10 Flat
17
90185-10S00-00
Гайка
18
F0R-U516J-00-00
Tray, Engine Room
19
F0R-U3262-20-00
Уплотнение
20
F0R-U5131-00-00
Hatch, Tank 1
21
90162-10S24-00
Screw, #10x1 1/2
22
90157-10S12-00
Screw, 10-24x3/4&quo
23
GP1-U7228-00-00
Cover, Inspect 2
24
90161-10S12-00
Screw, #10 X 3/4
25
F0R-U5164-01-00
Sound-proof 1
26
F0R-U5167-01-00
Foam, Sound Bow
27
F0R-U5169-00-00
Soundproof, 5
28
F0R-U5166-00-00
Soundproof, 3
29
F0R-U5165-00-00
Soundproof, 2
31
GP1-U5947-00-00
Clip Pole
32
90167-08S12-00
Screw, #8 X 3/4"
33
EU0-65901-01-00
Bag, Vinyl
38
90201-14S00-00
Шайба
39
F0R-U516W-00-00
Cover, Hinge-port Port
39
F0R-U516X-00-00
Cover, Hinge-stbd Stbd
40
90161-06S12-00
Screw, #6 X 3/4 Pfh
41
F0R-U2821-00-00
Washer, Hinge 1
42
90157-10S24-00
Screw, 10-24 X 1-1/2
