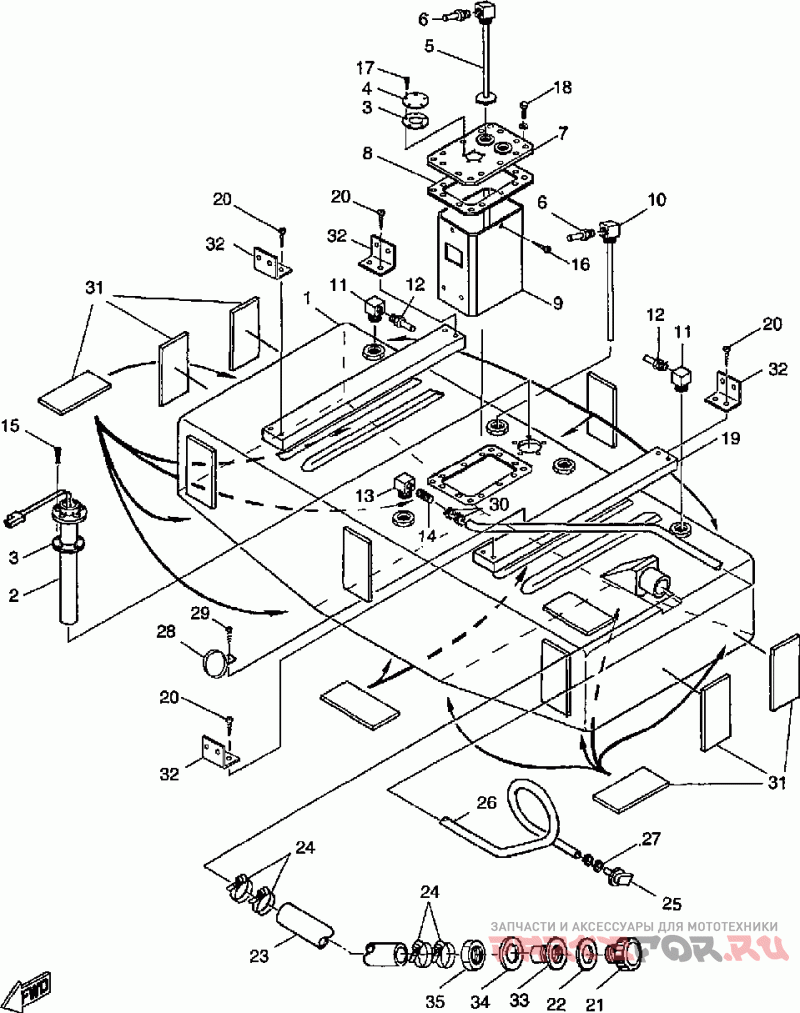

Топливный бак

Yamaha EXCITER 270-EXT1200X

Yamaha
#oem кодцена
3
GP1-U7737-00-00
Packing, Plate
4
GP1-U771K-00-00
Крышка
5
F0R-U7720-00-00
Suction Pipe Assy
8
GP1-U7738-00-00
Packing, Plate 2
11
GP1-U7817-00-00
Elbow 1, Fuel Tank As
12
GP1-U7788-11-00
Ниппель
13
GP1-U7855-00-00
Elbow, Air Vent
14
GP1-U7788-20-00
Nipple, Fuel Tank Ass
15
90157-10S20-00
Screw, 10-24 X 1-1/4
16
90161-08SA1-00
Screw, 8-15 X 3/4
17
90167-10SA1-00
Screw, 10-12x5/8
18
90167-10SA2-00
Screw, 10-12x1 1/4
19
GP1-U7777-00-00
Tank, Support(5433)
20
90169-10SA1-00
Screw, #10 X 3/4&quo
21
GP7-U7831-01-00
Cap, Fuel Filler (wh
22
GP7-U7832-01-00
Прокладка
23
F0U-U7844-00-00
Hose Fuel Filler
24
90601-170UK-00
Band, Hose 70#36, 2.75
25
GP1-U7850-00-00
Air Vent Assy (9204)
26
GP1-U7856-01-00
Hose, Fuel Vent
27
F0R-U7626-01-00
Hose, (5-1/2 X 5)
28
90601-200U4-00
Clamp, Cable ( 8&quo
29
90167-08S12-00
Screw, #8 X 3/4"
31
F2A-U6632-00-00
Накладка
32
GP1-U7778-00-00
Tank Support(4793)
33
GP7-U7833-00-00
Socket (white)
34
GP7-U7834-00-00
Packing Fuel Filler
35
GP7-U783F-00-00
Nut Fuel Filter
