Сидения
Yamaha EXCITER 270-EXT1200X

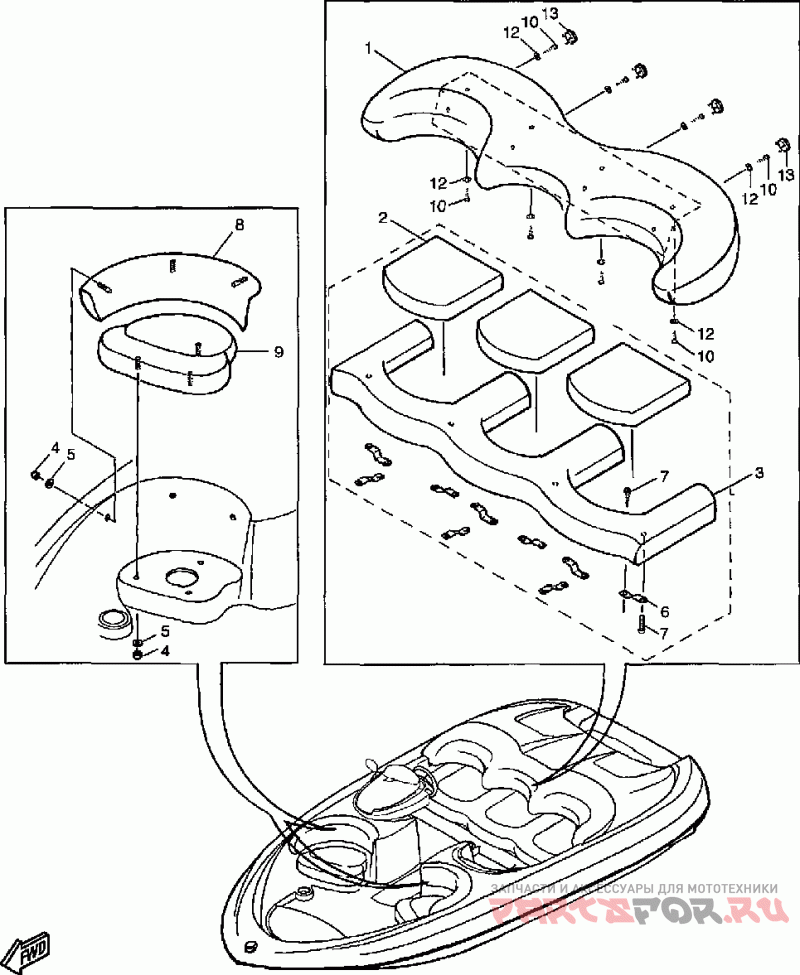

| # | oem код | название | цена |
|---|---|---|---|
1 | F0U-U3766-00-00 Back Rest 1 | Back Rest 1 | |
2 | F0K-U3724-01-00 Cushion, Back Seat | Cushion, Back Seat | |
5 | 90204-14S00-00 Washer, 1/4" Lo | Washer, 1/4" Lo | |
6 | GP1-U3748-00-00 Bracket, Seat (9114) | Bracket, Seat (9114) | |
7 | 90169-10SA1-00 Screw, #10 X 3/4&quo | Screw, #10 X 3/4&quo | |
10 | 90157-14S28-00 Screw 1/4-20x1 3/4 | Screw 1/4-20x1 3/4 | |
11 | 90209-14SA2-00 Washer, Fender (1/4& | Washer, Fender (1/4& | |
12 | 90209-14SA3-00 Washer, Fender | Washer, Fender | |
13 | GP1-U3718-00-00 Заглушка | Заглушка |
