Deck hatch 1 для катеров Yamaha EXCITER 220-EXT1100W (1998)

Москва и регионы России

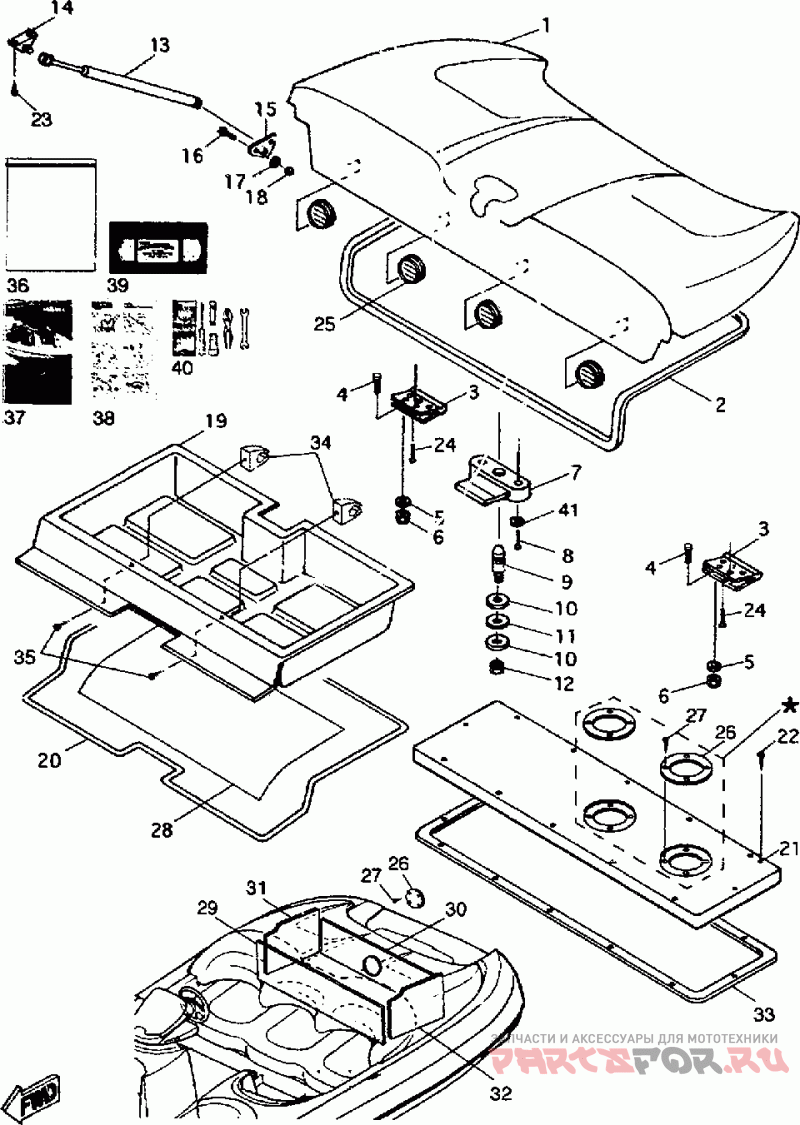

Deck hatch 1

Yamaha EXCITER 220-EXT1100W

Deck hatch 1

#

oem код

название

цена

3

GP1-U2826-01-00

Hinge Eng.hatch

Hinge Eng.hatch

4

Screw, 1/4"-20

Screw, 1/4"-20

5

Washer, Fender (1/4&

Washer, Fender (1/4&

6

Nut, 1/4-20

Nut, 1/4-20

7

GJ3-63850-03-00

Seat, Lock Assy

Seat, Lock Assy

8

Screw 1/4-20x1 3/4

Screw 1/4-20x1 3/4

9

GP1-U3774-01-00

Штифт

Штифт

10

Washer, 7/16x1 1/2

Washer, 7/16x1 1/2

11

GP1-U5194-01-00

Washer, Special Ur Gp1-100450~

Washer, Special Ur Gp1-100450~

12

Nut, M10-1.5 Nylox

Nut, M10-1.5 Nylox

13

GP1-U2896-01-00

Support, Hatch

Support, Hatch

15

GP1-U2899-00-00

Bracket, Hatch Suppor

Bracket, Hatch Suppor

16

Винт

Винт

17

Washer, #10 Flat

Washer, #10 Flat

18

Гайка

Гайка

21

GP1-U5131-01-00

Hatch Tank 1

Hatch Tank 1

22

Screw, #10x1 1/2

Screw, #10x1 1/2

23

Screw, 10-24x3/4&quo

Screw, 10-24x3/4&quo

24

Screw, 1/4-20x1

Screw, 1/4-20x1

25

GP1-U3718-00-00

Заглушка

Заглушка

26

GP1-U7228-00-00

Cover, Inspect 2

Cover, Inspect 2

27

Screw, #10 X 3/4

Screw, #10 X 3/4

31

F0U-U5166-00-00

Soundproof, 3(stbd)

Soundproof, 3(stbd)

34

GP1-U5947-00-00

Clip Pole

Clip Pole

36

EU0-65901-01-00

Bag, Vinyl

Bag, Vinyl

40

EU0-65986-10-00

Комплект инструмента

Комплект инструмента

41

Шайба

Шайба
