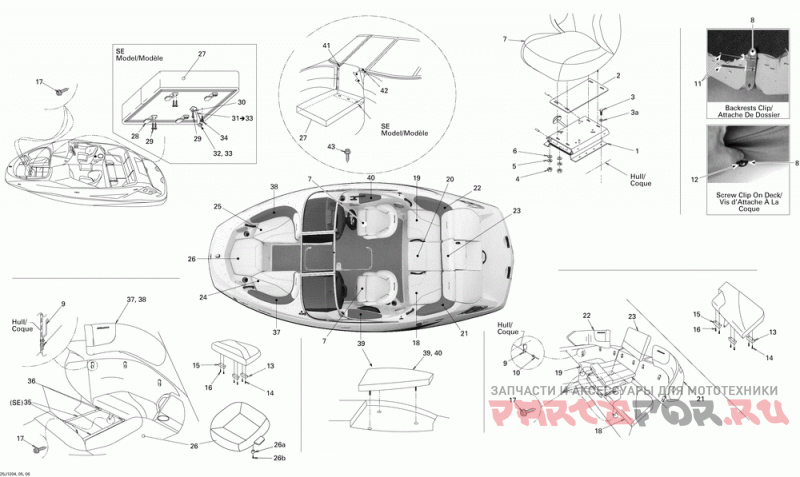

Сидение

Sea-Doo (Bombardier) 180 SP 260

Sea-Doo (Bombardier)
#oem кодцена
1
204614718
Seat Base, Starboard
2
204614717
Seat Base, Port Side
3
207163560
Hex. Screw M6 X 35 (10.000 Per Pack)
3a
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
4
211100026
Hex. Nut 1/4" (5.000 Per Pack)
5
211200025
Rondelle Frein *washer-lock 1/4" (5.000 Per Pack)
6
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
7
269002230
Bucket Seat Ass Y
8
269001696
Seat Support
9
269001695
Seat Support
10
293150043
Pop Rivet 3/16" (5.000 Per Pack)
11
293150029
Pop Rivet 5/32" (10.000 Per Pack)
12
204100030
Phillips Screw #8 X 1/2# (10.000 Per Pack)
13
204611940
Seat Latch
14
204100039
Screw 1/4#-20 X 2# (10.000 Per Pack)
15
204611805
Защёлка
16
204100081
Screw #8 X 1-1/4#
17
202000159
Screw-stud Tapp. 3/8" Ss
18
269002547
Rear Cushion Ass Y, Port Side
19
269002548
Rear Cushion Ass Y, Starboard Side
20
269002549
Rear Cushion Ass Y, Center
21
269002234
Rear Backrest Ass Y, Port Side
22
269002235
Rear Backrest Ass Y, Starboard Side
23
269002236
Rear Backrest Ass Y, Center
24
269002550
Front Cushion Ass Y, Port Side
25
269002551
Front Cushion Ass Y, Starboard Side
26
269002552
Front Cushion Ass Y, Center
26a
293830043
Резиновые стопоры
26b
204100058
Screw-tapp.truss Hd.ph.#8 X 1" (10.000 Per Pack)
27
269002553
Filler Bow Cushion Ass Y
28
204613161
Supp.coussin*bracket-cushion/filler
29
204100073
Screw-pan Hd.#10 X 5/8" Ss
30
204100059
Flat Washer #10 (5.000 Per Pack)
31
269002384
Крепежный Хомут
34
202000159
Screw-stud Tapp. 3/8" Ss
35
204613164
Tube, Stainless
36
204613165
Tube Cap
37
269002241
Backrest Ass Y, Bow Port Side
38
269002242
Backrest Ass Y, Bow Starboard Side
39
269002243
Armrest Cushion Ass Y, Port Side
40
269002245
Armrest Cushion Ass Y, Starboard
41
269002247
Walk-thru Curtain
42
204613515
Snap
43
202000159
Screw-stud Tapp. 3/8" Ss
