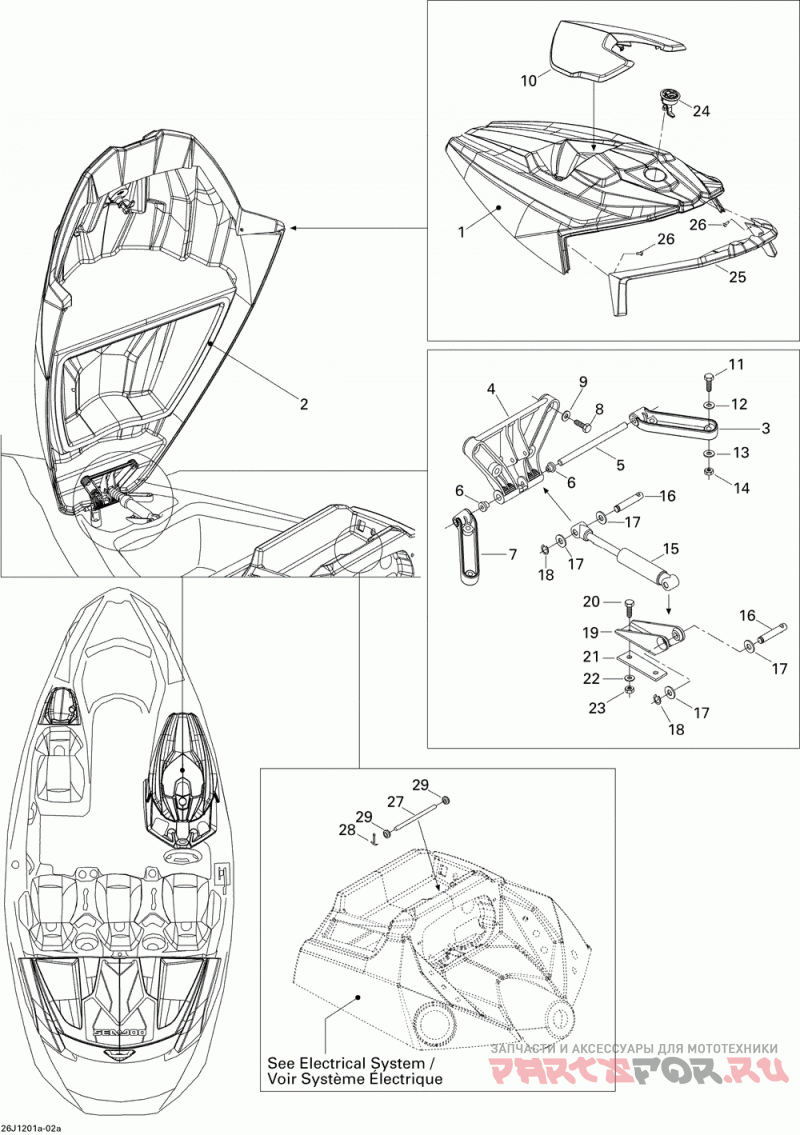

09- storage compartment, front 1

Sea-Doo (Bombardier) 150 Speedster 155

Sea-Doo (Bombardier)
#oem кодцена
1
269501879
Cover-storage Assy. Orange Model
1
269501916
Cover-storage Assy. Green Model
2
293200136
Seal, Meter
3
269700022111
Rh Hinge
4
269700038
Charniere Couv.*hinge-cover
5
269700024
Axe Rotation *axle
6
293350016
Cushion (2.000 Per Pack)
7
269700023111
Lh Hinge
8
207162560
Hex. Screw M6 X 25 (5.000 Per Pack)
9
234061600
Flat Washer M6, Stainless (25.000 Per Pack)
10
269501663
Front Upper Deflector, Black
11
207063560
Hex. Screw M6 X 35 (5.000 Per Pack)
12
234061600
Flat Washer M6, Stainless (25.000 Per Pack)
13
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
14
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
15
269501993
Shock-gas
16
211400006
Short Pin
17
234081600
Flat Washer 8 Mm, Stainless (10.000 Per Pack)
18
293370008
Circlip (10.000 Per Pack)
19
291000855
Shock Support
20
207162560
Hex. Screw M6 X 25 (5.000 Per Pack)
21
291000079
Reinforcement Plate
22
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
23
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
24
262000178
Compression Latch 2"
25
291003529
Sourcil-console*brow-console
26
204100268
Screw-tapp.truss Hd.ph.#6 X 3/8 Ss
