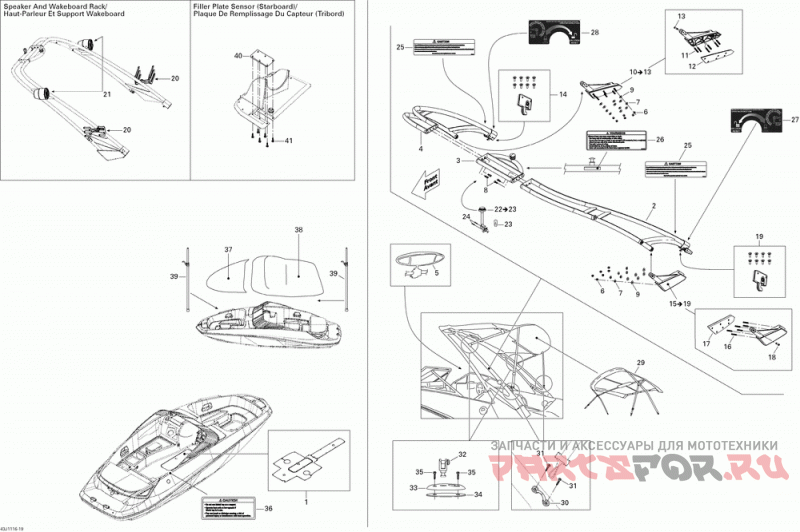

09- tower and bimini top

Sea-Doo (Bombardier) 230 Wake 430

Sea-Doo (Bombardier)
#oem кодцена
1
204950203
Cockpit Carpet
2
269800450
Port Side Tower Port Side
3
269800244
Tower Header
4
269800451
Starboard Side Tower Starboard
5
269800236
Зеркало
6
269800421
Hex. Nut 1/2 X 13
7
204100048
Washer-lock Helical 1/2" (10.000 Per Pack)
8
269800197
Screw 1/2" X 13 X 1.25"
9
269800344
Tower Mount Fender Washer 1/2"
10
269800255
Rh Tower Support Includes 10 To 13, Starboard
11
269800349
Stud 1/2" Starboard
12
269800440
Tower Mount Gasket - 230 - Port Starboard
13
269800350
Tower Mount Pivot Bolt 1/2" X 13 X 1.5" Starboard
14
204950247
Cam Latch Kit Starboard
15
269800256
Lh Tower Support Includes 15 To 19, Port Side
16
269800349
Stud 1/2" Port Side
17
269800440
Tower Mount Gasket - 230 - Port Port Side
18
269800350
Tower Mount Pivot Bolt 1/2" X 13 X 1.5" Port Side
19
204950247
Cam Latch Kit Port Side
20
204072339
Wakeboard Rack
21
269800274
Speaker Ass.
22
204471183
Stern Light Includes 22 To 23
23
204470053
Bulb
24
269800422
Screw 8-18 X 1"
25
269800405
Caution Label, Tower
26
204902068
Warning Label, Tower
27
219903499
Label-tower/lever-port Port Side
28
219903500
Label-tower/lever-stbd. Starboard
29
269800218
Bimini Top
30
269800358
Strap Eye, Stainless
31
269800422
Screw 8-18 X 1"
32
204950033
Bimini Post
33
204950034
Bimini Base
34
204950031
Bimini Spacer
35
269800422
Screw 8-18 X 1"
36
204901331
Caution Label, Bimini Top
37
269800379
Bow Cover
38
269800381
Cockpit Cover
39
269800404
Support Pole Cover
40
204120341
Plaque Capteur*plate-filler Sensor
41
208551060
Phillips Screw M5 X 10 (5.000 Per Pack)
