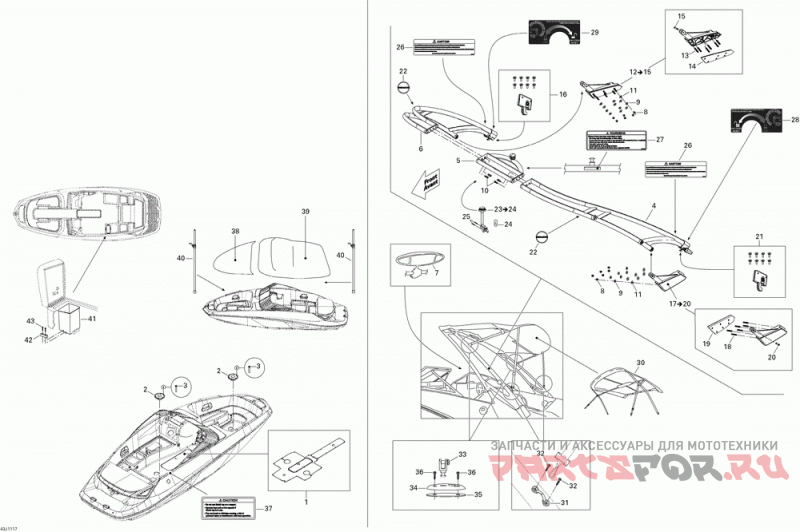

09- tower and bimini top

Sea-Doo (Bombardier) 230 SP 430

Sea-Doo (Bombardier)
#oem кодцена
1
269800268
Cockpit Carpet
2
204071209
Table Base
3
209943260
Phillips Tapping Screw M4.2 X 32 (5.000 Per Pack)
4
269800450
Port Side Tower Port Side
5
269800244
Tower Header
6
269800451
Starboard Side Tower Starboard
7
269800236
Зеркало
8
269800421
Hex. Nut 1/2 X 13
9
204100048
Washer-lock Helical 1/2" (10.000 Per Pack)
10
269800197
Screw 1/2" X 13 X 1.25"
11
269800344
Tower Mount Fender Washer 1/2"
12
269800255
Rh Tower Support Includes 12 To 15, Starboard
13
269800349
Stud 1/2" Starboard
14
269800440
Tower Mount Gasket - 230 - Port Starboard
15
269800350
Tower Mount Pivot Bolt 1/2" X 13 X 1.5" Starboard
16
204950247
Cam Latch Kit Starboard
17
269800256
Lh Tower Support Includes 17 To 20, Port Side
18
269800349
Stud 1/2" Port Side
19
269800440
Tower Mount Gasket - 230 - Port Port Side
20
269800350
Tower Mount Pivot Bolt 1/2" X 13 X 1.5" Port Side
21
204950247
Cam Latch Kit Port Side
22
269800234
Cover - Speaker Mount
23
204471183
Stern Light Includes 23 To 24
24
204470053
Bulb
25
269800422
Screw 8-18 X 1"
26
269800405
Caution Label, Tower
27
204902068
Warning Label, Tower
28
219903499
Label-tower/lever-port Port Side
29
219903500
Label-tower/lever-stbd. Starboard
30
269800208
Bimini Top, W/tower
31
269800358
Strap Eye, Stainless
32
269800422
Screw 8-18 X 1"
33
204950033
Bimini Post
34
204950034
Bimini Base
35
204950031
Bimini Spacer
36
269800422
Screw 8-18 X 1"
37
204901331
Caution Label, Bimini Top
38
269800379
Bow Cover
39
269800381
Cockpit Cover
40
269800404
Support Pole Cover
41
204950095
Trash Can
42
204611805
Защёлка
43
209642560
Phillips Screw M4.2 X 25 (5.000 Per Pack)
