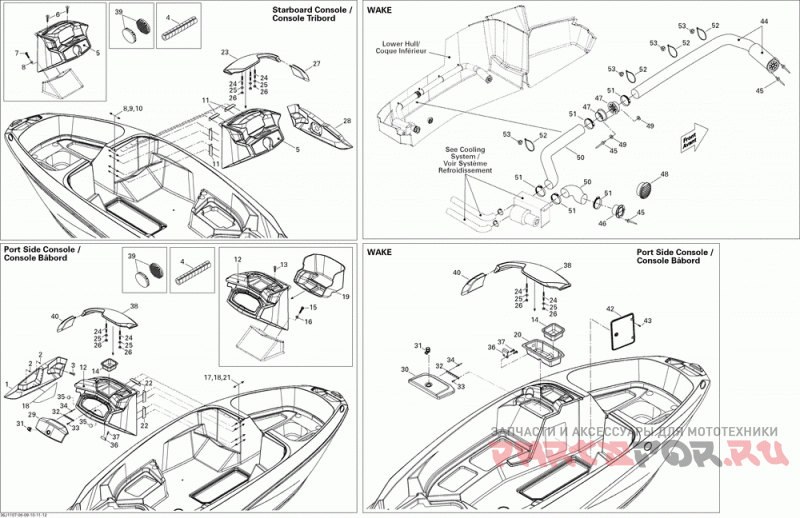

09- front console and glove box

Sea-Doo (Bombardier) 210 Challenger 310

Sea-Doo (Bombardier)
#oem кодцена
1
291002925
Tableau Cout.*fascia-coaming/port
2
293730006
Black Dart (5.000 Per Pack)
3
204100058
Screw-tapp.truss Hd.ph.#8 X 1" (10.000 Per Pack)
4
204050326
Split Loom 3/8", Meter
5
291003174
Console Ass Y, Starboard
6
204100056
Phillips Tapping Screw M10 X 2 (10.000 Per Pack)
7
207163060
Hex. Screw M6 X 30 (10.000 Per Pack)
8
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
9
207164560
Hex. Screw M6 X 45 (5.000 Per Pack)
10
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
12
291003175
Console Ass Y, Port Side
13
204100056
Phillips Tapping Screw M10 X 2 (10.000 Per Pack)
14
291002949
Upper Glove Box
15
207163060
Hex. Screw M6 X 30 (10.000 Per Pack)
16
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
17
207164560
Hex. Screw M6 X 45 (5.000 Per Pack)
18
291003051
Storage Net, Port Side
19
291002877
Dry Storage Box
21
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
23
291002867
Console Brow, Starboard
24
204100033
Stud 1/4#-20 X 2#
25
204100089
Flat Washer 9/32# (5.000 Per Pack)
26
212000005
Nut-stop Elastic Ms-17830 (5.000 Per Pack)
27
291003035
Console Brow Pad, Starboard
28
291002868
Shifter Panel Fascia, Starboard
29
291002872
Lower Glove Box Door
31
204073210
Защёлка
32
291003006
Hinge
33
204100054
Screw 8 X 3/4# (10.000 Per Pack)
34
293150008
Pop Rivet 3/16" (10.000 Per Pack)
35
204070940
Амортизатор ударов
36
204070060
Keeper (5.000 Per Pack)
37
209641360
Tapping Phillips Screw M4.2 X 13 (10.000 Per Pack)
38
291002878
Console Brow, Port Side
39
262000084
Dual Lock, 1/2" X 5 1/2"
40
291003036
Console Brow Pad, Port Side
