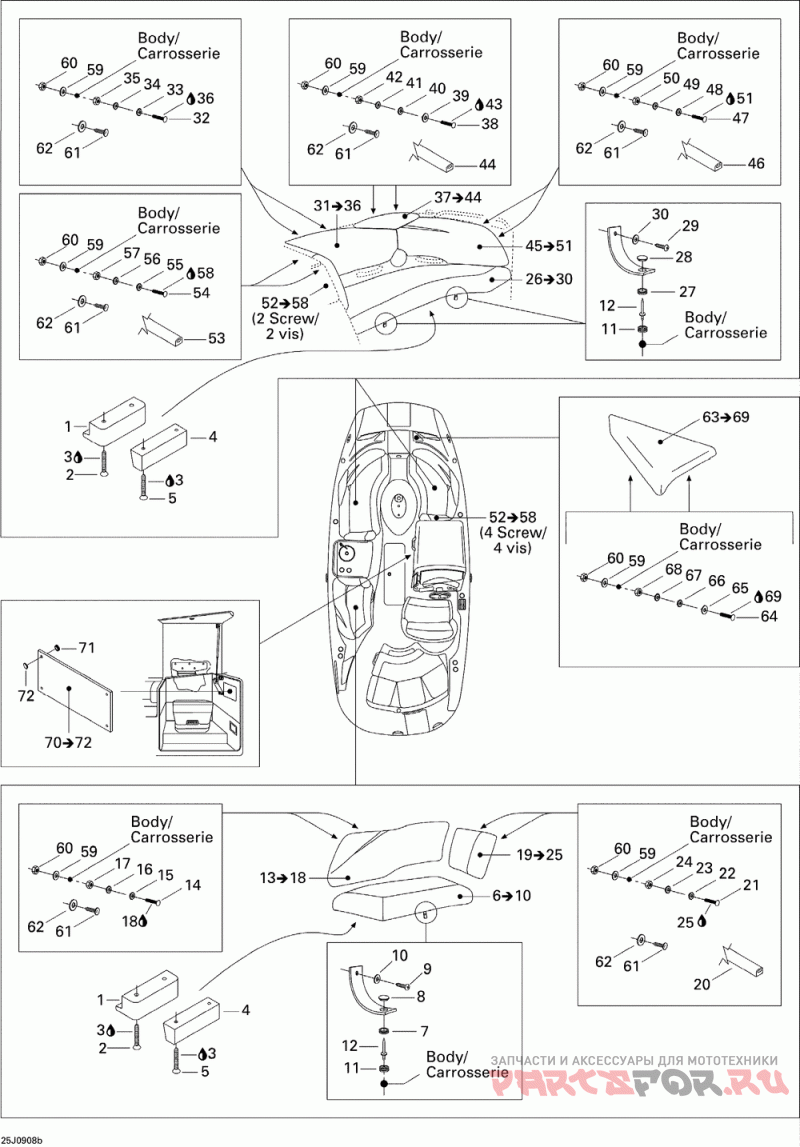

Сидение 2

Sea-Doo (Bombardier) Islandia SE 2 x 215 SCIC

Sea-Doo (Bombardier)
#oem кодцена
1
204611940
Loq.base Siege*catch-seat Base
2
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2"""
3
293800060
Фиксатор резьбы loctite-243
4
204611805
Loquet Base*catch-seat Base
5
204100081
"screw-pan Hd.#8 X 1 1/4"" Ss"
6
204613702
Coussin Ass.*cushion Assy/keeper (includes 14 To 23 )
7
204000083
Att.press.base *snap-base
8
204000085
Att.press.couv.*snap-cover
9
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
10
211200019
Washer-flat 1/4 Ss-316
11
204000084
Att.press.inf. *snap-bottom
12
293150026
Заклепка
13
204613704
Couss.doss.*cushion-backrest Assy. (includes 13 To 18 )
14
204000130
Bolt-elevator
15
211200054
Шайба стопорная Din.6797a-a2
16
234461608
Washer-lock Serrated Din.6798a-a2
17
204100060
Nut-jam Hexagonal 1/4-20 Ss
19
204613711
Couss.doss.*pad-backrest Assy. (includes 19 To 25 )
20
293200032
Anneau Etanche *seal-tray
26
204614545
Coussin Assem.*cushion Assy/port (includes 26 To 30 )
26
204613713
Coussin Assem.*cushion Assy/stbd. (includes 26 To 30 )
31
204613729
Dossier Assem.*backrest Assy/port (includes 31 To 36 )
31
204613717
Dossier Ass.*backrest Assy/stbd.
37
204613733
Appui-tete Assem.*headrest Assy. (includes 37 To 44 )
37
204613721
Appui-tete Assem.headrest Assy.
39
293050001
Шайба
45
204613731
Dossier Assem.*backrest Assy/port (includes 45 To 51 )
45
204613719
Dossier Assem.*backrest Assy/stbd. (includes 45 To 51 )
52
204613727
Coussin.doss.*pad-backrest Assy. (includes 52 To 58 )
52
204613715
Couss.doss.*pad Assy/backrest (includes 52 To 58 )
59
204100139
Washer-fender/s.s.
60
211100026
Nut-hexagonal 1/4-20
61
293730021
Dard *dart
62
204100040
"rondelle-nylon *washer-nylon 5/16"""
63
204613735
Couss.assem.*pad Assy/walk-thru (includes 63 To 69 )
63
204613723
Couss.assem.*pad Assy/bow-stbd (includes 63 To 69 )
70
204613737
Acces-barre*access-helm Assy. (includes 70 To 72 )
