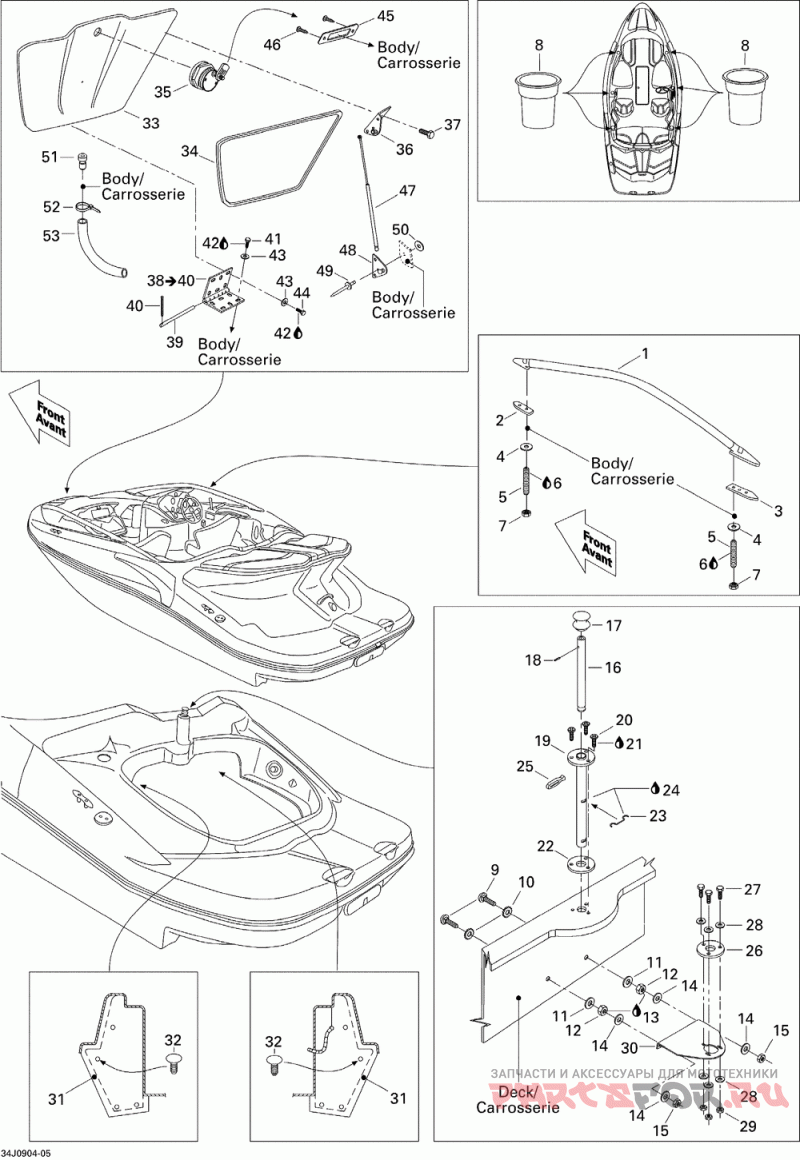

09- body and accessories

Sea-Doo (Bombardier) 200 Speedster, 2 x 215 SCIC

Sea-Doo (Bombardier)
#oem кодцена
1
204073245
Garde-fou Ass.*rail-side Assy/lh
1
204073250
Garde-fou Ass.*rail-side Assy/rh
2
204130063
Joint Etanche *gasket-front
3
204130064
Joint Etanche *gasket-rear
4
234002600
Шайба
5
204100244
"stud 3/8""-16 X 3"" Ss 18-8"
6
293800060
Фиксатор резьбы loctite-243
7
204100032
Nut-stop Elastic 3/8-16
8
291000619
Coupole Retenue*cup-holder
9
204000130
Bolt-elevator
10
234381608
Шайба стопорная Din.6797a-a2
11
234062600
Шайба
12
211100026
Nut-hexagonal 1/4-20
13
293800005
Смазка Loctite 271
15
212000005
Nut-stop Elastic Ms-17830
16
204072616
Arbre De Skieur*shaft-ski
17
293000004
Cap.arbre Ski *cap-shaft Ski
18
211400004
Pin-rolled Din.1481-a2
19
291001057
Tube Fixe Soude*tube-fix Weld.
20
208564060
Винт
22
293830045
Шайба
23
291001205
Пружина
24
293550010
Graisse Synth. *grease-synth.
25
570023800
Loquet Pare-bri*latch-windshield
26
291001060
Rondelle Attach*washer-retaine
27
207162060
Винт
29
232561600
Гайка стопорная эластичная 985-A2
30
204071839
Plaque Fixation*plate-fixation
31
204071935
Joint Mur Bruit*seal-soundwall
32
293730014
Пистон черный
33
204072466
Couver.proue *cover-bow
34
293200093
Неопреновый сальник
35
204071937
Loquet Ras*latch-flush
36
204073074
Supp.amort.*bracket-shock/rework
37
207341260
Винт
38
204070127
Charniere *hinge (includes 38 To 40 )
39
204070204
Tige Charniere *hinge-rod
40
204070205
Шплинт
41
207162560
Винт
43
234061600
Шайба
44
207161660
Винт
45
204072027
Plaque-loquet *plate-latch
46
202000203
Screw-tapp.truss Hd.ph.m4.2x25
47
204071918
Amortisseur*shock-gas
48
204073065
Supp.amort.*bracket-shock/flat
49
293150043
Заклепка 3/16
50
234051600
Шайба
51
204071783
Raccord-drain*fitting-drain
52
293750001
Стяжка 94 мм
53
275000007
Шланг 8мм
