Электрика 3

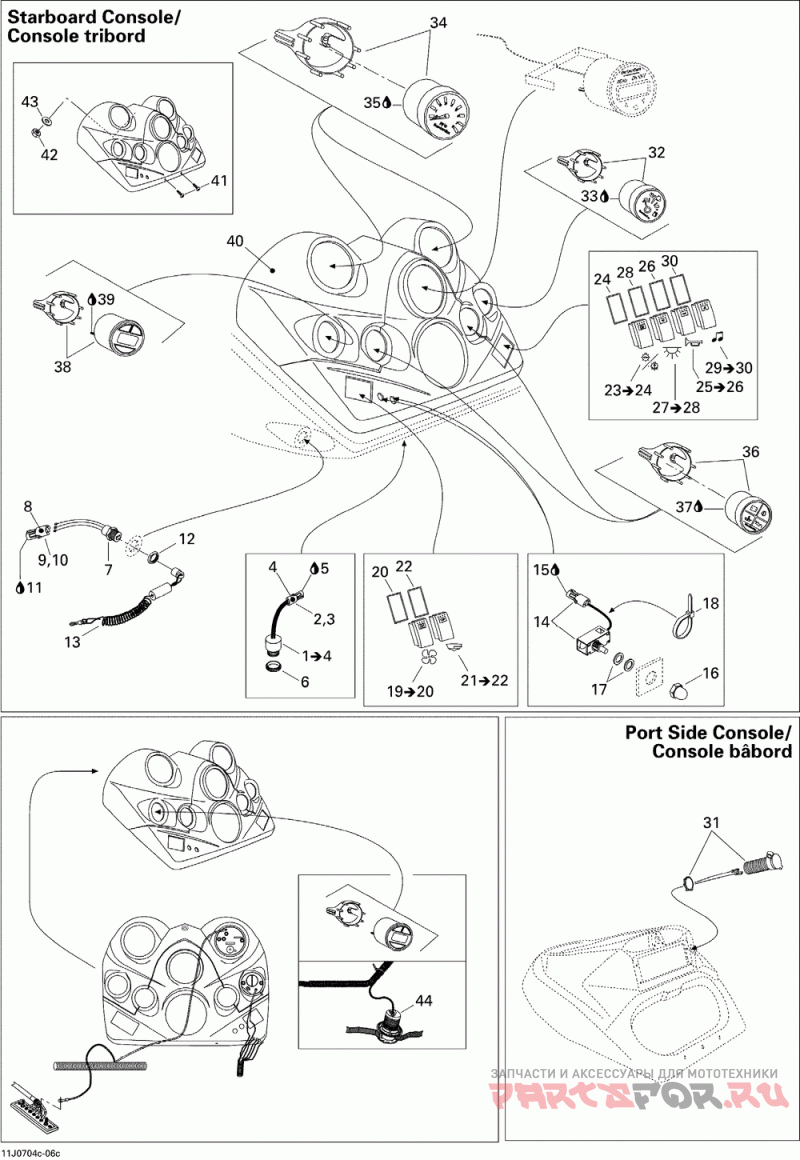

Sea-Doo (Bombardier) Speedster WAKE 215IC

Sea-Doo (Bombardier)
#oem кодцена
1
204470913
Avertisseur Ass*buzzer-assy. (includes 1 To 4 )
2
278000222
Cosse Male *terminal-male ( )
3
278000218
Joint De Fil *seal-wire ( )
4
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
5
293550004
Graisse Dielect*grease-dielect Dc4 ( )
6
278000707
Ecrou Avert. *nut-horn ( )
7
278002325
Interrupteur *safety Switch ( )
8
278000273
Bloc 3 Circ.mal*housing-tab ( )
10
278000223
Cosse Femelle *terminal-femal ( )
12
278000508
Ecrou Securite *nut-saf.switch ( )
13
204471099
Cordon Securite*safety Lanyard ( )
14
278000621
Inter.allum.ga.*switch-ignit. ( )
16
278000565
Capuchon Demar.*cap-igni.start ( )
17
204100027
Rondelle Plate *washer-flat ( )
18
293750002
Tie Rap 142mm *tie-rap 142mm ( )
19
204470011
Inter.vent. *switch-fan (includes 19 To 20 )
21
204470099
Inter.bilge. *switch-bilge (includes 21 To 22 )
23
204470100
Inter.lumiere *switch-light (includes 23 To 24 )
25
204470101
Inter.klaxon *switch-horn (includes 25 To 26 )
27
204470102
Inter.courtois.*switch-courtesy (includes 27 To 28 )
29
204471116
Interrupt.stro*switch-stereo (includes 29 To 30 )
31
710001248
Outlet-dc ( )
32
204471128
Cadran Essen.*gauge-fuel ( )
34
204470958
Cadran Tachy.*gauge-tachometer ( )
36
204471130
Cadran Avert*gauge-warning/engine ( )
38
204470917
Jauge Profond.*gauge-depth ( )
40
204471150
Facia Assemble*fascia Assy. ( )
41
202000203
Screw-tapp.truss Hd.ph.m4.2x25 ( )
42
212000005
Nut-stop Elastic Ms-17830 ( )
43
234082600
Washer-flat Din.9021b-a2 ( )
44
204471292
Capteur *transducer-thru Hull ( )
