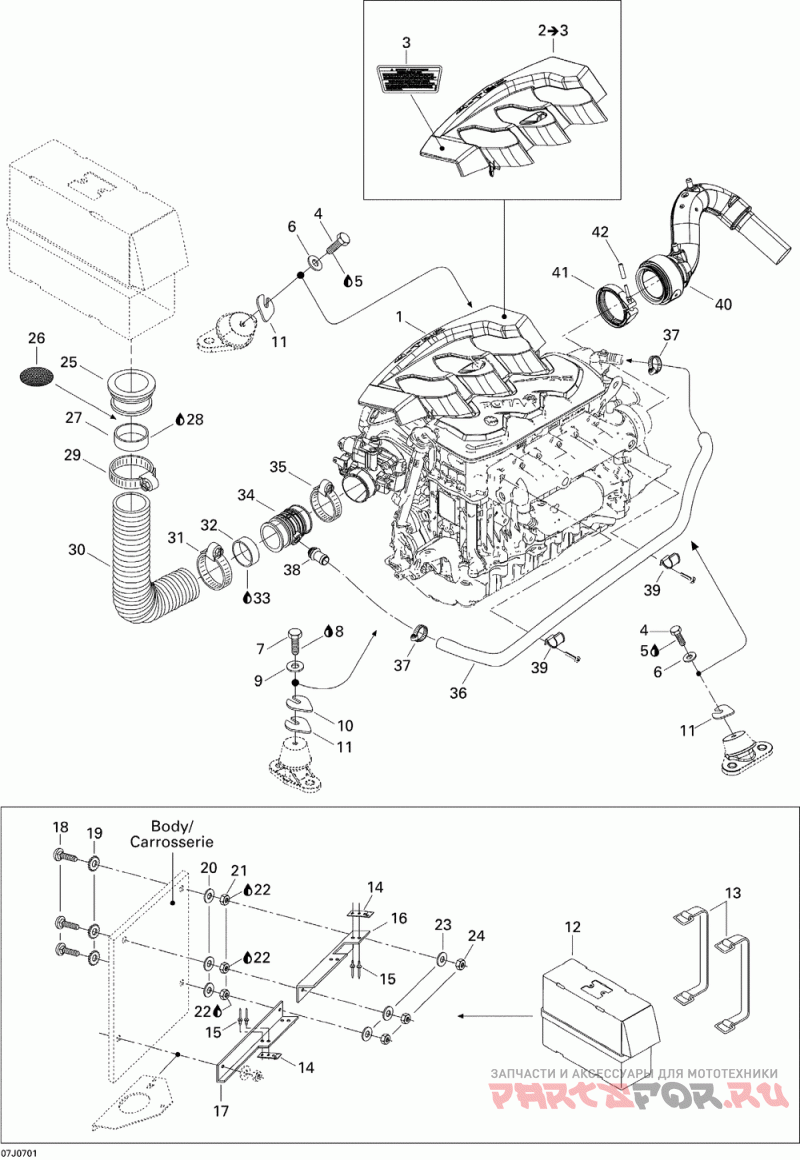

Опора двигателя и глушитель воздухозаборника

Sea-Doo (Bombardier) Speedster 150 155NA

Sea-Doo (Bombardier)
#oem кодцена
2
270000677
Couvercle Ass`e*cover Ass`y (includes 2 To 3 )
3
219902674
Avertissement *warning ( )
4
207182560
Screw-hex.cap Din.933a2 ( )
5
293800060
Loctite 243
6
234082600
Washer-flat Din.9021b-a2 ( )
10
270000025
Cale Epaisseur *shim-1.3mm ( )
11
270000024
Cale Epaisseur *shim-0.4mm ( )
12
204250258
Silenc.adm.*silencer-air Assy. ( )
13
293850077
Sangle Retenue *strap-rubber ( )
14
293850024
Pince Courroie *clip-strap ( )
15
204000081
Rivet-pop 3/16 *rivet-pop 3/16 ( )
16
204250285
Supp.silen.adm.*bracket-air Silenc/top ( )
17
204250284
Supp.silen.adm.*bracket-air Silenc/bttm. ( )
18
204000130
Bolt-elevator ( )
19
234381608
Washer-lock Toothed Din.6797a-a2 ( )
20
234081600
Washer-flat Din.125a-a2 ( )
21
211100026
Nut-hexagonal 1/4-20 ( )
22
293800005
Loctite 271 *loctite-271 ( )
23
234062600
Washer-flat Din.9021b-a2 ( )
24
212000005
Nut-stop Elastic Ms-17830 ( )
25
508000254
Adapt.adm. *adaptator-intake ( )
26
204250395
Grille D Admiss.*screen-intake ( )
27
204250275
Support *support ( )
28
293800021
Loctite 495 *loctite-495 ( )
29
293650179
Bride Serrage *clamp-tridon ( )
30
204340435
Boyau D Admis.*hose-intake ( )
34
204250276
Adapt.boyau *adaptor-hose/engine ( )
35
293650061
Bride Serrage *clamp-tridon ( )
36
270000681
Boyau Forme *hose-formed ( )
37
293650051
Collet A Vis *gear Clamp ( )
38
273000234
Breather ( )
39
275500664
Attache *retainer ( )
40
274001030
Conduit Echap. *exhaust Pipe ( )
41
274000959
Bride *exhaust Clamp ( )
42
415080200
Boyau Polyure *polyurethane Hose ( )
