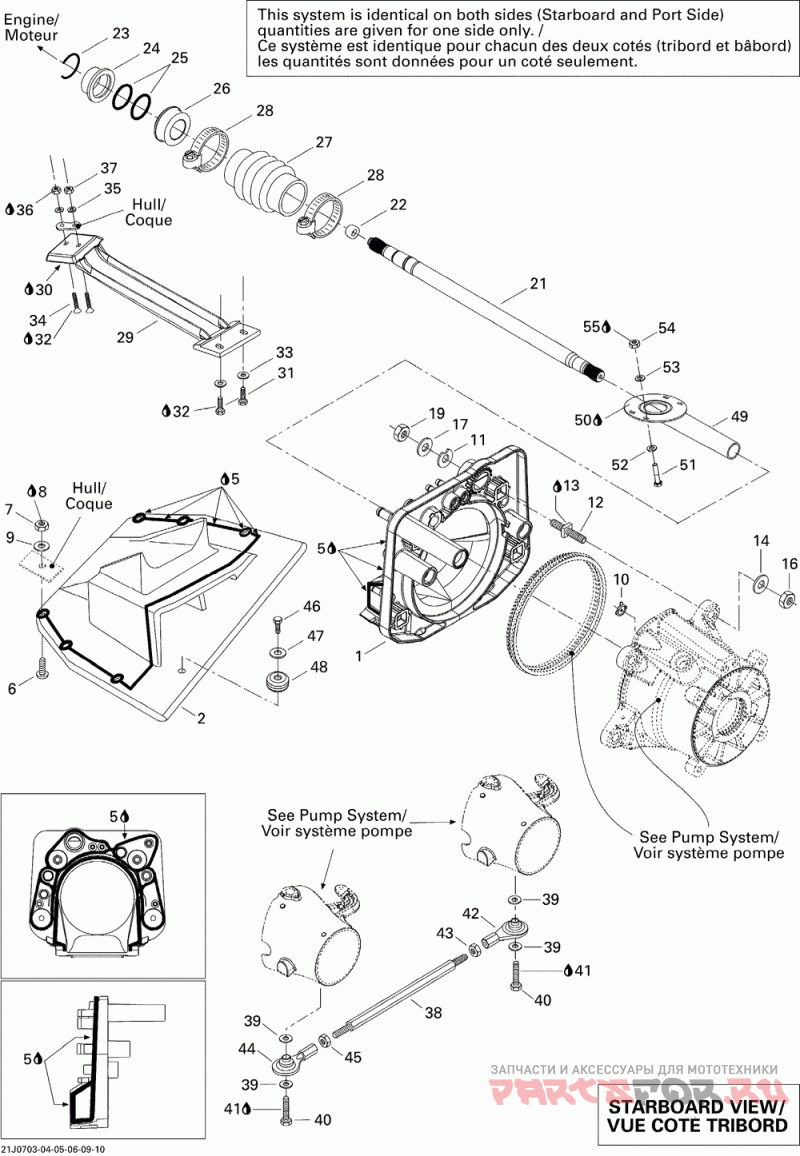

Вал водомета

Sea-Doo (Bombardier) Islandia 220 SE (155NA)

Sea-Doo (Bombardier)
#oem кодцена
1
204120313
Supp.pompe*support-pump/machined ( )
2
204120324
Plaque Promen.*plate-ride/stbd. ( )
2
204120323
Plaque Promen.*plate-ride/port ( )
5
219701421
Instant Gasket *instant Gasket ( )
6
208564060
Screw-ctsk.ov.hd.ph.din.966a-a2 ( )
7
232561600
Nut-stop Elastic Din.985-a2 ( )
9
234062600
Washer-flat Din.9021b-a2 ( )
10
291001887
Reducteur *reducer ( )
11
272000053
Cale Epaisseur *shim ( )
11
204120067
Cale Epaisseur *shim-0.9mm ( )
12
250300022
Goujon Carre *stud-square ( )
13
293800038
Loctite 518 *loctite-518 ( )
14
211200051
Rondelle *washer-flat ( )
16
232501200
Nut-stop Elastic Din.985 ( )
17
234002600
Washer-flat Din.9021b-a2 ( )
21
271001534
Arbre Transm. *drive Shaft ( )
22
272000173
Bouchon *plug ( )
23
271001575
"pince En ""c"" *clip ""c""" ( )
24
272000176
Bague Supp.flot*support Ring ( )
25
293300044
Кольцо
26
272000177
Bague Carbone *carbon Ring ( )
27
272000183
Soufflet *bellow ( )
28
293650077
Bride Serrage *clamp-norma ( )
29
204120325
Grille Fixe *grate-fixed/port ( )
29
204120326
Grille Fixe *grate-fixed/stbd. ( )
31
207161660
Screw-hex.cap Din.933a2 ( )
32
293800005
Loctite 271 *loctite-271 ( )
33
234061600
Washer-flat Din.125a-a2 ( )
34
208563560
Screw-ctsk.ov.hd.ph.din.966a-a2 ( )
38
204120255
Buse Tige Lias.*nozzle/rod-link ( )
40
207162560
Screw-hex.cap Din.933a2 ( )
41
293800060
Loctite 243
42
204120074
Joint Rotule *ball Joint ( )
43
277000439
Ecrou 5/16-24 *nut-5/16-24 ( )
44
204120075
Joint Rotule *ball Joint ( )
45
211100034
Nut-hex.5/16-24 Lh. Ss-304 ( )
46
207362060
Винт Din.933a2 (отпуск.по 10шт)
48
271001487
Anode Zinc *anode Zinc ( )
49
204120328
Protect.arbre*guard-shaft Assy. ( )
51
208653560
Screw-pan Hd.ph.din.7985a-a2 ( )
52
234051600
Washer-flat Din.125a-a2 ( )
53
234052600
Washer-flat Din.9021b-a2 ( )
54
232551600
Nut-stop Elastic Din.985a2 ( )
