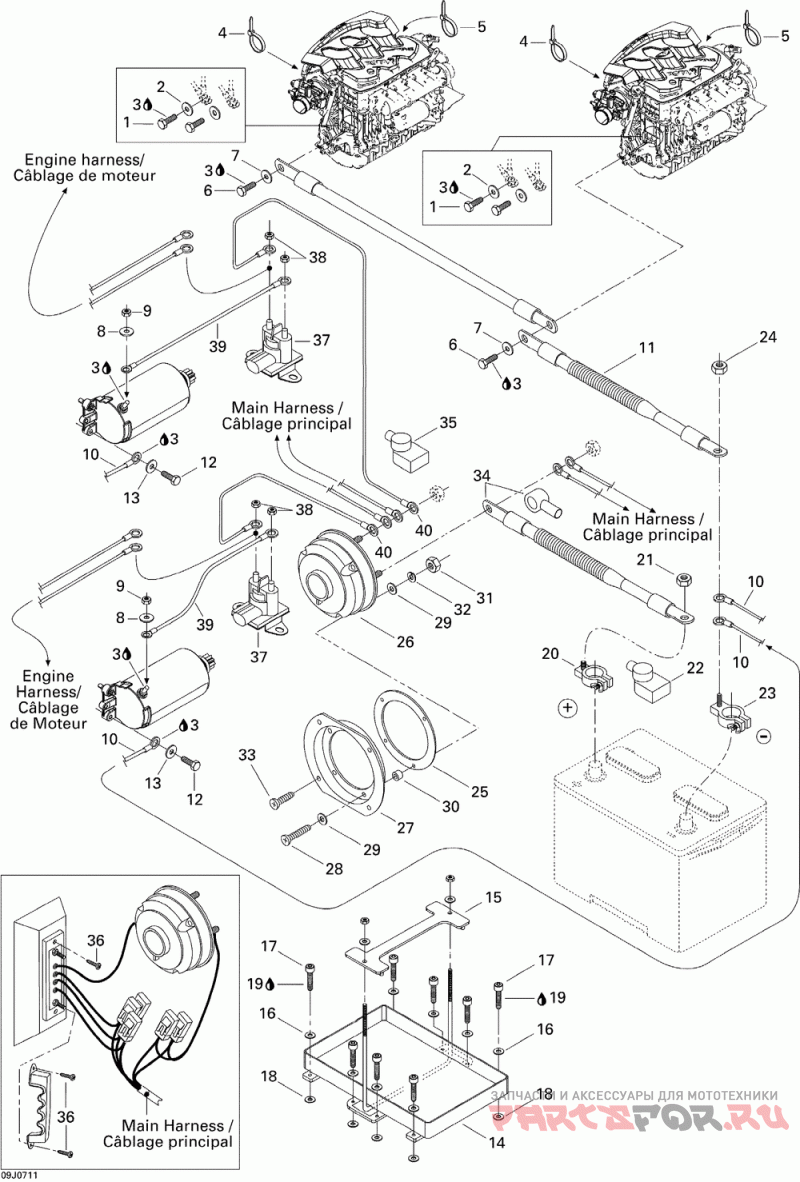

Электрика

Sea-Doo (Bombardier) Islandia 220 SE (155NA)

Sea-Doo (Bombardier)
#oem кодцена
1
207361260
Винт Din.933a2 (отпуск.по 10шт)
2
234061600
Washer-flat Din.125a-a2 ( )
3
293550004
Graisse Dielect*grease-dielect Dc4 ( )
4
414115200
Tie-rap 180 Mm ( )
5
293750002
Tie Rap 142mm *tie-rap 142mm ( )
7
234062600
Washer-flat Din.9021b-a2 ( )
9
232561600
Nut-stop Elastic Din.985-a2 ( )
10
204470854
Cable Masse*cable-ground ( )
10
204470840
Cable Masse *cable-ground ( )
11
204470839
Cable Masse *cable-ground ( )
14
204470419
Kit-supp.batt. *kit-battery Support ( )
15
204471290
Top-supp.batt.*top-battery Support ( )
16
204100069
Washer-flat .25 Id X .56 Od-ss ( )
17
205062560
Screw-socket Hd.din.912a2 ( )
18
211200029
Washer-flat Plastic ( )
19
293800060
Loctite 243
20
204470349
Borne Batt.pos.*pole-batt.pos. ( )
21
211100063
Nut-hex.3/8-16 ( )
22
204470269
Embout-rouge *boot-red ( )
23
204470348
Borne Batt.neg.*pole-batt.neg. ( )
24
204100052
Nut-hex. 5/16-18 Ss-304 ( )
25
204470813
Adapt.interr.*adaptor-switch ( )
26
204470814
Inter.batter.*switch-battery ( )
27
204470653
Support-inter. *support-switch ( )
28
205455060
Screw-socket Bn.hd.iso.7380a2 ( )
29
234051600
Washer-flat Din.125a-a2 ( )
30
204470330
Entretoise *spacer-nylon ( )
31
232051600
Nut-hexagonal Din.934a2 ( )
32
234151601
Washer-lock Helical Din.127b-a2 ( )
33
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
34
204470425
Cable Positif *cable-positive ( )
36
209641360
Screw-tapp.pan Hd.ph.din.7981b-a2 ( )
37
278002347
Relais Demareur*starter Relay ( )
39
204470852
Cable Rouge*cable-red (port Side )
40
204470853
Cable Rouge*cable-red (port Side )
40
204470838
Cable Rouge*cable-red (starboard )
