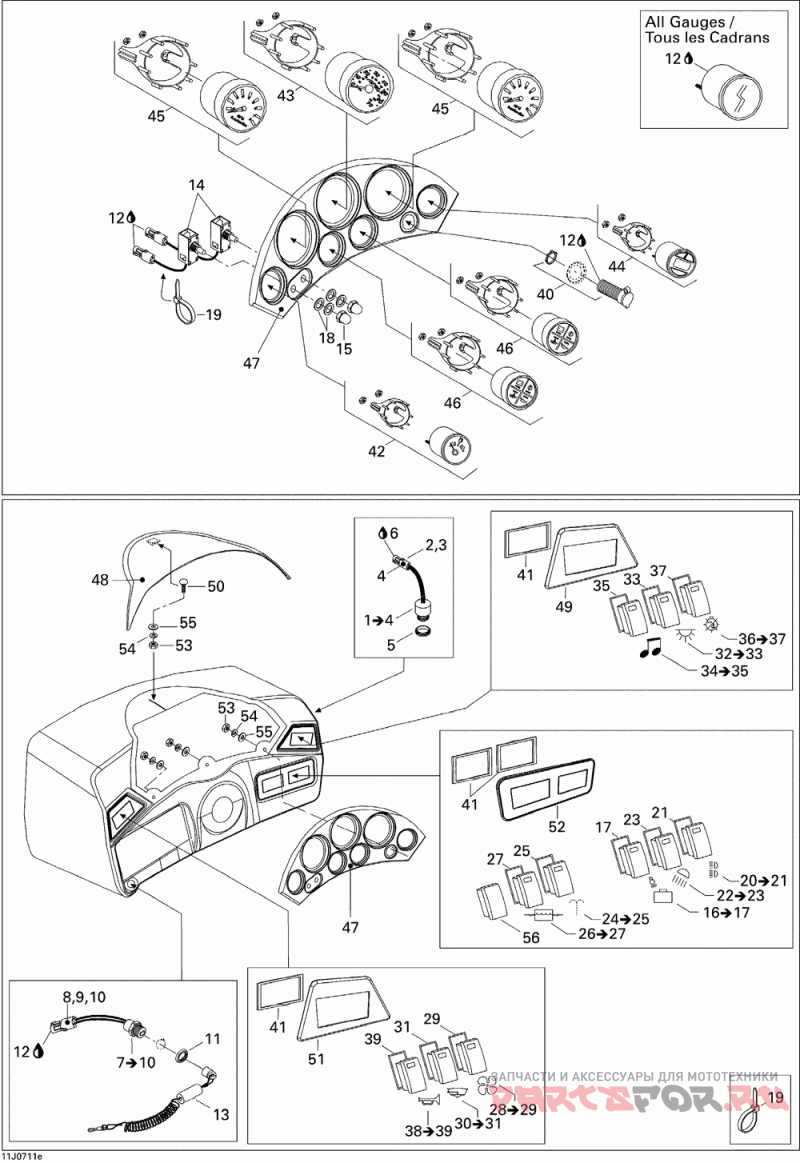

Электрика 5

Sea-Doo (Bombardier) Islandia 220 SE (155NA)

Sea-Doo (Bombardier)
#oem кодцена
1
204470913
Avertisseur Ass*buzzer-assy. (includes 1 To 4 )
2
278000222
Cosse Male *terminal-male ( )
3
278000218
Joint De Fil *seal-wire ( )
4
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
5
278000707
Ecrou Avert. *nut-horn ( )
6
293550004
Graisse Dielect*grease-dielect Dc4 ( )
7
278002325
Interrupteur *safety Switch (includes 7 To 10 )
8
278000273
Bloc 3 Circ.mal*housing-tab ( )
10
278000223
Cosse Femelle *terminal-femal ( )
11
278000508
Ecrou Securite *nut-saf.switch ( )
13
204471099
Cordon Securite*safety Lanyard ( )
14
278000621
Inter.allum.ga.*switch-ignit. ( )
15
278000565
Capuchon Demar.*cap-igni.start ( )
16
204470402
Inter.lumiere *switch-light (includes 16 To 17 )
19
293750002
Tie Rap 142mm *tie-rap 142mm ( )
20
204470403
Inter.lumiere *switch-board.light (includes 20 To 21 )
41
204470343
Plaque Blocage *plate-locking ( )
42
204471129
Cadran Essence*gauge-fuel ( )
43
204470943
Cadran Vites.*speedometer ( )
44
204470917
Jauge Profond.*gauge-depth ( )
45
204471019
Cadran Tachy.*gauge-tachometer ( )
46
204471130
Cadran Avert*gauge-warning/engine ( )
47
204471049
Pann.tableau*panel-dash ( )
48
204471136
Super.tableau*top-dash ( )
49
204471362
Pann.interr.*panel-switch/right ( )
50
204000130
Bolt-elevator ( )
51
204471363
Pann.interr.*panel-switch/left ( )
52
204471364
Pann.interr.*panel-switch/lower ( )
53
211100026
Nut-hexagonal 1/4-20 ( )
54
211200025
"rondelle Frein *washer-lock 1/4""" ( )
55
234062600
Washer-flat Din.9021b-a2 ( )
56
204470596
Bouchon-interr.*plug-switch ( )
