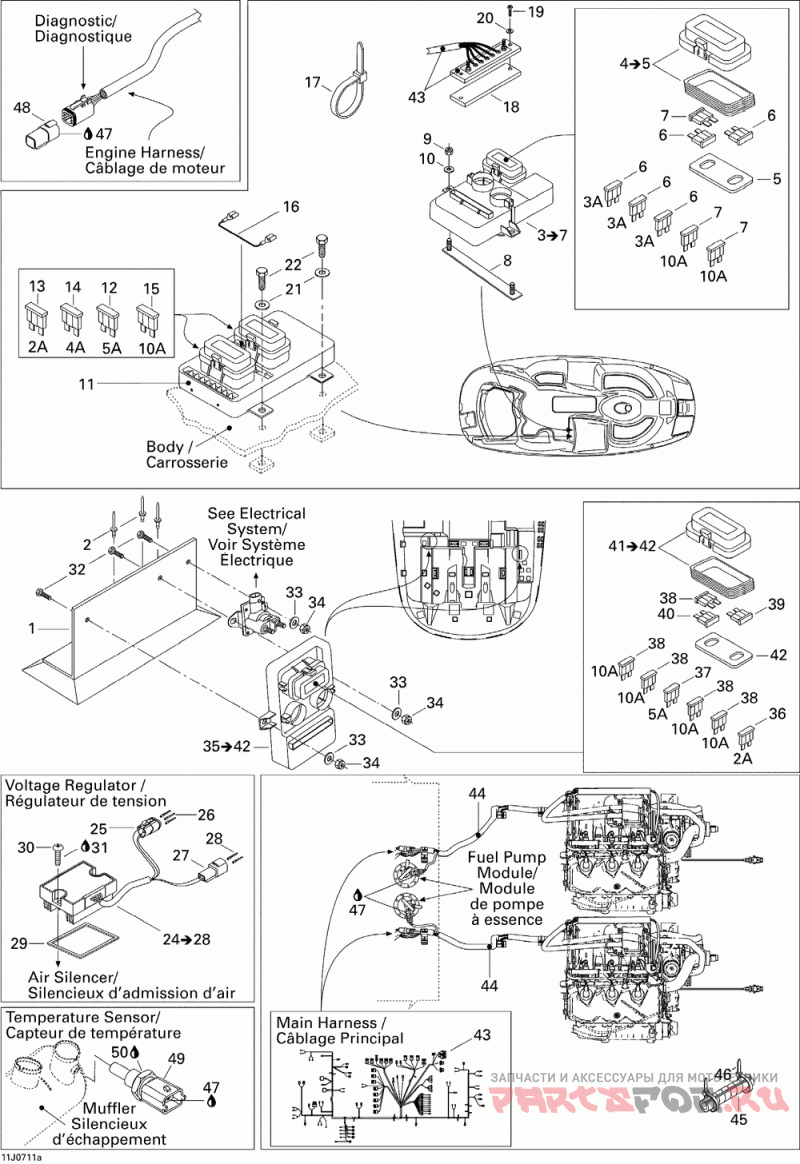

Электрика 1

Sea-Doo (Bombardier) Islandia 220 SE (155NA)

Sea-Doo (Bombardier)
#oem кодцена
1
204471071
Potence-supp.*bracket-support ( )
2
293150037
Rivet Avdel *rivet-avdel 3/16 ( )
3
204471263
Interface-deux*interface-twin Engine (includes 3 To 7 )
4
278001618
Couv.fusible *cover-fuse (includes 4 To 5 )
5
278001719
Cous.fusible *foam-support ( )
6
278001196
Fusible 3 Amp. *fuse-3 Amp. ( )
7
278001197
Fusible 10 Amp.*fuse-10 Amp. ( )
9
232561600
Nut-stop Elastic Din.985-a2 ( )
10
234062600
Washer-flat Din.9021b-a2 ( )
11
204470815
Bloc Fusible *block-fuse ( )
12
278000344
Fusible 5 Amp. *fuse-5 Amp. ( )
13
278001442
Fusible 2 Amp. *fuse-2 Amp. ( )
14
204471100
Fusible 4 Amp. *fuse-4 Amp. ( )
17
293750002
Tie Rap 142mm *tie-rap 142mm ( )
18
204471076
Ajout D Alum.*tapping-ground Buss Bar ( )
19
208641060
Screw-pan Hd.ph.din.7985a-a2 ( )
20
234041600
Washer-flat Din.125a-a2 ( )
22
207161260
Screw-hex.cap Din.933a2 ( )
23
293800060
Loctite 243
24
278001969
Regulateur *regulator (includes 24 To 28 )
25
409207400
Logement Femel.*housing-female ( )
26
278000632
Cosse Femelle *terminal-femal ( )
27
409206900
Logement Male *housing-male ( )
28
515175567
Cosse Femelle *terminal-femal ( )
29
293250123
Joint Etanche *seal-rh. ( )
30
208663060
Screw-pan Hd.ph.din.7985a-a2 ( )
31
293800005
Loctite 271 *loctite-271 ( )
32
207162060
Screw-hex.cap Din.933a2 ( )
35
204470770
Bloc Fusible*block-fuse (includes 35 To 42 )
39
409003900
Fusible 20a *fuse 20a ( )
40
410917200
Fusible 30 Amp *fuse 30 Amp ( )
43
204471134
Cablage *harness ( )
44
204470973
Cablage Mot.*harness-engine ( )
45
204471077
Conduit Fente*conduit-slit ( )
47
293550004
Graisse Dielect*grease-dielect Dc4 ( )
48
278002148
Capuchon *connect-cap ( )
49
278001016
Capteur Temp. *sensor-liquid ( )
50
293800038
Loctite 518 *loctite-518 ( )
