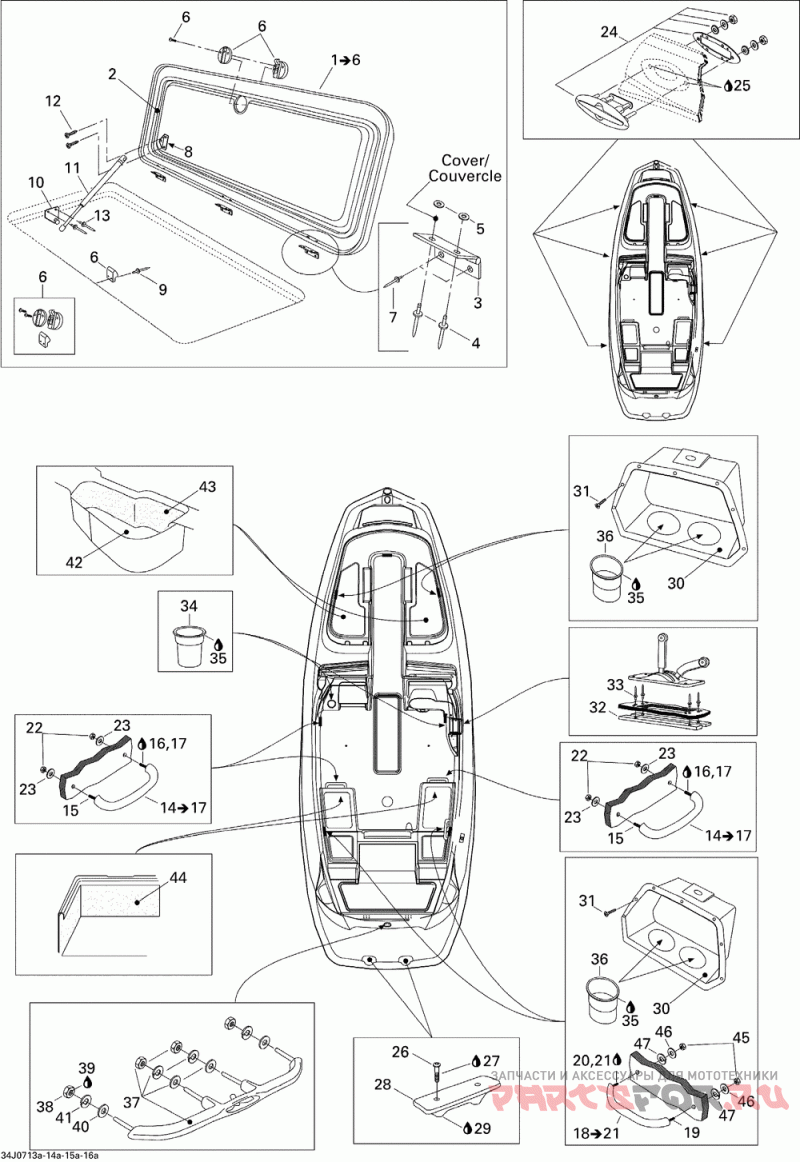

Кузов 1

Sea-Doo (Bombardier) Challenger 230 WAKE 155NA

Sea-Doo (Bombardier)
#oem кодцена
1
204073203
Couv.centre*cover-center Assy/rtm (includes 1 To 6 )
2
293200032
Anneau Etanche *seal-tray ( )
3
204072601
Charniere Porte*hinge-ski Door ( )
4
293150088
Rivet-pop 3/16 *rivet-pop 3/16 ( )
5
234051600
Washer-flat Din.125a-a2 ( )
6
204072838
Loquet D Acier*latch-stainless ( )
7
293150005
Rivet-pop 3/16 *rivet-pop 3/16 ( )
8
204071700
Supp.amort.*bracket-shock/angled ( )
9
293150039
Rivet-pop 3/16 *rivet-pop 3/16 ( )
10
204072219
Supp.amort.*bracket-shock/rh ( )
11
204072218
Amortisseur*shock-gas ( )
12
209641360
Screw-tapp.pan Hd.ph.din.7981b-a2 ( )
13
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
14
204072920
Poigne Assem.*handle-grab Assy. (includes 14 To 17 )
15
204100050
Goujon Filete *stud-threaded ( )
16
293800005
Loctite 271 *loctite-271 ( )
17
293800041
Appret Loctite *primer-loctite ( )
18
204071122
Poign.maint. *handle-grab ( )
22
204100032
Nut-stop Elastic 3/8-16 ( )
23
234002600
Washer-flat Din.9021b-a2 ( )
24
204072717
Taquet Arrter*cleat-pull Up ( )
25
293800060
Loctite 243
26
205364060
Screw-socket Hd.ctsk.din.7991-a2 ( )
28
204070194
Poignee Maint. *handle-grip ( )
30
204073019
Boite Coutille*box-coaming Assy ( )
31
209941960
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
32
293450061
Ajout Controle *insert-shifter ( )
33
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
34
291000619
Coupole Retenue*cup-holder ( )
36
204072216
Coupole Reten.*holder-cup/blk. ( )
37
204073394
Poigne/tlski*handle Assy-ski Tow ( )
38
204100052
Nut-hex. 5/16-18 Ss-304 ( )
41
234181601
Washer-lock Helical Din.127b-a2 ( )
42
204072942
Doubl.rangem.*liner-storage/bow ( )
43
204072943
Tapis-rangem.*carpet-storage/bow ( )
44
204072944
Tapis-rangem.*carpet-storage/stern ( )
