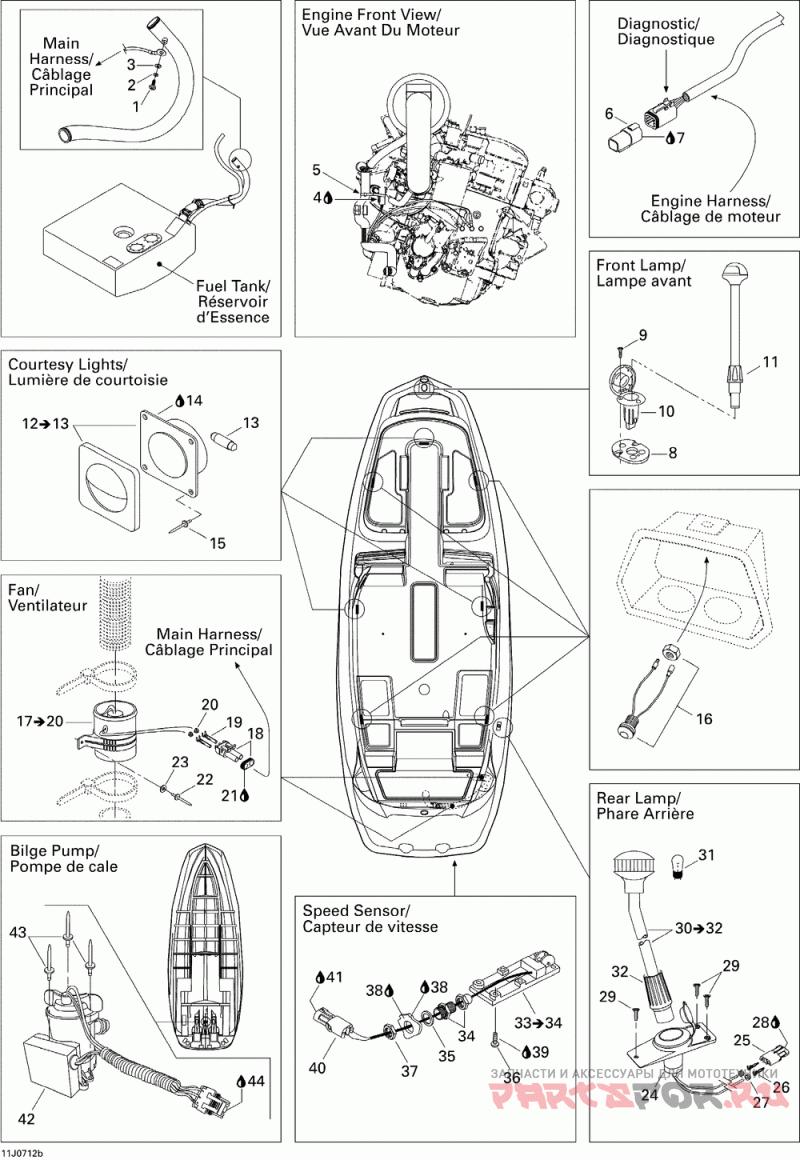

Электрика 2

Sea-Doo (Bombardier) Challenger 230 155NA

Sea-Doo (Bombardier)
#oem кодцена
1
208640860
Screw-pan Hd.ph.din.7985a-a2 ( )
2
234141601
Washer-lock Helical Din.127b-a2 ( )
3
234041600
Washer-flat Din.125a-a2 ( )
4
293550004
Graisse Dielect*grease-dielect Dc4 ( )
5
414115200
Tie-rap 180 Mm ( )
6
278002148
Capuchon *connect-cap ( )
8
204470072
Supp.phare Av. *supp-lamp Front ( )
9
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
10
204470372
Phare Avant *lamp-front/chrome ( )
12
204470026
Lum.courtoisie *light-courtesy (includes 12 To 13 )
13
204470081
Ampoule *bulb ( )
15
293150032
Rivet-pop 1/8 *rivet-pop 1/8 ( )
16
204471169
Lumire Ass.*light Assy-led ( )
17
204470108
Ventilateur Ass*fan-assy. (includes 17 To 20 )
18
278000220
Bloc 2 Circ.mal*housing-tab(m) ( )
19
278000223
Cosse Femelle *terminal-femal ( )
20
278000218
Joint De Fil *seal-wire ( )
22
293150011
Rivet-pop 3/16 *rivet-pop 3/16 ( )
23
234052600
Washer-flat Din.9021b-a2 ( )
24
204470990
Base Phare *base-lamp Rear ( )
25
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
26
278000222
Cosse Male *terminal-male ( )
29
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
30
204470022
Pole Phare *pole-lamp Rear (includes 30 To 32 )
31
204470053
Ampoule *bulb ( )
32
204470350
Collet *collar ( )
33
204471199
Retrav.capteur*sensor-speed/rework (includes 33 To 34 )
34
293710031
Raccord Elect. *connect-elect. ( )
35
278000416
Rondelle Etanc.*washer-seal ( )
36
208551060
Screw-ctsk.ov.hd.ph.din.966a-a2 ( )
37
293710032
Ecrou D Arret *nut-locking ( )
39
293800060
Loctite 243
42
204470562
Pompe Cale *pump-bilge ( )
43
293150029
Rivet-pop 5/32 *rivet-pop 5/32 ( )
