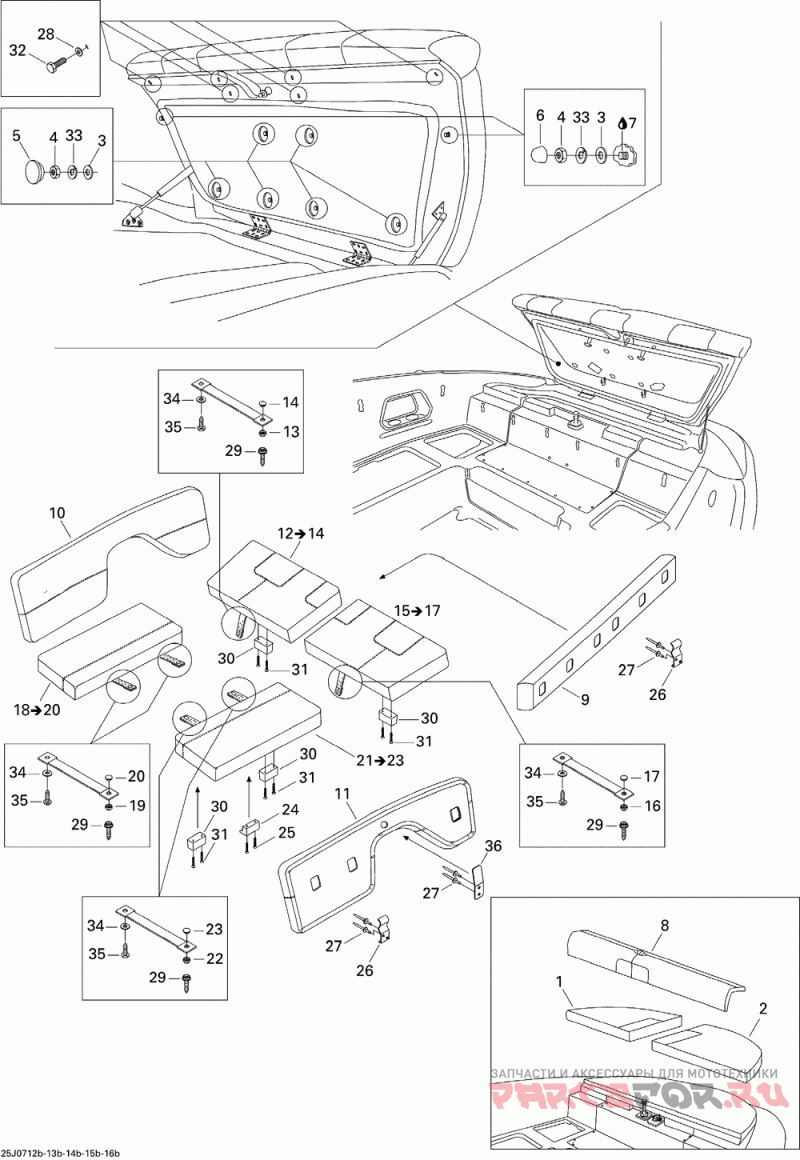

09- seat, rear view

Sea-Doo (Bombardier) Challenger 230 155NA

Sea-Doo (Bombardier)
#oem кодцена
1
204613802
Coussin Pont*cushion-sundeck/stbd. ( )
2
204613790
Coussin Pont*cushion-sundeck/port ( )
3
204100069
Washer-flat .25 Id X .56 Od-ss ( )
4
212000005
Nut-stop Elastic Ms-17830 ( )
5
291000279
Bouchon Noir *plug-black ( )
6
204130008
Bouchon-plast.*cap-plastic/white ( )
7
293800060
Loctite 243
9
204613804
Dossier-arr.*backrest-rear ( )
10
204613808
Dossier-plat.*backrest-gunnel/stbd ( )
11
204613807
Dossier-plat.*backrest-gunnel/port ( )
12
204613810
Coussin Assem.*cushion Assy/stbd (includes 12 To 14 )
13
204000083
Att.press.base *snap-base ( )
14
204611609
Att.press.couv.*snap-cover ( )
15
204613809
Coussin Assem.*cushion Assy/port (includes 15 To 17 )
18
204613812
Coussin Assem.*cushion Assy/stbd (includes 18 To 20 )
21
204613811
Coussin Assem.*cushion Assy/port (includes 21 To 23 )
24
204611940
Loq.base Siege*catch-seat Base ( )
25
204100120
Screw-tapp.pan Hd.ph. #14x2 Ss ( )
26
204610288
Support Siege *support-seat ( )
27
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
28
234061600
Washer-flat Din.125a-a2 ( )
29
202000159
"screw-stud Tapp. 3/8"" Ss" ( )
30
204611805
Loquet Base*catch-seat Base ( )
31
204100081
"screw-pan Hd.#8 X 1 1/4"" Ss" ( )
32
207163560
Screw-hex.cap Din.933a2 ( )
34
211200019
Washer-flat 1/4 Ss-316 ( )
36
204611531
Pince-retenue *clip-retaining ( )
