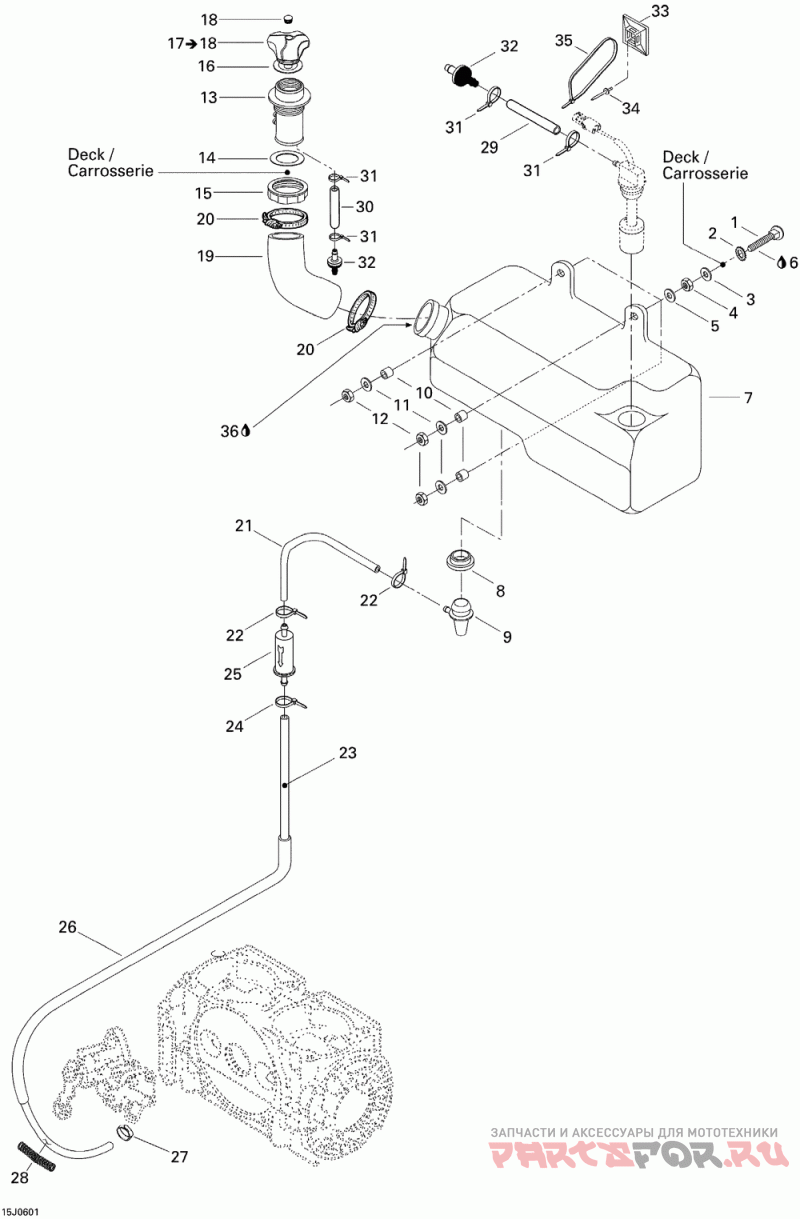

Масляная система

Sea-Doo (Bombardier) Sportster LE DI

Sea-Doo (Bombardier)
#oem кодцена
1
211000193
Carriage Bolt Mushroom Head ( )
2
211200054
Washer-lock Toothed Din.6797a-a2 ( )
3
234081600
Washer-flat Din.125a-a2 ( )
4
211100026
Nut-hexagonal 1/4-20 ( )
5
234062600
Washer-flat Din.9021b-a2 ( )
6
293800005
Loctite 271 *loctite-271 ( )
7
204550087
Reservoir Huile*tank-oil ( )
8
293720008
Passe-fils *grommet ( )
9
293710070
Raccord Coude *fitting-elbow ( )
10
204550033
Manchon Ecart. *sleeve-spacer ( )
12
212000005
Nut-stop Elastic Ms-17830 ( )
13
275000234
Goulot Remplis.*neck-filler ( )
14
293250029
Joint Etanche *gasket ( )
15
211100012
Nut-neck Filler Fuel ( )
16
293250211
Joint Etanche *gasket ( )
17
275000221
.bouchon Huile *cap-oil Assy. (includes 17 To 18 )
18
293000076
Capuchon Press.*cap-snap ( )
19
204550172
Boyau Forme *hose-formed ( )
20
293650077
Bride Serrage *clamp-norma ( )
21
275000007
Boyau 8mm. *hose-8mm. ( )
22
293750001
Tie Rap 94mm *tie-rap 94mm ( )
25
275000262
Filtre Huile *filter-oil ( )
26
204550015
Enveloppe Isol.*slit-conduit ( )
27
293650042
Collet A Sertir*crimp Clamp ( )
28
204550064
Ressort Helico.*spring-coil ( )
29
276000048
Boyau 6mm. *hose-6mm. ( )
30
270000374
Boyau 4.3mm *hose-4.3mm ( )
32
275500398
Soupape Retenue*valve-check ( )
33
293750015
Ancrage Tie Rap*mount-tie Rap ( )
34
293150006
Rivet-pop 1/8 *rivet-pop 1/8 ( )
36
293600132
Huile 2t 12x1 Synth * Oil 2t 12x1 Synth ( )
36
293600133
Huile 2t 3x1g Synth *oil 2t 3x1g Synth ( )
36
293600134
Huile 2t Baril * Oil 2t Drum Synth ( )
