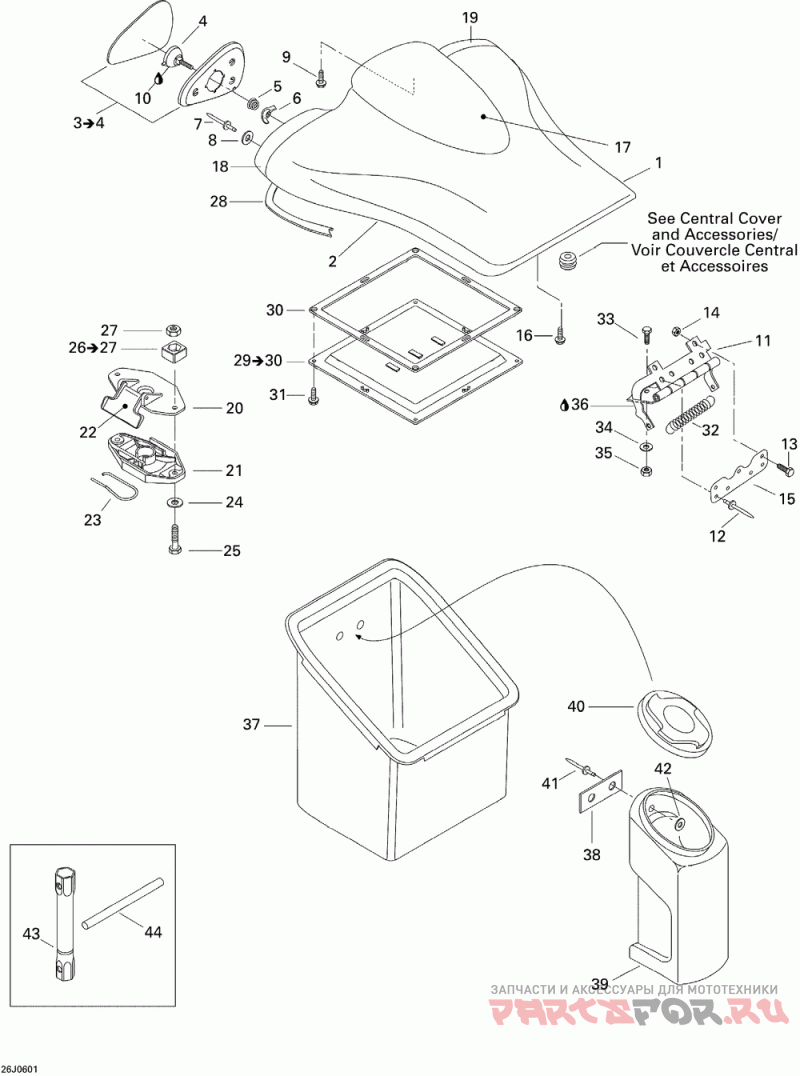

09- storage compartment, front

Sea-Doo (Bombardier) Sportster LE DI

Sea-Doo (Bombardier)
#oem кодцена
1
269500170
Couv.bagage Sup*cover-stor.upp ( )
2
269500227
Couv.bagage Inf*cover-stor.low ( )
3
269500055
Miroir Ass.dr. *mirror-assy.rh (includes 3 To 4 )
3
269500056
Miroir Ass.ga. *mirror-assy.lh (includes 3 To 4 )
4
269500079
Rotule Miroir *mirror Joint ( )
5
269500082
Ressort Miroir *spring-mirror ( )
6
232661600
Nut-wing Ansi B18.17 Type A ( )
7
293150008
Rivet-pop 3/16 *rivet-pop 3/16 ( )
8
213200016
Washer-flat Emhart ( )
9
241140060
Screw-pt.hex.flange K40 X 10 ( )
10
293550010
Graisse Synth. *grease-synth. ( )
11
204620281
Charniere Ass.*hinge Assy. ( )
12
293150039
Rivet-pop 3/16 *rivet-pop 3/16 ( )
13
207151260
Screw-hex.cap Din.933a2 ( )
14
232551600
Nut-stop Elastic Din.985a2 ( )
15
269500107
Plaque Retenue *plate-retainer ( )
16
241141660
Screw-pt.hex.flange K40 X 16 ( )
17
204620237
Deflecteur *deflector ( )
18
269500172
Boitier Miroir *housing-rh. ( )
19
269500173
Boitier Miroir *housing-lh. ( )
20
269700076
Couv.loquet *cover-latch ( )
21
269700109
Loquet Assemble*latch Ass Y ( )
22
269700077
Levier Loquet *lever-latch ( )
23
269700017
Ressort Loquet *spring-latch ( )
24
234061600
Washer-flat Din.125a-a2 ( )
25
207163560
Screw-hex.cap Din.933a2 ( )
26
269500252
Logement Ecrou *housing-nut As (includes 26 To 27 )
27
232061600
Nut-hexagonal Din.934a2 ( )
28
293200020
Anneau Etanche *seal-tray ( )
29
269500241
Couv.acces Ass.*cover-acc.assy (includes 29 To 30 )
30
293200033
Anneau Etanche *seal-tray ( )
32
204620049
Ressort Charn. *spring-hinge ( )
33
207152560
Screw-hex.cap Din.933a2 ( )
34
234051600
Washer-flat Din.125a-a2 ( )
37
269500416
Coffre Bagage *tray-storage ( )
38
293250037
Joint Etanche *gasket ( )
39
269500606
Boitier Extinct*housing-exting ( )
40
269500603
Cap Extincteur *cap-extinguish ( )
41
293150032
Rivet-pop 1/8 *rivet-pop 1/8 ( )
42
234032600
Washer-flat Din.9021b-a2 ( )
