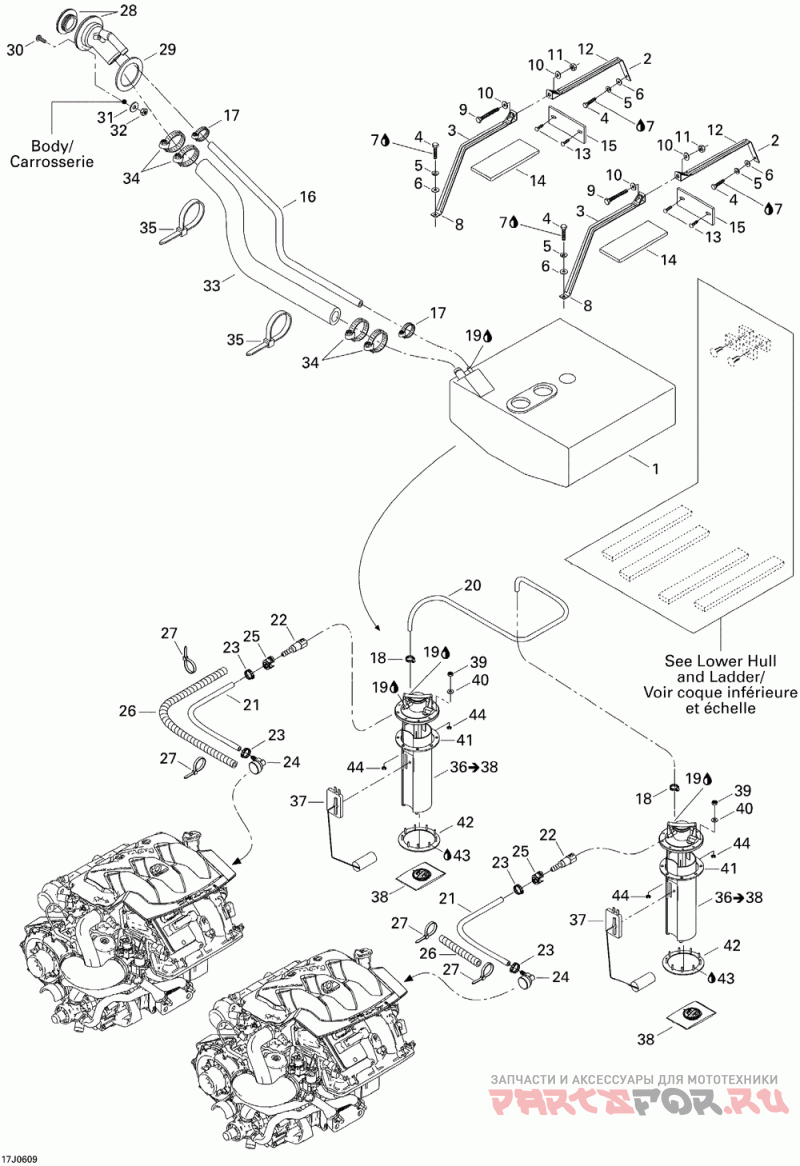

Топливная система

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC SCIC, TOWER, Edition 2

Sea-Doo (Bombardier)
#oem кодцена
1
204560330
Reserv.ess.*tank-fuel Assy. ( )
2
204560235
Sangle Metal.*strap-metal ( )
4
207183060
Screw-hex.cap Din.933a2 ( )
5
234181601
Washer-lock Helical Din.127b-a2 ( )
6
234082600
Washer-flat Din.9021b-a2 ( )
7
293800005
Loctite 271 *loctite-271 ( )
8
204560270
Sangle Metal.*strap-metal ( )
9
207188060
Screw-hex.cap Din.933a2 ( )
11
232581600
Nut-stop Elastic Din.985a2 ( )
12
293830044
Tampon Protect.*pad-protector ( )
13
293730006
Dard Noir *dart-black ( )
14
204560191
Tampon Sangle *pad-strap/fuel Tank ( )
15
204060702
Tamp.caout.*pad-rubber/muffler ( )
16
204560358
Boyau 16mm. *hose-16mm. ( )
17
293650069
Bride Serrage *clamp-norma ( )
18
293650170
Collet A Vis *gear Clamp ( )
20
204560178
"boyau *hose-1/4""" ( )
21
275500626
"boyau 5/16"" *hose-5/16""" ( )
22
275500428
Boitier Connec.*connector-box ( )
23
293650011
Collet A Sertir*crimp Clamp ( )
24
293710105
Raccord Coude90*fitting-elbow ( )
25
275500429
Barette Connec.*connector-stopper ( )
26
204550028
Enveloppe Isol.*slit-conduit ( )
27
293750002
Tie Rap 142mm *tie-rap 142mm ( )
28
204560182
Goulot Remplis.*neck-filler ( )
29
204560188
Entretoise *spacer ( )
30
208643560
Screw-pan Hd.ph.din.7985a-a2 ( )
31
234040600
Washer-flat Din.433a2 ( )
32
232541600
Nut-stop Elastic Din.985a2 ( )
33
204560294
Boyau Remp.ext.*hose-fill Neck/soft ( )
34
293650174
Bride Serrage *clamp-norma ( )
35
414115200
Tie-rap 180 Mm ( )
36
204560418
Module Pompe *fuel Pump Module (includes 36 To 38 )
37
270600012
Levier Capteur *level-sensor ( )
38
219700368
Filtreur Bosch *bosch Filter ( )
39
232551200
Nut-stop Elastic Din.985 ( )
40
234052400
Washer-flat Din.7349 ( )
41
293250088
Joint Etanche *gasket ( )
42
275500679
Anneau En C *c Ring 9 Stud ( )
43
293800038
Loctite 518 *loctite-518 ( )
44
293370002
Circlip-sstl.5mm.din.6799 ( )
