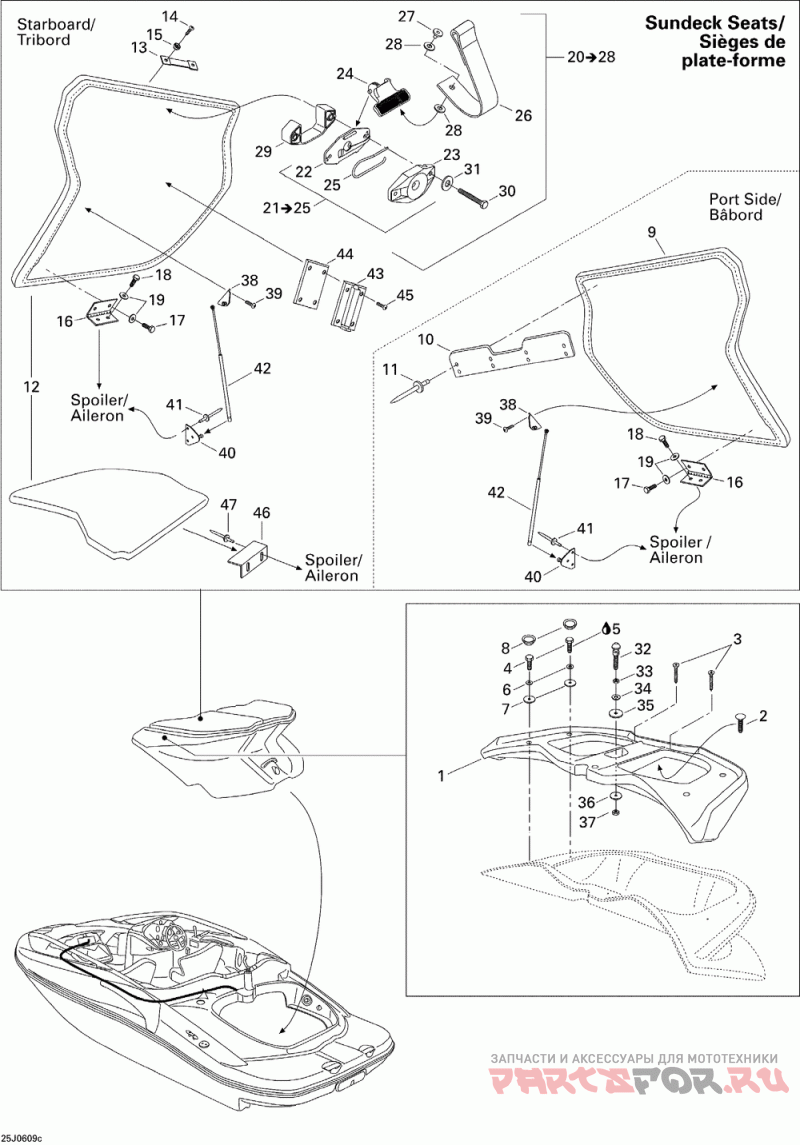

09- seat 3, speed, tower

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC SCIC, TOWER, Edition 2

Sea-Doo (Bombardier)
#oem кодцена
1
204613003
Aileron Roto. *spoiler ( )
2
293730021
Dard *dart ( )
3
204100164
"20rew-tapp.truss Hd.ph.#10 X 1-1/4""" ( )
4
207362560
Винт Din.933a2 (отпуск.по 10шт)
5
293800060
Loctite 243
6
234062600
Washer-flat Din.9021b-a2 ( )
7
234002600
Washer-flat Din.9021b-a2 ( )
8
204130065
"capuchon Noir*plug-black 1-1/2""" ( )
9
204613004
Porte Platef.*door-sunpad Assy. (red )
9
204613022
Porte Platef.*door-sunpad Assy. (blue )
10
204612684
Plaque Reten.*plate-retainer ( )
11
293150011
Rivet-pop 3/16 *rivet-pop 3/16 ( )
12
204613006
Porte Platef.*door-sunpad Assy. (red )
12
204613023
Porte Platef.*door-sunpad Assy. (blue )
13
204612685
Housse Boucle*cover-loop ( )
14
204100049
"screw-tapp.ctsk.fl.hd.ph.#8 X 1""" ( )
15
204100057
Rondelle-finit.*washer-finishing ( )
16
204612769
Charn.platef.*hinge-sundeck ( )
17
204100134
"screw-hex 1/4""-20 X 3/4""" ( )
18
204100137
"screw-hex 1/4""-20 X 1/2""" ( )
19
234061600
Washer-flat Din.125a-a2 ( )
21
204070577
Loquet Ass. *latch Assy-rework (includes 21 To 25 )
22
269700076
Couv.loquet *cover-latch ( )
23
269700109
Loquet Assemble*latch Ass Y ( )
24
269700077
Levier Loquet *lever-latch ( )
25
269700017
Ressort Loquet *spring-latch ( )
26
204612642
Courroie *strap ( )
27
293150039
Rivet-pop 3/16 *rivet-pop 3/16 ( )
28
234052600
Washer-flat Din.9021b-a2 ( )
29
269700015
Cale Epaisseur *shim ( )
30
204100141
Bolt-hex.tap 1 3/4 X 1/4-20 ( )
32
291000689
Ergot D Ancrage*stud-latch ( )
33
232100600
Nut-jam Hexagonal Din.439b-a2 ( )
35
291000628
Rondelle Caout.*washer-rubber ( )
37
232501600
Nut-stop Elastic Din.985a2 ( )
38
204071700
Supp.amort.*bracket-shock/angled ( )
39
204100073
"screw-pan Hd.#10 X 5/8"" Ss" ( )
40
204071673
Supp.amort.*bracket-shock/flat ( )
42
204071874
Amortisseur*shock-gas ( )
43
204612641
Loquet Gliss.*latch-slide ( )
44
204612664
Cale Loquet*shim-latch ( )
45
204100082
"screw-tapp.ctsk.fl.hd.#6 X 1"" Ss" ( )
46
204070060
Gache *keeper ( )
