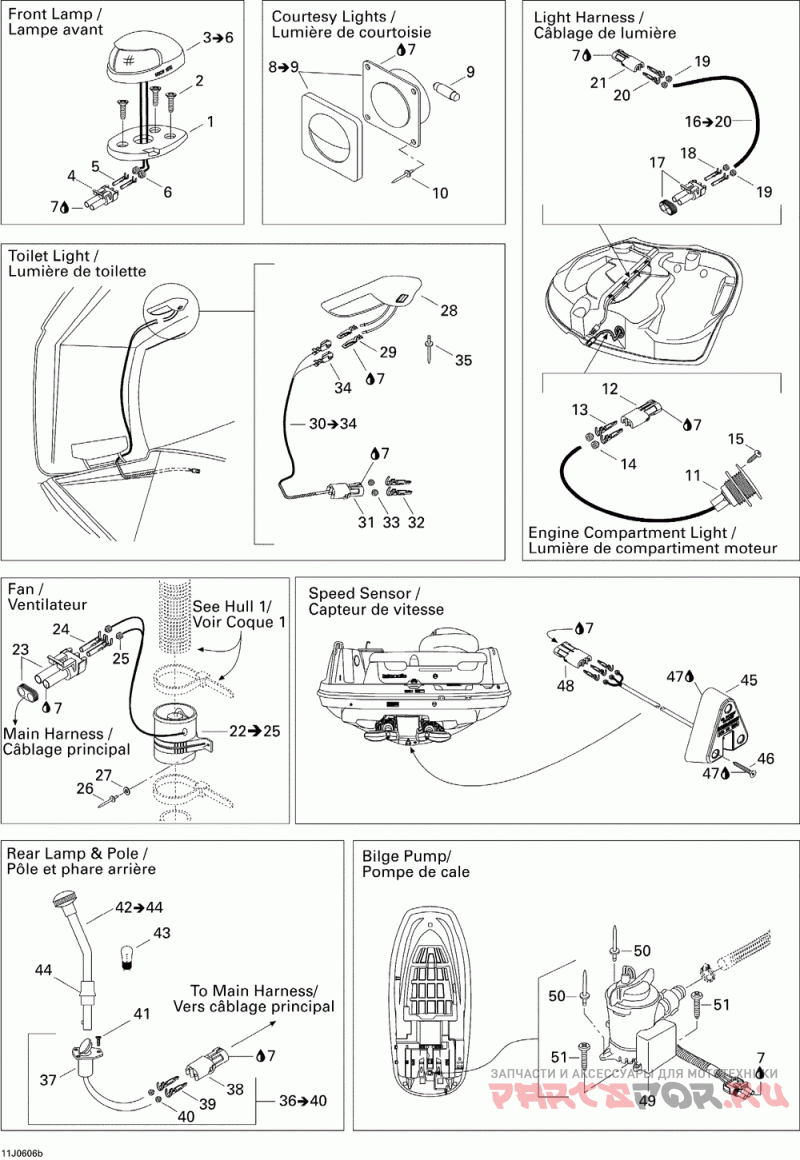

Электрика 2

Sea-Doo (Bombardier) Islandia 220

Sea-Doo (Bombardier)
#oem кодцена
1
204470072
Supp.phare Av. *supp-lamp Front ( )
2
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
3
204470407
Phare Navig.ass*lamp-navig.assy(3153b1) (includes 3 To 6 )
3
204470409
Phare Navig.ass*lamp-navig.assy (3153b1) (includes 3 To 6 )
4
409209500
Logement Femel.*housing-femal. ( )
5
278001014
Cosse Femelle *terminal-femal ( )
6
278001013
Joint De Fil *seal-wire ( )
7
293550004
Graisse Dielect*grease-dielect Dc4 ( )
8
204470026
Lum.courtoisie *light-courtesy (includes 8 To 9 )
9
204470081
Ampoule *bulb ( )
10
293150032
Rivet-pop 1/8 *rivet-pop 1/8 ( )
11
204470412
Lum.comp.moteur*light-eng.compart. ( )
12
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
13
278000222
Cosse Male *terminal-male ( )
14
278000218
Joint De Fil *seal-wire ( )
15
241142560
Screw-pt.hex.flange K40 X 25 ( )
16
204470551
Cablage-lumiere*harness-light (includes 16 To 20 )
17
278000220
Bloc 2 Circ.mal*housing-tab(m) ( )
18
409007300
Cosse Femelle *terminal-femal. ( )
22
204470108
Ventilateur Ass*fan-assy. (includes 22 To 25 )
24
278000223
Cosse Femelle *terminal-femal ( )
26
293150011
Rivet-pop 3/16 *rivet-pop 3/16 ( )
27
234052600
Washer-flat Din.9021b-a2 ( )
28
204470414
Lum.comp.toilet*light-toilet Comp. ( )
29
204470553
Cosse Male *terminal-male ( )
35
293150029
Rivet-pop 5/32 *rivet-pop 5/32 ( )
36
204471177
Base Phare Arr.*base Assy-rear Lamp (includes 36 To 40 )
41
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
42
204470816
"pole Phare *pole-lamp/stern 84""" (includes 42 To 44 )
43
204470053
Ampoule *bulb ( )
44
204470350
Collet *collar ( )
45
278001993
Capteur Vitesse*sensor-speed ( )
46
211000021
Screw-tri.plask Pan.hd.phil. ( )
48
278000281
Bloc 3 Circ.fem*housing-tab ( )
49
204470562
Pompe Cale *pump-bilge ( )
51
250000090
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
