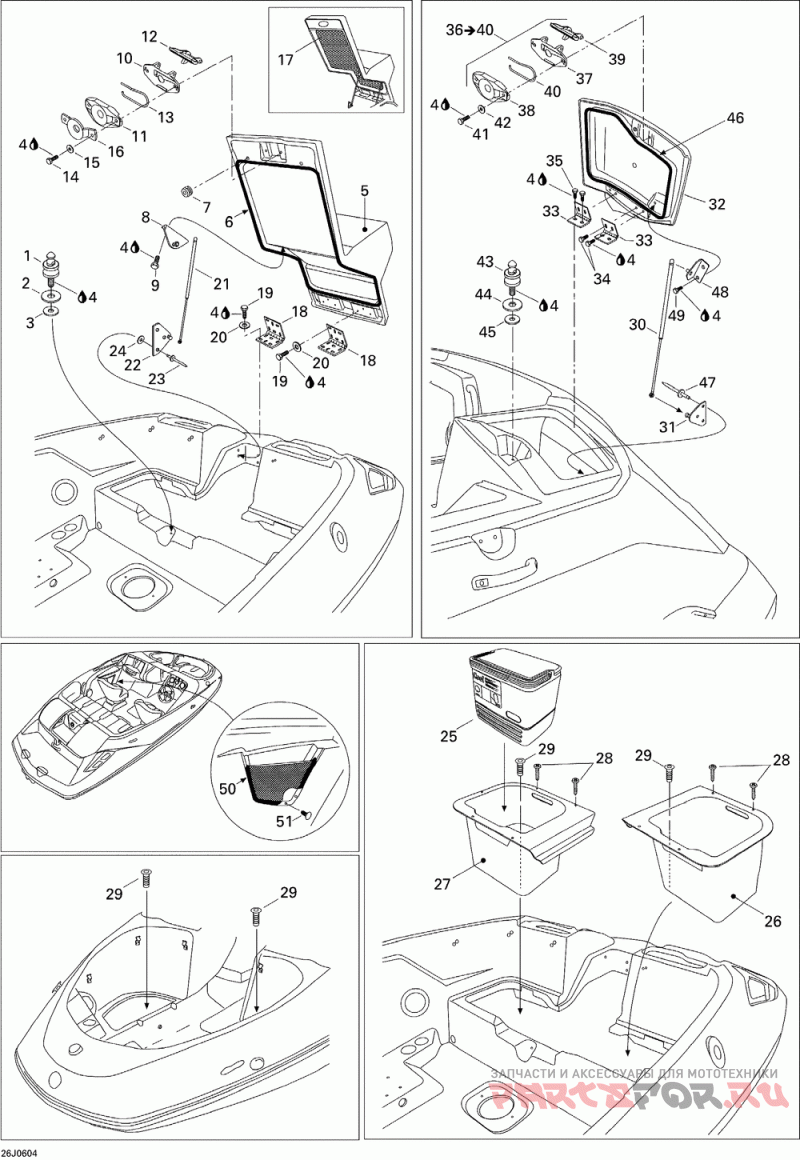

09- storage compartment

Sea-Doo (Bombardier) Challenger CS TOWER, Edition 2

Sea-Doo (Bombardier)
#oem кодцена
1
291002147
Ergot D Ancrage*stud-latch ( )
2
234002600
Washer-flat Din.9021b-a2 ( )
3
291000628
Rondelle Caout.*washer-rubber ( )
4
293800060
Loctite 243
5
204072561
Couv.moteur*cover-eng.assy. ( )
6
293200093
Anneau Neoprene*neoprene Seal ( )
7
293720017
Passe-fils *grommet ( )
9
207151660
Screw-hex.cap Din.933a2 ( )
10
269700076
Couv.loquet *cover-latch ( )
11
269700109
Loquet Assemble*latch Ass Y ( )
12
269700077
Levier Loquet *lever-latch ( )
13
269700017
Ressort Loquet *spring-latch ( )
14
207162560
Screw-hex.cap Din.933a2 ( )
15
234061600
Washer-flat Din.125a-a2 ( )
16
204070952
Protect.loquet *protector-latch ( )
17
204072083
Mousse Insonor.*foam-acoustic ( )
18
204070127
Charniere *hinge ( )
21
204071959
Amortisseur*shock-gas ( )
22
204071673
Supp.amort.*bracket-shock/flat ( )
23
204130014
Rivet-pop 3/16 *rivet-pop 3/16 ( )
24
234051600
Washer-flat Din.125a-a2 ( )
25
204072086
Glacire-15l.*cooler-16 Qt. ( )
26
204072090
Boite Rangem.*box-storage/port-rear (port Side )
27
204072836
Boite Rangem.*box-storage/stbd-rear (starboard )
28
204100049
"screw-tapp.ctsk.fl.hd.ph.#8 X 1""" ( )
29
204071783
Raccord-drain*fitting-drain ( )
30
204072218
Amortisseur*shock-gas ( )
31
204072219
Supp.amort.*bracket-shock/rh ( )
31
204072220
Supp.amort.*bracket-shock/lh ( )
32
204072460
Couver.range.*lid-storage/port-rear (port Side )
32
204072461
Couver.range.*lid-storage/stbd-rear (starboard )
33
204612769
Charn.platef.*hinge-sundeck ( )
34
207161260
Screw-hex.cap Din.933a2 ( )
35
207161660
Screw-hex.cap Din.933a2 ( )
36
204070577
Loquet Ass. *latch Assy-rework (includes 36 To 40 )
46
293200020
Anneau Etanche *seal-tray ( )
47
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
51
293730006
Dard Noir *dart-black ( )
