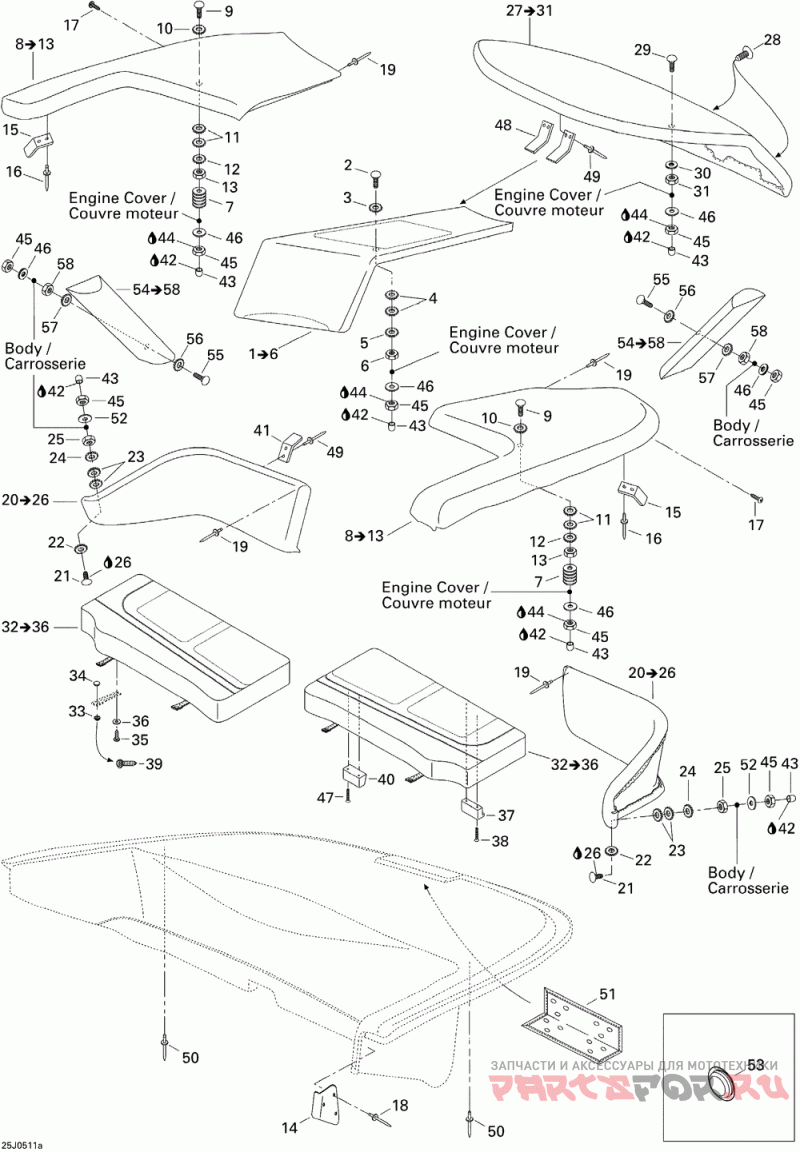

Сидение 1

Sea-Doo (Bombardier) Utopia 205

Sea-Doo (Bombardier)
#oem кодцена
1
204612822
Couss.platef.*cushion-sundeck/cent. (includes 1 To 6 )
2
204000130
Bolt-elevator ( )
3
211200054
Washer-lock Toothed Din.6797a-a2 ( )
4
234381608
Washer-lock Toothed Din.6797a-a2 ( )
5
234461608
Washer-lock Serrated Din.6798a-a2 ( )
6
204100060
Nut-jam Hexagonal 1/4-20 Ss ( )
7
211200029
Washer-flat Plastic ( )
8
204612823
Couss.platef.*cushion-sundeck/port (includes 8 To 13 )
8
204612824
Couss.platef.*cushion-sundeck/stbd. (includes 8 To 13 )
9
204100088
"bolt-elevator 1/4-20 X 1 1/4"" Ss" ( )
14
204611599
Bouch.garnit. *cap-upholstery ( )
14
204611600
Bouch.garnit. *cap-upholstery ( )
15
204130029
Pince Fendue*clip-keyhole/slotted ( )
16
293150006
Rivet-pop 1/8 *rivet-pop 1/8 ( )
17
211000021
Screw-tri.plask Pan.hd.phil. ( )
18
293150037
Rivet Avdel *rivet-avdel 3/16 ( )
19
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
20
204612825
Doss.platef.*backrest-sundeck/port (includes 20 To 26 )
20
204612826
S.platef.*backrest-sundeck/stbd. (includes 20 To 26 )
26
293800060
Loctite 243
27
204612827
Couss.platef.*cushion-sundeck/rear (includes 27 To 31 )
28
293730006
Dard Noir *dart-black ( )
29
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2""" ( )
32
204612830
Coussin Assem.*cushion Assy/port (includes 32 To 36 )
32
204612831
Coussin Assem.*cushion Assy/stbd. (includes 32 To 36 )
33
204000083
Att.press.base *snap-base ( )
34
204611609
Att.press.couv.*snap-cover ( )
35
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4""" ( )
36
211200019
Washer-flat 1/4 Ss-316 ( )
37
204611940
Loq.base Siege*catch-seat Base ( )
39
202000159
"screw-stud Tapp. 3/8"" Ss" ( )
40
204611805
Loquet Base*catch-seat Base ( )
41
204611531
Pince-retenue *clip-retaining ( )
42
413705800
Loctite 414 *loctite-414 ( )
43
204130008
Bouchon-plast.*cap-plastic/white ( )
45
211100026
Nut-hexagonal 1/4-20 ( )
46
204100089
Rondel.plate *washer-flat ( )
47
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
48
204611597
Plaque-platef. *plate-sundeck ( )
49
293150008
Rivet-pop 3/16 *rivet-pop 3/16 ( )
50
293150011
Rivet-pop 3/16 *rivet-pop 3/16 ( )
51
204612869
Cache-charn. *cover-hinge ( )
52
204100139
Washer-fender/s.s. ( )
53
291000279
Bouchon Noir *plug-black ( )
54
204612836
Coussin.son.*soundpad Assy/stbd. (includes 54 To 58 )
54
204612837
Coussin.son.*soundpad Assy/port (includes 54 To 58 )
