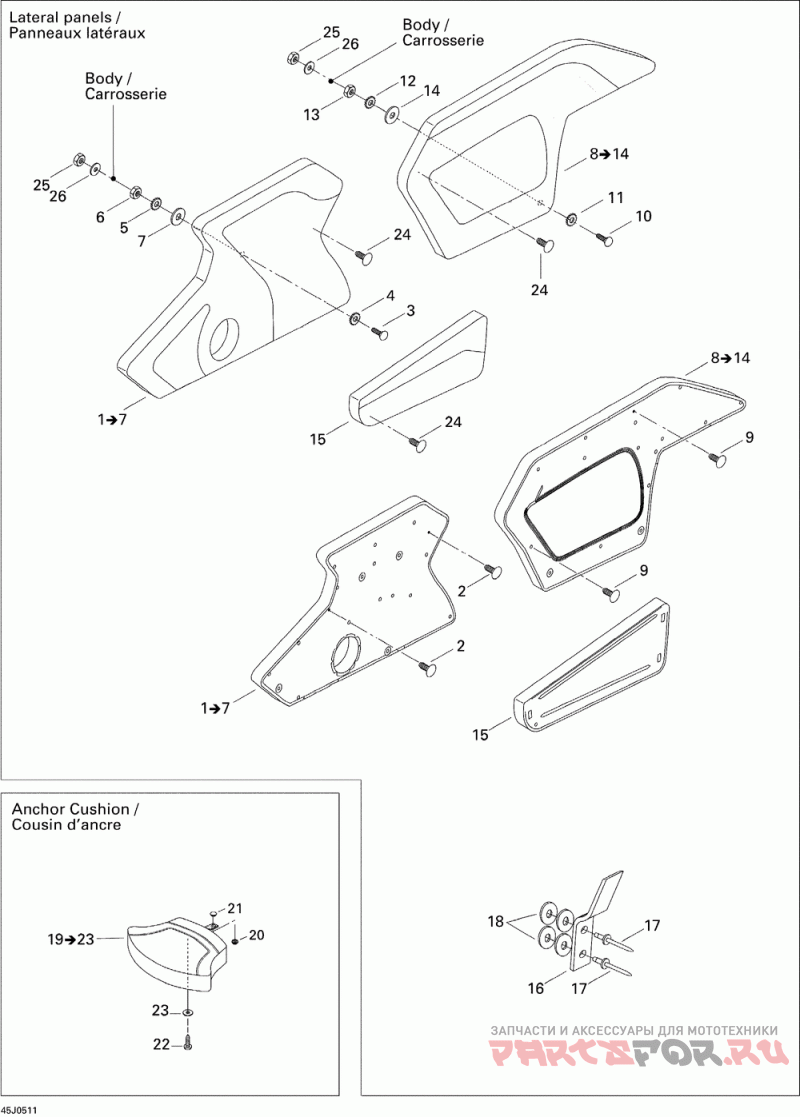

09- lateral panel and anchor cushion

Sea-Doo (Bombardier) Utopia 205

Sea-Doo (Bombardier)
#oem кодцена
1
204612959
Pann.later.*panel-side/port-front (includes 1 To 7 )
1
204612963
Pann.later.*panel-side/stbd-front (includes 1 To 7 )
2
293730014
Dard Noir *dart-black ( )
3
204000130
Bolt-elevator ( )
4
211200054
Washer-lock Toothed Din.6797a-a2 ( )
5
234461608
Washer-lock Serrated Din.6798a-a2 ( )
6
204100060
Nut-jam Hexagonal 1/4-20 Ss ( )
7
234062600
Washer-flat Din.9021b-a2 ( )
8
204612960
Pann.later.*panel-side/port-rear (includes 8 To 14 )
8
204612964
Pann.later.*panel-side/stbd-rear (includes 8 To 14 )
10
204100143
"bolt-elevator 1/4-20 X 2""(full Thread)" ( )
15
204612961
Panneau-inf.*panel-lower/port ( )
15
204612965
Panneau-inf.*panel-lower/stbd. ( )
16
204130048
"pince En ""s"" *clip""s""" ( )
17
204130014
Rivet-pop 3/16 *rivet-pop 3/16 ( )
18
234051600
Washer-flat Din.125a-a2 ( )
19
204612967
Coussin Ass.*cushion Assy-anchor Lock. (includes 19 To 23 )
20
204000083
Att.press.base *snap-base ( )
21
204611609
Att.press.couv.*snap-cover ( )
22
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4""" ( )
23
211200019
Washer-flat 1/4 Ss-316 ( )
25
243163560
Screw-plastite Hex.wr.hd.unsl ( )
26
204100089
Rondel.plate *washer-flat ( )
