09- engine compartment для катеров Sea-Doo (Bombardier) Utopia 205 (2005)

Москва и регионы России

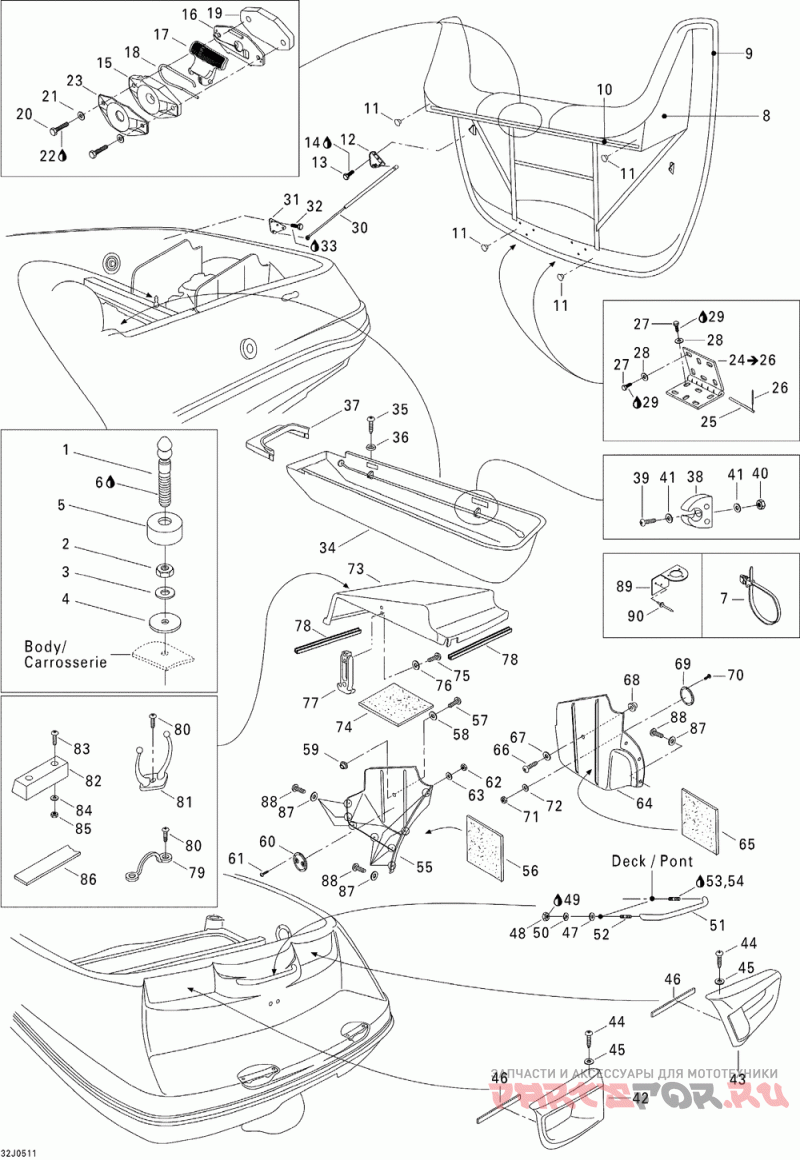

09- engine compartment

Sea-Doo (Bombardier) Utopia 205

09- engine compartment

#

oem код

название

цена

1

Ergot D Ancr.*stud-latch/double ( )

Ergot D Ancr.*stud-latch/double ( )

2

Nut-jam Hexagonal Din.439b-a2 ( )

Nut-jam Hexagonal Din.439b-a2 ( )

3

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

4

Rondelle Caout.*washer-rubber ( )

Rondelle Caout.*washer-rubber ( )

5

Tampon Caout. *pad-rubber ( )

Tampon Caout. *pad-rubber ( )

6

Loctite 243

Loctite 243

7

Tie Rap / Dard*tie Rap W/dart ( )

Tie Rap / Dard*tie Rap W/dart ( )

8

Couver.moteur*cover-engine ( )

Couver.moteur*cover-engine ( )

9

Anneau Etanche *seal-tray ( )

Anneau Etanche *seal-tray ( )

10

Anneau Neoprene*neoprene Seal ( )

Anneau Neoprene*neoprene Seal ( )

11

Passe-fils *grommet ( )

Passe-fils *grommet ( )

12

Supp.amort.*bracket-shock/angled ( )

Supp.amort.*bracket-shock/angled ( )

13

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

15

Couv.loquet *cover-latch ( )

Couv.loquet *cover-latch ( )

16

Loquet Assemble*latch Ass Y ( )

Loquet Assemble*latch Ass Y ( )

17

Levier Loquet *lever-latch ( )

Levier Loquet *lever-latch ( )

18

Ressort Loquet *spring-latch ( )

Ressort Loquet *spring-latch ( )

19

Cale Epaisseur *shim ( )

Cale Epaisseur *shim ( )

20

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

21

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

23

Protect.loquet *protector-latch ( )

Protect.loquet *protector-latch ( )

24

Charniere *hinge (includes 24 To 26 )

Charniere *hinge (includes 24 To 26 )

25

Tige Charniere *hinge-rod ( )

Tige Charniere *hinge-rod ( )

26

Goupille Fendue*pin-cotter ( )

Goupille Fendue*pin-cotter ( )

27

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

30

Amortisseur*shock-gas ( )

Amortisseur*shock-gas ( )

31

Supp.amort.*bracket-shock/flat ( )

Supp.amort.*bracket-shock/flat ( )

32

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

34

Rangem.siege *storage-seat ( )

Rangem.siege *storage-seat ( )

35

"screw-tapp.ctsk.fl.hd.ph.#8 X 1""" ( )

"screw-tapp.ctsk.fl.hd.ph.#8 X 1""" ( )

36

Rondelle-finit.*washer-finishing ( )

Rondelle-finit.*washer-finishing ( )

37

Bouchon-bout *cap-end ( )

Bouchon-bout *cap-end ( )

38

Support De Tige*support-pole ( )

Support De Tige*support-pole ( )

39

Screw-pan Hd.ph.din.7985a-a2 ( )

Screw-pan Hd.ph.din.7985a-a2 ( )

40

Nut-stop Elastic Din.985a2 ( )

Nut-stop Elastic Din.985a2 ( )

41

Washer-flat Din.433a2 ( )

Washer-flat Din.433a2 ( )

42

Couv.diffus.*cover-vent Assy/port ( )

Couv.diffus.*cover-vent Assy/port ( )

43

Couv.diffus.*cover-vent Assy/stbd. ( )

Couv.diffus.*cover-vent Assy/stbd. ( )

48

Nut-hex.3/8-16 ( )

Nut-hex.3/8-16 ( )

49

Loctite 271 *loctite-271 ( )

Loctite 271 *loctite-271 ( )

50

Washer-lock Helical Din.127b-a2 ( )

Washer-lock Helical Din.127b-a2 ( )

51

Poign.maint. *handle-grab ( )

Poign.maint. *handle-grab ( )

52

Goujon Filete *stud-threaded ( )

Goujon Filete *stud-threaded ( )

54

Appret Loctite *primer-loctite ( )

Appret Loctite *primer-loctite ( )

56

Barr.mur Bruit*barrier-sound ( )

Barr.mur Bruit*barrier-sound ( )

57

Screw-pan Hd.ph.din.7985a-a2 ( )

Screw-pan Hd.ph.din.7985a-a2 ( )

58

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

59

Retenir-courr.*keeper-strap ( )

Retenir-courr.*keeper-strap ( )

60

Plaque-font *plate-deck ( )

Plaque-font *plate-deck ( )

61

Screw-ctsk.fl.hd.ph.din.965a-a2 ( )

Screw-ctsk.fl.hd.ph.din.965a-a2 ( )

63

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

73

Bouch.cloison*cap-bulkhead ( )

Bouch.cloison*cap-bulkhead ( )

77

Loquet-caout. *latch-rubber ( )

Loquet-caout. *latch-rubber ( )

79

Ancrage Courroi*straps-eye ( )

Ancrage Courroi*straps-eye ( )

80

Screw-plastite Pan Hd.ph ( )

Screw-plastite Pan Hd.ph ( )

81

Attache Pole *clip-pole ( )

Attache Pole *clip-pole ( )

82

Loquet Base*catch-seat Base ( )

Loquet Base*catch-seat Base ( )

83

Screw-pan Hd.ph.din.7985a-a2 ( )

Screw-pan Hd.ph.din.7985a-a2 ( )

84

Washer-flat Din.125a ( )

Washer-flat Din.125a ( )

85

Nut-stop Elastic Din.985a2 ( )

Nut-stop Elastic Din.985a2 ( )

88

Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )

Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )

89

Supp.rempliss. *bracket-fill/oil ( )

Supp.rempliss. *bracket-fill/oil ( )

90

Rivet *rivet(tec-plus) ( )

Rivet *rivet(tec-plus) ( )
