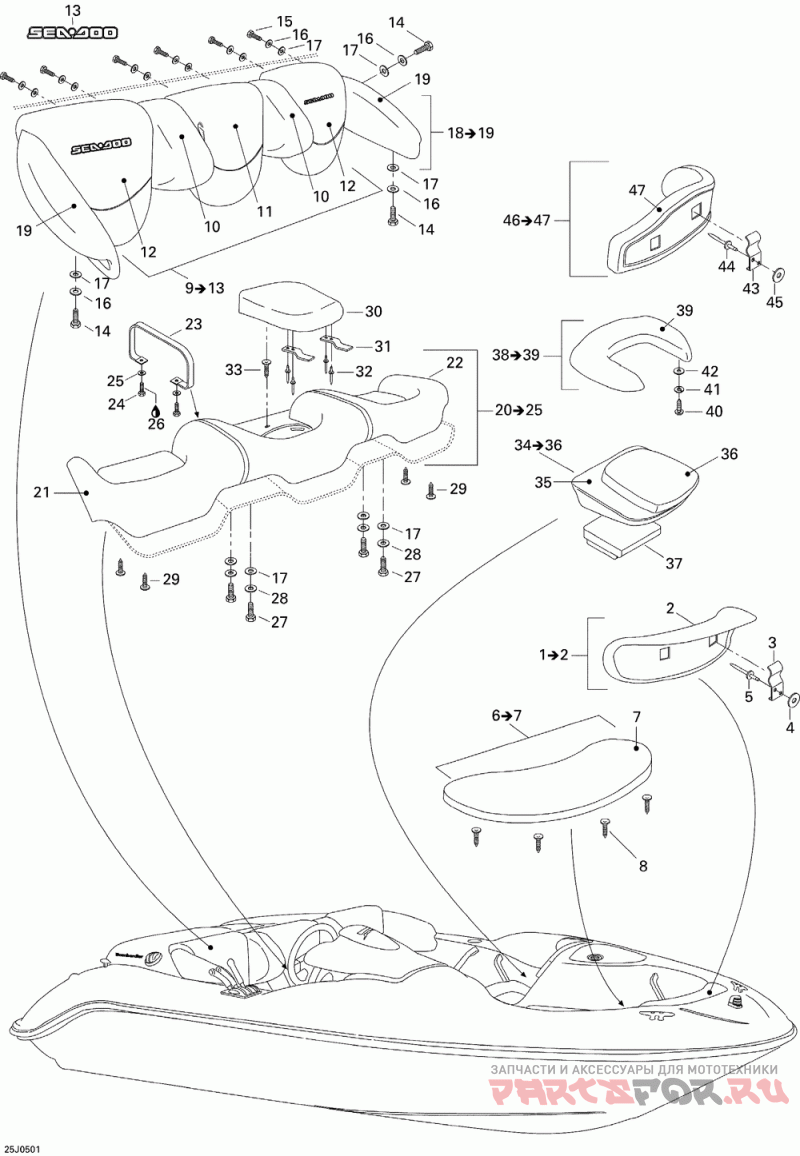

Сиденье

Sea-Doo (Bombardier) Sportster LE DI

Sea-Doo (Bombardier)
#oem кодцена
1
204611715
Doss.avant *backrest-front (includes 1 To 2 )
3
269000388
Support Siege *support-seat ( )
4
234061600
Washer-flat Din.125a-a2 ( )
5
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
9
204612886
Dossier Arr.*backrest Assy. (includes 9 To 13 )
10
204611720
Hous.doss. *cover-backrest ( )
11
204612887
Hous.doss. *cover-backrest/cent. ( )
12
204612888
Hous.doss. *cover-backrest/stbd ( )
12
204612889
Hous.doss. *cover-backrest/port ( )
13
204901090
Logo Sea Doo D*logo Sea-doo/seat ( )
14
207364060
A9650022357ap Din.933a2 Scotch Grip ( )
16
234062600
Washer-flat Din.9021b-a2 ( )
17
204100139
Washer-fender/s.s. ( )
18
204611724
Appui-bras *armrest Assy/port (includes 18 To 19 )
20
204612618
Siege Arriere*seat-rear Assy. (includes 20 To 25 )
21
204611729
Hous.siege *cover-seat/rear ( )
22
204611730
Coussin Ass.*cushion Assy. ( )
23
204611732
Courroie *strap ( )
24
207161660
Screw-hex.cap Din.933a2 ( )
26
293800060
Loctite 243
29
293730021
Dard *dart ( )
30
204612688
Coussin Ass.*cushion Assy. ( )
31
204130048
"pince En ""s"" *clip""s""" ( )
32
293150011
Rivet-pop 3/16 *rivet-pop 3/16 ( )
34
204613172
Siege Surveil.*seat-keeper Assy. (includes 34 To 36 )
35
204610557
Housse Base Sie*cover-seatbase ( )
38
204611735
Anneau Sieg.*ring-keep.seat (includes 38 To 39 )
39
204611736
Hous.anneau*cover-ring ( )
40
209663860
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
41
234161601
Washer-lock Helical Din.127b-a2 ( )
46
204611652
Doss.surv. *keeper-backrest (includes 46 To 47 )
