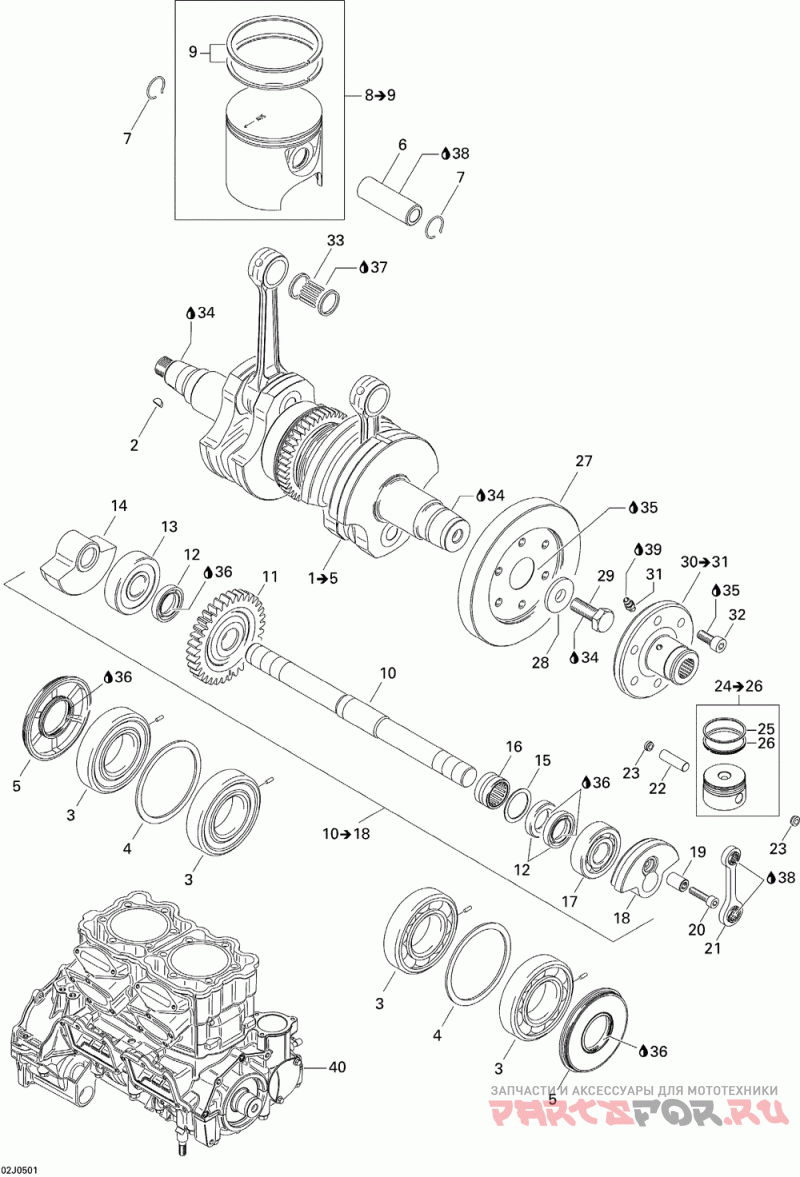

Коленвал и поршни

Sea-Doo (Bombardier) Sportster LE DI

Sea-Doo (Bombardier)
#oem кодцена
1
421000571
Vilbreq.refait *crank-rebuild 947di (includes 1 To 5 )
2
420246055
Clavette *key-woodruff ( )
3
420432271
Roulement Bille*ball Bearing ( )
4
420926190
Rondelle *washer ( )
5
420931731
Oil Seal ( )
6
420916397
Piston Pin ( )
7
420845465
Circlip #21 *circlip-#21 ( )
8
420889045
Piston Ass. 87.88mm *piston-assy. (includes 8 To 9 )
8
420889046
Piston Ass. 88.16mm *piston-assy. (includes 8 To 9 )
9
420815267
Segment R *ring-r ( )
9
420815268
Segment R *ring-r ( )
10
420837446
Arbre Balan.ass*shaft-bal.assy (includes 10 To 18 )
10
420837382
Arbre Balanc. *shaft-balance ( )
11
420834360
Engrenage Balan*gear-balance ( )
12
420930267
Anneau Etanche *seal-oil ( )
13
420932097
Roulement Bille*ball Bearing ( )
16
420232555
Roulement Aigui*needle Bearing ( )
17
420932090
Ball Bearing ( )
18
420818955
Contre-poids *mass-balance ( )
19
420921460
Goupille *pin-compressor ( )
20
420640690
Vis Creuse 6pan*screw-socket ( )
21
420917505
Bielle *conrod-assy ( )
22
420916430
Goupille Piston*pin-piston ( )
23
420847940
Coussinet *bushing ( )
24
420888550
"piston 38, 95mm *piston-assy" (includes 24 To 26 )
25
420215970
Segment Rect. *ring-rectangular ( )
26
420215960
Segment Racleur*ring-scraper Oil ( )
27
420958083
Accouplement *coupling-silver ( )
28
420827782
Rondelle *washer ( )
29
420640120
Vis Hex. *screw-hex. ( )
30
420958123
Volant Inertie *flange-coupling (includes 30 To 31 )
31
420499113
Graisseur *fitting-grease ( )
32
205082060
Screw-socket Hd.din.912a2 ( )
33
420832553
Roulement Aigui*needle Bearing ( )
34
293800060
Loctite 243
35
413711400
Герметик Loctite-648
36
413707000
Dow Corning 111*dow Corning 111 ( )
37
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral ( )
39
293550010
Graisse Synth. *grease-synth. ( )
40
421000416
Ens.carter-cyl.*short Block 947-di ( )
