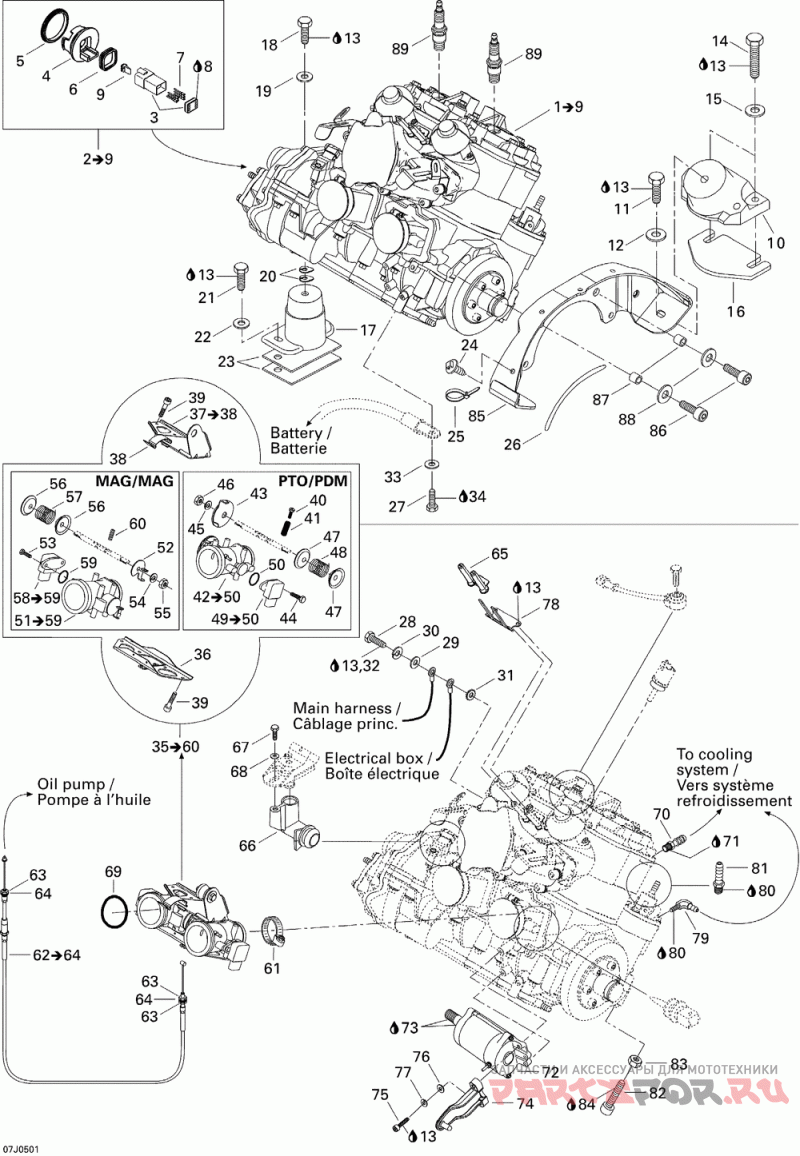

Двигатель

Sea-Doo (Bombardier) Sportster LE DI

Sea-Doo (Bombardier)
#oem кодцена
3
270000137
Bloc 6 Circ.fem*housing-tab ( )
5
420630800
Joint Etanche *gasket ( )
6
293200055
Joint Etanche *gasket ( )
7
278000631
Cosse Male *terminal-male ( )
8
293550004
Graisse Dielect*grease-dielect Dc4 ( )
9
278000735
Cale 6 Circ.fem*wedge-6 Ways F ( )
10
270000720
Tampon Ancrage *mount-rubber ( )
11
207181660
Screw-hex.cap Din.933a2 ( )
12
234082600
Washer-flat Din.9021b-a2 ( )
13
293800060
Loctite 243
14
207184060
Screw-hex.cap Din.933a2 ( )
15
234081600
Washer-flat Din.125a-a2 ( )
16
270000122
Cale Epaisseur *shim-0.3mm ( )
16
270000123
Cale Epaisseur *shim-1.3mm. ( )
17
270000722
Tampon Ancrage *mount-rubber ( )
18
207182060
Screw-hex.cap Din.933a2 ( )
20
270000024
Cale Epaisseur *shim-0.4mm ( )
20
270000025
Cale Epaisseur *shim-1.3mm ( )
23
204250048
Cale Epaisseur *shim-0.3mm ( )
24
293730018
Dard D Ancrage *dart-mount ( )
25
414115200
Tie-rap 180 Mm ( )
26
271000110
Moul.protect. *trim-protect. ( )
27
207302060
Винт Din.933a2 (отпуск.по 10шт)
28
207162560
Screw-hex.cap Din.933a2 ( )
29
234062600
Washer-flat Din.9021b-a2 ( )
30
234161601
Washer-lock Helical Din.127b-a2 ( )
31
234461608
Washer-lock Serrated Din.6798a-a2 ( )
32
293550033
Synthetic Grease 10x14oz ( )
33
234001600
Washer-flat Din.125a-a2 ( )
35
270600058
Throttle Body Twin Bore (includes 35 To 60 )
36
270600069
Support Inf. *support-lower ( )
37
270600070
Support Ass. *support-ass Y (includes 37 To 38 )
38
270600073
Attache Ressort*bracket-latch ( )
39
205051060
Screw-socket Hd.din.912a2 ( )
40
270600074
Vis Ajustement *adjuster-screw ( )
41
270600075
Ressort *spring ( )
42
270600076
Carter Accelera*body-throttle (includes 42 To 50 )
43
270600077
Levier Acc.ass.*lever-throt.as ( )
44
270600078
Screw-potentiometer M4 ( )
46
232061600
Nut-hexagonal Din.934a2 ( )
47
270600079
Guide Ressort *spring-guide ( )
48
270600080
Ressort *spring ( )
49
270000251
Capteur Acceler*sensor-throttl (includes 49 To 50 )
50
270000544
Кольцо
51
270600081
Carter Accelera*body-throttle (includes 51 To 59 )
52
270600082
Levier Capteur *lever-pick-up ( )
57
270600083
Ressort *spring ( )
60
270600084
Vis De Palentie*idle-screw ( )
61
293650079
Bride Serrage *clamp-norma ( )
62
270000546
Cable Injection*cable-inject. (includes 62 To 64 )
63
232160600
Nut-jam Hexagonal Din.439b-a2 ( )
64
234061600
Washer-flat Din.125a-a2 ( )
65
278001512
Isolateur *insulator ( )
66
270600019
Adapt. Capteur *adaptor-valve ( )
67
243041660
Screw-plastite Hex.unsl ( )
68
211200035
Washer-flat ( )
69
293250065
Кольцо
70
293710066
Raccord Male *connector-male ( )
71
293800013
Scellant Tuyau *sealant-pipe ( )
72
278001937
Demarreur Ass. *starter-assy. ( )
73
293550010
Graisse Synth. *grease-synth. ( )
74
273000227
Supp.silenc.adm*supp.silenc ( )
75
205063560
Screw-socket Hd.din.912a2 ( )
78
278001662
Plaque Masse *plate-ground ( )
79
293700016
Raccord Coude90*fitting-elbow ( )
81
293710082
Raccord Droit *fitting-straight ( )
82
205003060
Screw-socket Hd.din.912a2 ( )
83
232001600
Nut-hexagonal Din.934a2 ( )
84
293800005
Loctite 271 *loctite-271 ( )
85
270000515
Support Moteur *support-engine ( )
86
205582560
Screw-socket Din.912a2 S.grip ( )
87
270000453
Douille *bushing ( )
89
278001650
Bougie Allumage*plug-spark Zfr4f11 ( )
