Электрика 2

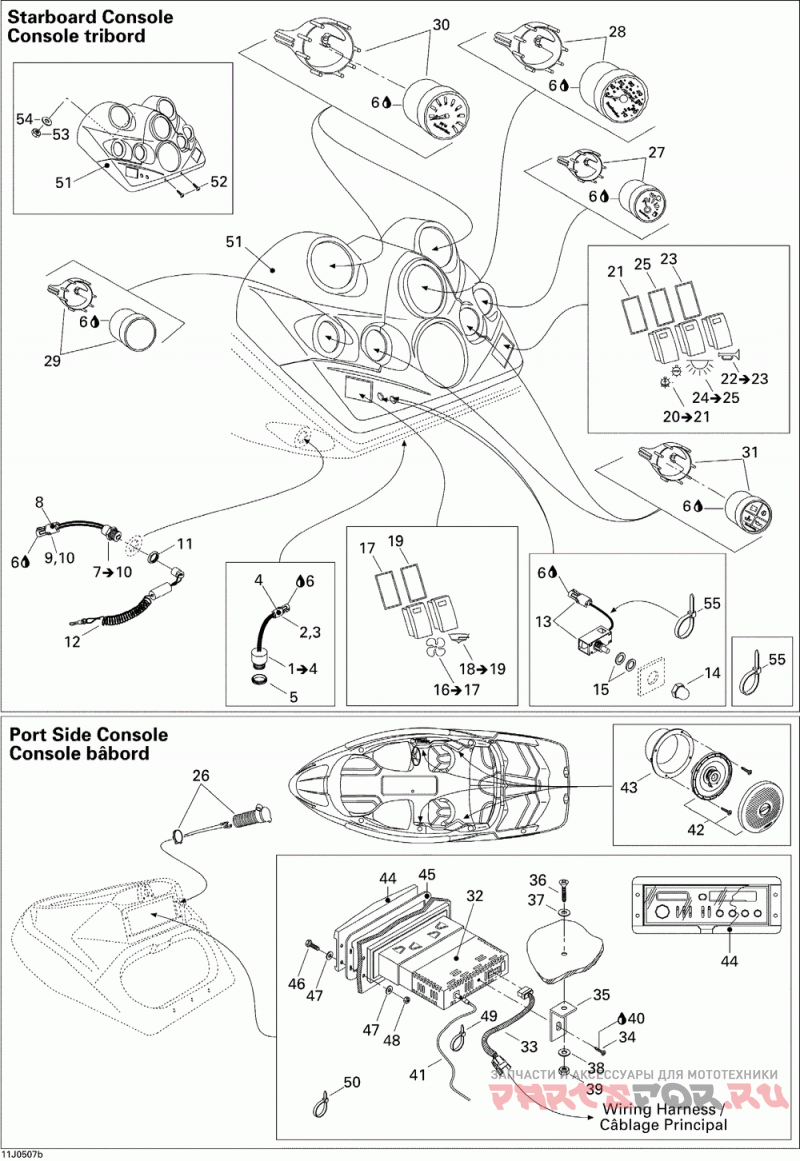

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC

Sea-Doo (Bombardier)
#oem кодцена
1
204470913
Avertisseur Ass*buzzer-assy. (includes 1 To 4 )
2
278000222
Cosse Male *terminal-male ( )
3
278000218
Joint De Fil *seal-wire ( )
4
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
5
278000707
Ecrou Avert. *nut-horn ( )
6
293550004
Graisse Dielect*grease-dielect Dc4 ( )
7
278002325
Interrupteur *safety Switch (includes 7 To 10 )
8
278000273
Bloc 3 Circ.mal*housing-tab ( )
10
278000223
Cosse Femelle *terminal-femal ( )
11
278000508
Ecrou Securite *nut-saf.switch ( )
12
278002199
Cordon Securite*safety Lanyard ( )
13
278000621
Inter.allum.ga.*switch-ignit. ( )
14
278000565
Capuchon Demar.*cap-igni.start ( )
15
204100027
Rondelle Plate *washer-flat ( )
16
204470011
Inter.vent. *switch-fan (includes 16 To 17 )
27
204471128
Cadran Essen.*gauge-fuel ( )
28
204470957
Cadran Vitesse*gauge-speedo ( )
29
204470969
Capuch. Jauge*cap-gauge ( )
30
204470958
Cadran Tachy.*gauge-tachometer ( )
31
204470959
Cadran Avert*gauge-warning/engine ( )
34
204100148
Screw-pan Hd.ph. M5x8 ( )
35
204470837
Support Radio *support-radio ( )
36
208662060
Screw-pan Hd.ph.din.7985a-a2 ( )
37
234061600
Washer-flat Din.125a-a2 ( )
38
234062600
Washer-flat Din.9021b-a2 ( )
39
232561600
Nut-stop Elastic Din.985-a2 ( )
40
293800060
Loctite 243
41
204470931
Antenne *antenna ( )
43
204470982
Couv.haut Parl.*cover-speaker Assy ( )
44
204470266
Couvercle Radio*cover-radio/rework ( )
45
204470257
Joint-radio Cov*gasket-radio Cover ( )
46
205442560
Screw-socket Bn.hd.iso.7380a2 ( )
47
234040600
Washer-flat Din.433a2 ( )
48
232541600
Nut-stop Elastic Din.985a2 ( )
49
293750001
Tie Rap 94mm *tie-rap 94mm ( )
50
293750002
Tie Rap 142mm *tie-rap 142mm ( )
51
204470997
Facia Assemble*fascia Assy. ( )
52
202000203
Screw-tapp.truss Hd.ph.m4.2x25 ( )
53
212000005
Nut-stop Elastic Ms-17830 ( )
54
234082600
Washer-flat Din.9021b-a2 ( )
