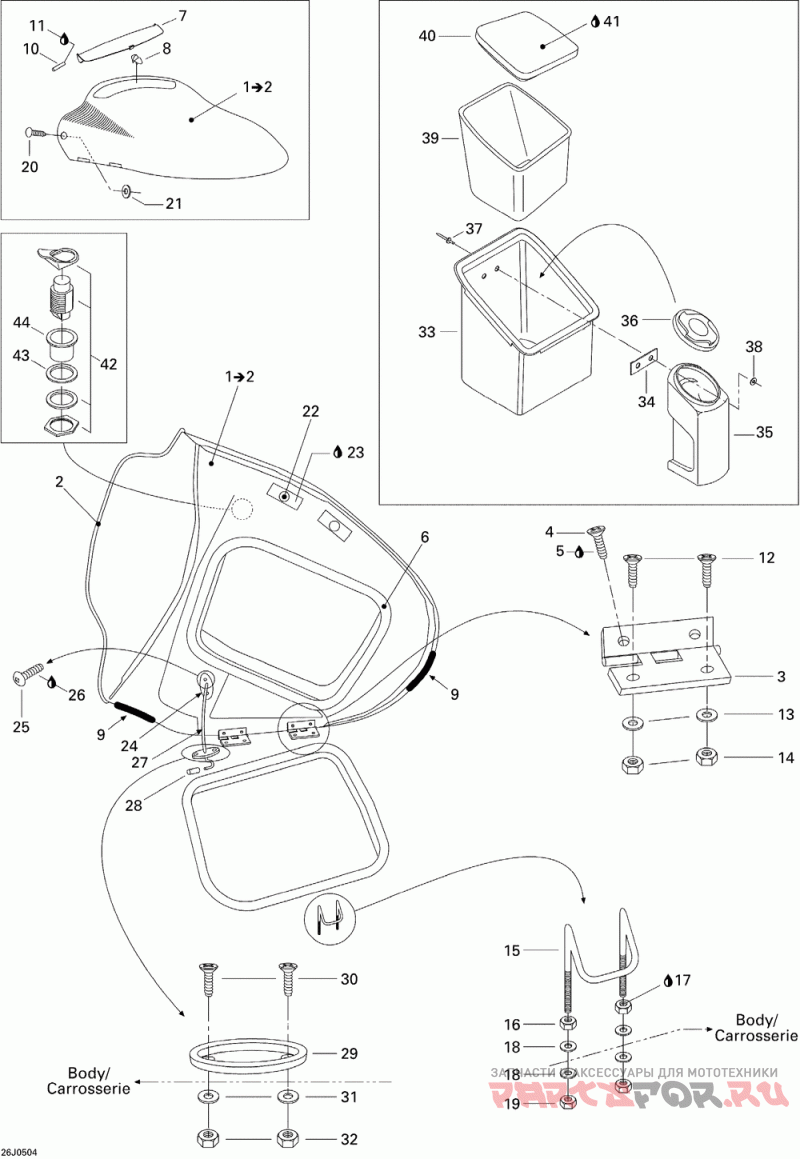

Передний капот

Sea-Doo (Bombardier) Challenger X, 250 Optimax

Sea-Doo (Bombardier)
#oem кодцена
1
204620217
Pare-brise Perc*windscr-perfor. (includes 1 To 2 )
1
204620218
Pare-brise Perc*windscr-perfor. (includes 1 To 2 )
2
204620100
Moulure *trim ( )
3
204620005
Charniere Cons.*hinge-console ( )
4
216141260
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
5
293800040
Loctite 425 *loctite-425 ( )
6
293200020
Anneau Etanche *seal-tray ( )
7
204620124
Deflecteur *deflector ( )
8
204620116
Butte-arriere *stopper-rear ( )
9
204620117
Joint Etanche *seal-waterproof ( )
10
204620126
Goupille Ressor*pin-roll ( )
11
413708300
Colle Tube 20gr*glue-tube 20gr ( )
12
208442060
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
13
234042600
Washer-flat Din.9021b-a2 ( )
14
232541600
Nut-stop Elastic Din.985a2 ( )
15
204620151
Crochet *hook ( )
16
232061600
Nut-hexagonal Din.934a2 ( )
17
293800060
Loctite 243
18
234062600
Washer-flat Din.9021b-a2 ( )
19
232561600
Nut-stop Elastic Din.985-a2 ( )
20
293730028
Dard *dart ( )
21
234000600
Washer-flat Din.433a2 ( )
22
204620295
Butee Caout. *stopper-rubber ( )
23
413705800
Loctite 414 *loctite-414 ( )
24
204620028
Porte Tige *holder-rod ( )
25
208441660
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
27
204620219
Tige Support *rod-support ( )
28
204620044
Capuchon *cap-pipe ( )
29
204620030
Arret De Tige *stop-rod ( )
33
269500416
Coffre Bagage *tray-storage ( )
34
293250037
Joint Etanche *gasket ( )
35
269500606
Boitier Extinct*housing-exting ( )
36
269500603
Cap Extincteur *cap-extinguish ( )
37
293150032
Rivet-pop 1/8 *rivet-pop 1/8 ( )
38
234032600
Washer-flat Din.9021b-a2 ( )
39
204630008
Mousse Glaciere*foam-icebox ( )
40
204630013
Couv.mousse Gla*cover-foam ( )
42
204070122
Ens.loquets *kit-latches ( )
43
204620045
Joint Compens. *gasket-conpens ( )
44
204620007
Ajout Loquet *insert-latch ( )
