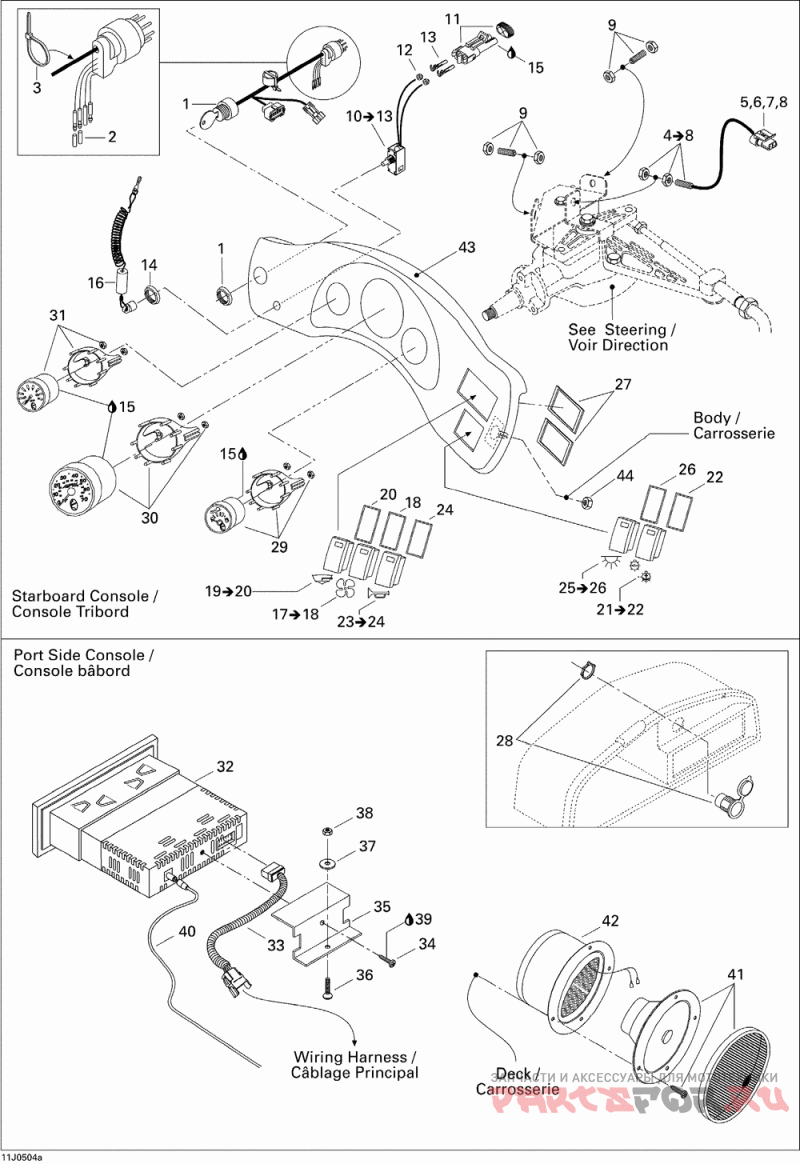

Электрика 1

Sea-Doo (Bombardier) Challenger X, 250 Optimax

Sea-Doo (Bombardier)
#oem кодцена
1
204470800
Harnais Instr.*harness-instrument ( )
2
204130033
Bouch.caout.*cap-rubber ( )
3
293750001
Tie Rap 94mm *tie-rap 94mm ( )
4
204470631
Capteur Ass. *sensor Assy. (includes 4 To 8 )
7
204470641
Etanche Cable *seal-cable ( )
8
278001481
Cosse Femelle *terminal-femal ( )
9
204470632
Actuateur *actuator-l.s.c. ( )
10
204470867
Inter.urgence*switch-safety (includes 10 To 13 )
11
278000220
Bloc 2 Circ.mal*housing-tab(m) ( )
12
278000218
Joint De Fil *seal-wire ( )
13
278000223
Cosse Femelle *terminal-femal ( )
14
278000099
Ecrou Securite *nut-saf.switch ( )
15
293550004
Graisse Dielect*grease-dielect Dc4 ( )
16
278001431
Cordon Securite*lanyard-safety ( )
17
204470011
Inter.vent. *switch-fan (includes 17 To 18 )
19
204470099
Inter.bilge. *switch-bilge (includes 19 To 20 )
21
204470100
Inter.lumiere *switch-light (includes 21 To 22 )
23
204470101
Inter.klaxon *switch-horn (includes 23 To 24 )
25
204470102
Inter.courtois.*switch-courtesy (includes 25 To 26 )
27
204470343
Plaque Blocage *plate-locking ( )
28
710001248
Outlet-dc ( )
29
204470960
Cadran Ess.*gauge-fuel/oil ( )
30
204470961
Cadran Vites.*speedometer ( )
31
204470962
Cadran Tachy.*gauge-tachometer ( )
34
204100148
Screw-pan Hd.ph. M5x8 ( )
35
204470688
Support-radio *support-radio ( )
36
208462060
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
37
234062600
Washer-flat Din.9021b-a2 ( )
38
232561600
Nut-stop Elastic Din.985-a2 ( )
39
293800060
Loctite 243
40
204470931
Antenne *antenna ( )
43
204470736
Fascia *fascia Assy. ( )
44
232581600
Nut-stop Elastic Din.985a2 ( )
