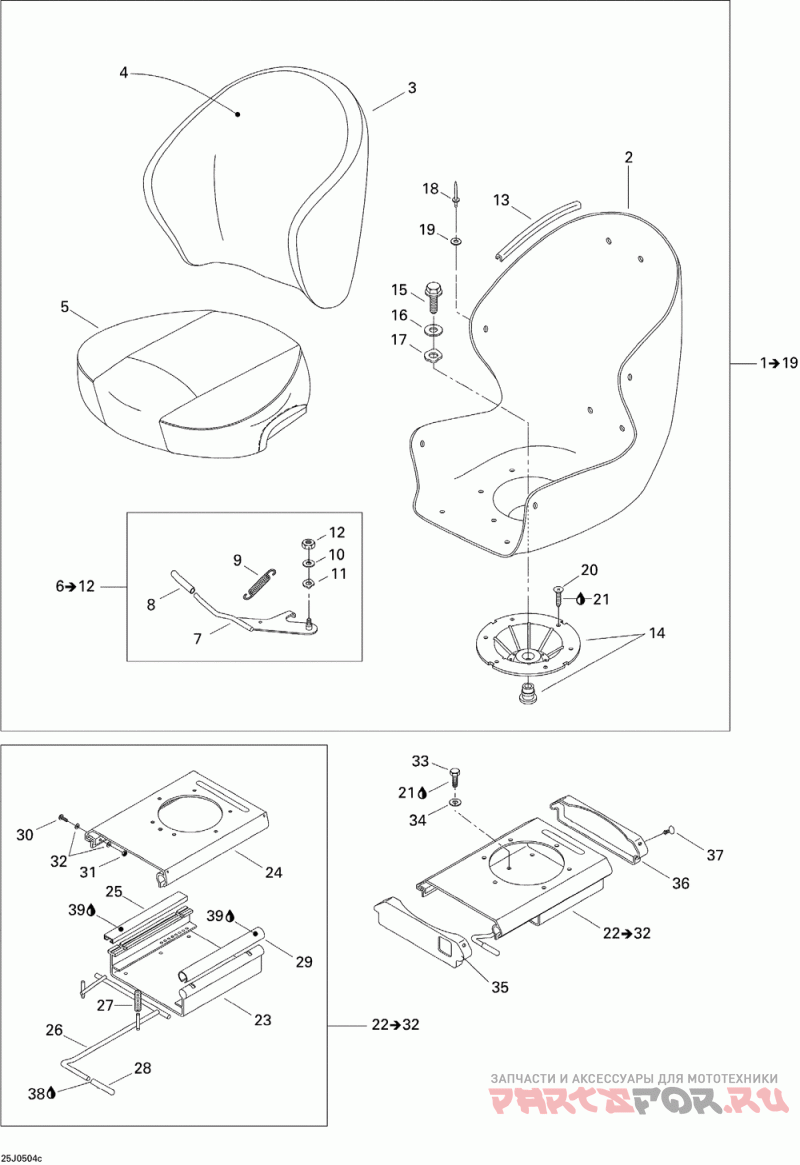

09- seat 3

Sea-Doo (Bombardier) Challenger X, 250 Optimax

Sea-Doo (Bombardier)
#oem кодцена
2
204611146
Деталь Base Siege *base-seat ( )
3
295501066
Деталь Couss.dossier *pad-backrest Assy. ( )
6
204610523
Деталь Bras Levier *arm Lever Assy. (includes 6 To 12 )
7
204610524
Деталь Bras Levier *arm-lever ( )
8
204610348
Деталь Poignee *handle ( )
9
204610349
Деталь Ressort *spring ( )
10
234061600
Деталь Washer-flat Din.125a-a2 ( )
11
211200059
Деталь Washer-three Wave ( )
12
232561600
Деталь Nut-stop Elastic Din.985-a2 ( )
13
204610371
Деталь Moulure Noire *trim-black ( )
14
204610513
Деталь Plaque Pivot *plate-swivel ( )
15
211000172
Деталь Screw-shoulder ( )
16
211200058
Деталь Washer-flat ( )
17
293200056
Деталь Rondelle *washer-3 Wave ( )
18
204130014
Деталь Rivet-pop 3/16 *rivet-pop 3/16 ( )
19
204100059
Деталь Rondelle-plate *washer-flat ( )
20
208561660
Деталь Screw-ctsk.ov.hd.ph.din.966a-a2 ( )
21
293800060
Деталь Loctite 243
23
204610277
Деталь Base Siege *base-seat ( )
30
207065060
Деталь Screw-hex.cap Din.931a2 ( )
33
207163560
Деталь Screw-hex.cap Din.933a2 ( )
34
234062600
Деталь Washer-flat Din.9021b-a2 ( )
35
204610375
Деталь Protect.avant *protector-front ( )
36
204610376
Деталь Protect.arriere*protector-rear ( )
37
293730006
Деталь Dard Noir *dart-black ( )
38
413705800
Деталь Loctite 414 *loctite-414 ( )
39
293550010
Деталь Graisse Synth. *grease-synth. ( )
