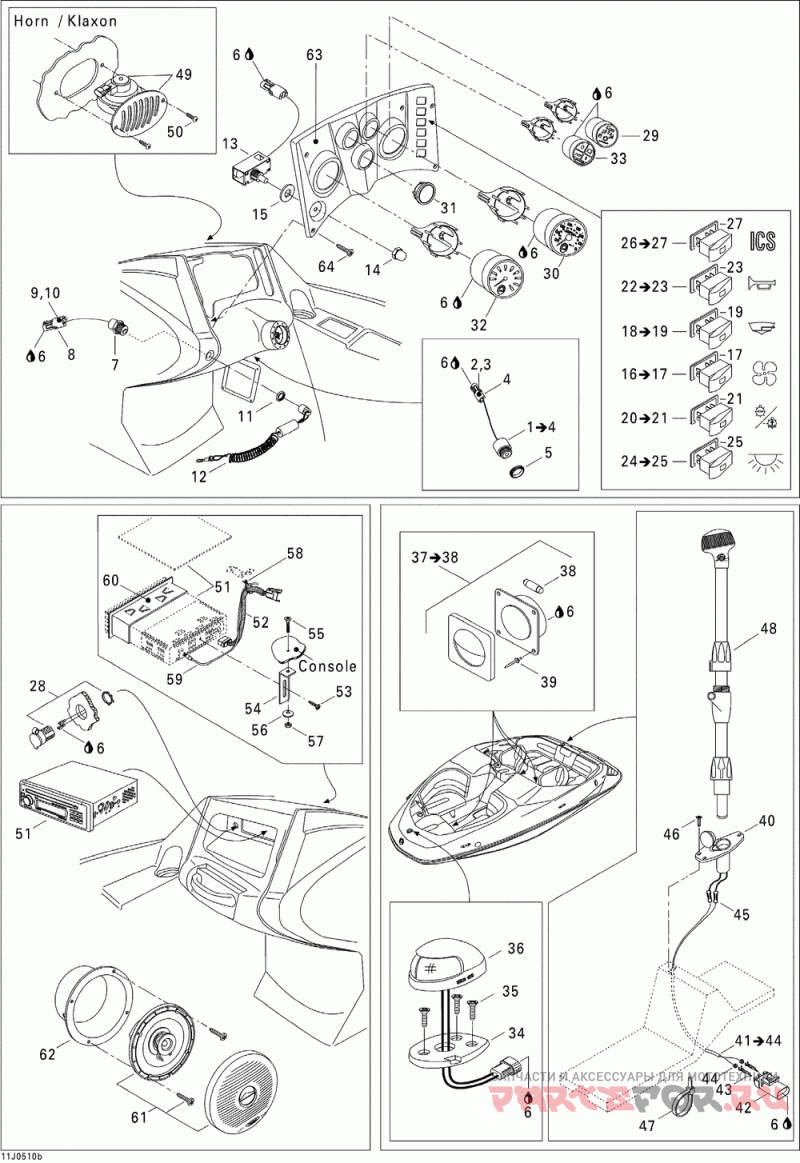

Электрика 2

Sea-Doo (Bombardier) Challenger 180 4-TEC SCIC

Sea-Doo (Bombardier)
#oem кодцена
1
204470913
Avertisseur Ass*buzzer-assy. (includes 1 To 4 )
2
278000222
Cosse Male *terminal-male ( )
3
278000218
Joint De Fil *seal-wire ( )
4
278000217
Bloc 2 Circ.fem*housing-tab(f) ( )
5
278000707
Ecrou Avert. *nut-horn ( )
6
293550004
Graisse Dielect*grease-dielect Dc4 ( )
7
278002325
Interrupteur *safety Switch ( )
8
278000273
Bloc 3 Circ.mal*housing-tab ( )
10
278000223
Cosse Femelle *terminal-femal ( )
11
278000508
Ecrou Securite *nut-saf.switch ( )
12
278002199
Cordon Securite*safety Lanyard ( )
13
278000621
Inter.allum.ga.*switch-ignit. ( )
14
278000565
Capuchon Demar.*cap-igni.start ( )
15
204100027
Rondelle Plate *washer-flat ( )
16
204470011
Inter.vent. *switch-fan (includes 16 To 17 )
29
204470985
Cadran Essen.*gauge-fuel ( )
30
204470986
Cadran Vitesse*gauge-speedo ( )
31
204470987
Capuch. Jauge*cap-gauge ( )
32
204470988
Cadran Tachy.*gauge-tachometer ( )
33
204470989
Cadran Avert*gauge-warning/engine ( )
34
204470072
Supp.phare Av. *supp-lamp Front ( )
35
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
36
204470372
Phare Avant *lamp-front/chrome ( )
37
204470026
Lum.courtoisie *light-courtesy (includes 37 To 38 )
38
204470081
Ampoule *bulb ( )
39
293150032
Rivet-pop 1/8 *rivet-pop 1/8 ( )
40
204470990
Base Phare *base-lamp Rear ( )
41
204470980
Cablage-lumiere*harness-light/rear (includes 41 To 44 )
46
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
47
293750002
Tie Rap 142mm *tie-rap 142mm ( )
48
204470979
Pole Phare *pole-lamp/rear ( )
49
204470801
Klaxon *horn ( )
53
204100148
Screw-pan Hd.ph. M5x8 ( )
54
204470981
Support Radio *support-radio ( )
55
208462060
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
56
234062600
Washer-flat Din.9021b-a2 ( )
57
232561600
Nut-stop Elastic Din.985-a2 ( )
58
204130098
Tie Rap / Dard*tie Rap W/dart ( )
59
204470931
Antenne *antenna ( )
60
204471010
Bague Assiette*ring-trim/stereo ( )
62
204470982
Couv.haut Parl.*cover-speaker Assy ( )
64
209941960
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
