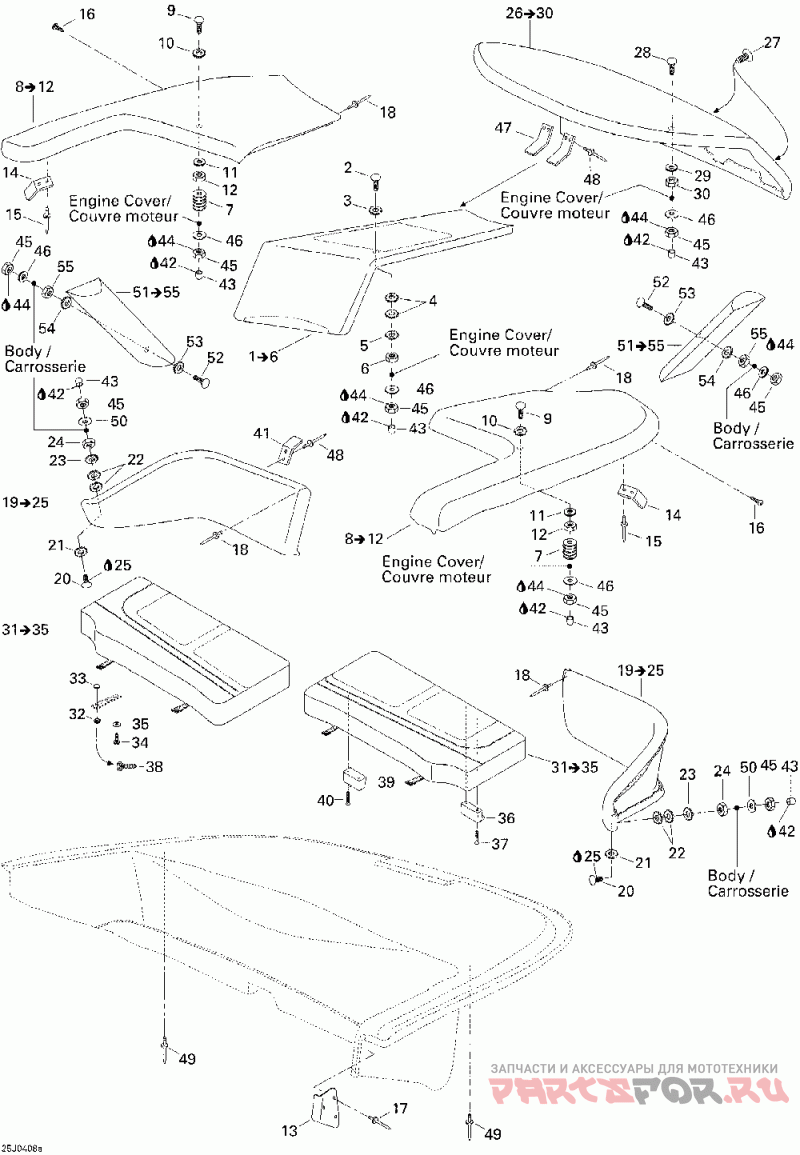

09- seat (rear seat)

Sea-Doo (Bombardier) Utopia 205

Sea-Doo (Bombardier)
#oem кодцена
3
211200054
Шайба стопорная Din.6797a-a2
4
234381608
Шайба стопорная Din.6797a-a2
5
234461608
Washer-lock Serrated Din.6798a-a2
6
204100060
Nut-jam Hexagonal 1/4-20 Ss
7
211200029
Washer-flat Plastic
9
204100088
"bolt-elevator 1/4-20 X 1 1/4"" Ss"
13
204611599
Bouch.garnit. *cap-upholstery
13
204611600
Bouch.garnit. *cap-upholstery
14
204130029
Pince Fendue*clip-keyhole/slotted
15
293150006
Заклепка
16
211000021
Винт
17
293150037
Заклепка 3/16
18
293150013
Заклепка 3/16
19
204612786
Doss.platef.*backrest-sundeck Includes 19 To 25
20
204000130
Bolt-elevator
25
293800060
Фиксатор резьбы loctite-243
26
204611836
Coussin-platef.*cushion-sundeck Rr Includes 26 To 30
27
293730006
Пистон черный
28
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2"""
31
204612771
Coussin Assem.*cushion Assy/port Includes 31 To 35
31
204612772
Coussin Assem.*cushion Assy/stbd. Includes 31 To 35
32
204000083
Att.press.base *snap-base
33
204611609
Att.press.couv.*snap-cover
34
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
35
211200019
Washer-flat 1/4 Ss-316
36
204611940
Loq.base Siege*catch-seat Base
37
204100120
Screw-tapp.pan Hd.ph. #14x2 Ss
38
202000159
"screw-stud Tapp. 3/8"" Ss"
39
204611805
Loquet Base*catch-seat Base
40
204100081
"screw-pan Hd.#8 X 1 1/4"" Ss"
41
204611531
Pince-retenue *clip-retaining
42
413705800
Loctite 414 *loctite-414
43
204130008
Bouchon-plast.*cap-plastic/white
45
211100026
Nut-hexagonal 1/4-20
46
204100089
Rondel.plate *washer-flat
47
204611597
Plaque-platef. *plate-sundeck
48
293150008
Заклепка 3/16
49
293150011
Заклепка 3/16
50
204100139
Washer-fender/s.s.
