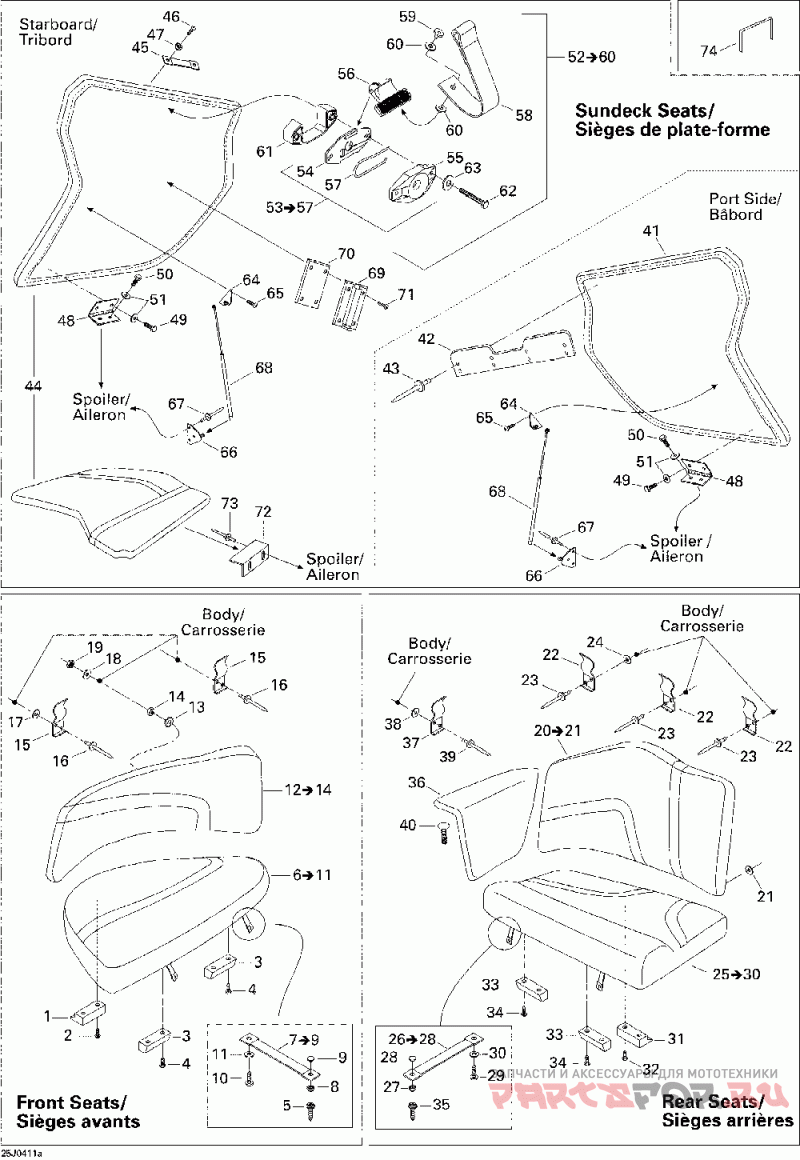

Сидения (перед и зад.)

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC, 2nd edition

Sea-Doo (Bombardier)
#oem кодцена
1
204611940
Loq.base Siege*catch-seat Base
2
204100120
Screw-tapp.pan Hd.ph. #14x2 Ss
3
204611805
Loquet Base*catch-seat Base
4
204100081
"screw-pan Hd.#8 X 1 1/4"" Ss"
5
202000159
"screw-stud Tapp. 3/8"" Ss"
6
204612973
Siege Avant Ass*seat-front Assy. Includes 6 To 11 / Red
6
204613011
Siege Avant Ass*seat-front Assy. Includes 6 To 11 / Blue
6
204612979
Siege Avant Ass.*seat-front Assy. Includes 6 To 11 / Red
6
204613014
Siege Avant Ass.*seat-front Assy. Includes 6 To 11 / Blue
8
204000083
Att.press.base *snap-base
9
204611609
Att.press.couv.*snap-cover
10
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
11
211200019
Washer-flat 1/4 Ss-316
12
204612975
Dossier Ass.*backrest Assy. Includes 12 To 14 / Red
12
204613012
Dossier Ass.*backrest Assy. Includes 12 To 14 / Blue
12
204612977
Dossier Ass.*backrest Assy. Includes 12 To 14 / Red
12
204613013
Dossier Ass.*backrest Assy. Includes 12 To 14 / Blue
13
234461608
Washer-lock Serrated Din.6798a-a2
14
204100060
Nut-jam Hexagonal 1/4-20 Ss
15
204610288
Support Siege *support-seat
16
293150043
Заклепка 3/16
17
234052400
Washer-flat Din.7349
18
204100139
Washer-fender/s.s.
19
211100026
Nut-hexagonal 1/4-20
20
204612981
Dossier Arr.*backrest-rear/stbd. Includes 20 To 21 / Red
20
204613015
Dossier Arr.*backrest-rear/stbd. Includes 20 To 21 / Blue
20
204612983
Dossier Arr.*backrest-rear/port Includes 20 To 21 / Red
20
204613016
Dossier Arr.*backrest-rear/port Includes 20 To 21 / Blue
21
234062600
Шайба
25
204612985
Siege Arriere*seat-rear Assy/port Includes 25 To 30 / Red
25
204613017
Siege Arr.ass.*seat-rear Assy/port Includes 25 To 30 / Blue
25
204612987
Siege Arriere*seat-rear Assy/stbd. Includes 25 To 30 / Red
25
204613018
Siege Arr.ass.*seat-rear Assy/stbd. Includes 25 To 30 / Blue
36
204612989
Appui-bras *armrest/stbd.
36
204612991
Appui-bras *armrest-port
40
293730021
Dard *dart
41
204613004
Porte Platef.*door-sunpad Assy. Red
41
204613022
Porte Platef.*door-sunpad Assy. Blue
42
204612684
Plaque Reten.*plate-retainer
43
293150011
Заклепка 3/16
44
204613006
Porte Platef.*door-sunpad Assy. Red
44
204613023
Porte Platef.*door-sunpad Assy. Blue
45
204612685
Housse Boucle*cover-loop
46
204100049
"screw-tapp.ctsk.fl.hd.ph.#8 X 1"""
47
204100057
Rondelle-finit.*washer-finishing
48
204612769
Charn.platef.*hinge-sundeck
49
204100134
"screw-hex 1/4""-20 X 3/4"""
50
204100137
"screw-hex 1/4""-20 X 1/2"""
51
234061600
Шайба
53
204070577
Loquet Ass. *latch Assy-rework Includes 53 To 57
54
269700076
Couv.loquet *cover-latch
55
269700109
Loquet Assemble*latch Ass Y
56
269700077
Levier Loquet *lever-latch
57
269700017
Ressort Loquet *spring-latch
58
204612642
Courroie *strap
59
293150039
Заклепка 3/16
60
234052600
Шайба
61
269700015
Пластина
62
204100141
Bolt-hex.tap 1 3/4 X 1/4-20
64
204071700
Supp.amort.*bracket-shock/angled
65
204100073
"screw-pan Hd.#10 X 5/8"" Ss"
66
204071673
Supp.amort.*bracket-shock/flat
68
204071874
Amortisseur*shock-gas
69
204612641
Loquet Gliss.*latch-slide
70
204612664
Cale Loquet*shim-latch
71
204100082
"screw-tapp.ctsk.fl.hd.#6 X 1"" Ss"
72
204070060
Gache *keeper
